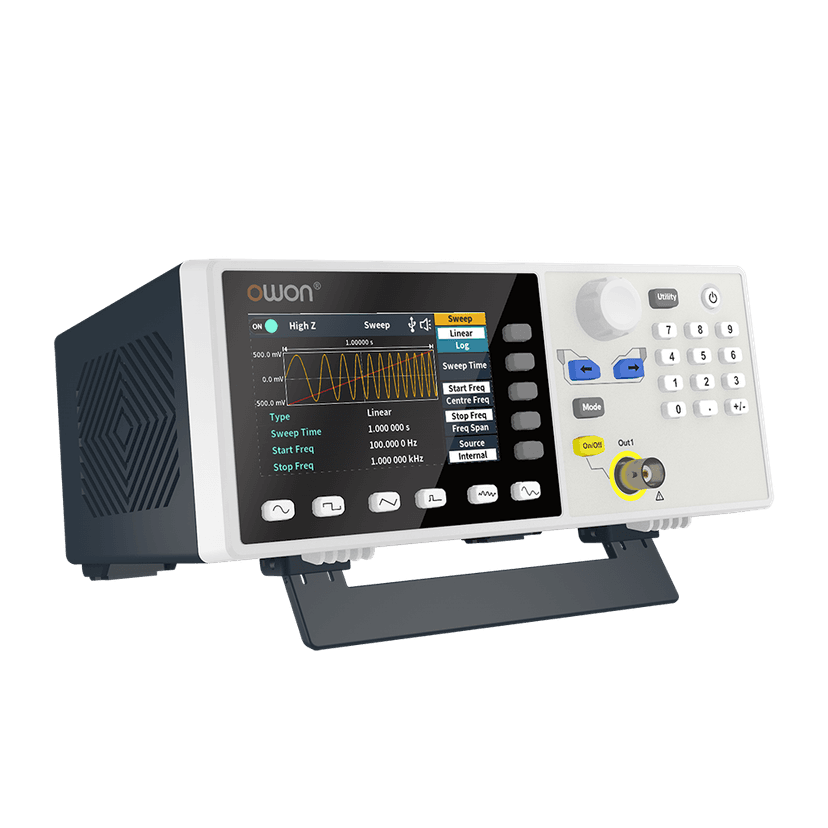

DGE3000 Series 1CH Waveform Generator
- 30 MHz or 60 MHz maximum frequency output
- Up to 300 MSa/s sampling rate
- 14-bit vertical resolution
- Frequency resolution as fine as 1 μHz
- Single-channel output
- Up to 100K-point arbitrary waveform length
- 160 built-in arbitrary waveforms
- Five standard waveforms: sine, square, pulse, ramp, and noise
- Comprehensive AM, FM, PM, PWM, FSK, PSK, ASK, BPSK, QPSK and other modulation functions
- Sweep and Burst functions
- Built-in frequency counter
- External modulation, trigger, and reference clock interfaces
- USB Host and USB Device connectivity
- SCPI support for remote control and system integration
- Compact 3.6-inch LCD display
The DGE3000 Series includes the DGE3031 and DGE3061 models, providing maximum frequency outputs of 30 MHz and 60 MHz respectively. The generators feature 14-bit vertical resolution and frequency resolution down to 1 μHz, allowing precise signal configuration across a broad frequency range. Standard waveforms include sine, square, pulse, ramp, and noise, while the built-in arbitrary waveform library provides 160 waveform types. Arbitrary waveform lengths can range from 2 points to 100K points. The series supports a wide selection of modulation modes including AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSB-AM, QPSK, SUM, Sweep, and Burst. SCPI support and USB Host/Device interfaces enable remote control, automation, and secondary development.
| Models | Available Models | DGE3031, DGE3061 |
| Channels | Number of Channels | 1 |
| Performance | Maximum Frequency Output | 30 MHz (DGE3031) / 60 MHz (DGE3061) |
| Sample Rate | 125 MSa/s (DGE3031) / 300 MSa/s (DGE3061) | |
| Vertical Resolution | 14 bits | |
| Frequency Resolution | 1 μHz | |
| Waveforms | Standard Waveforms | Sine, Square, Pulse, Ramp, Noise |
| Built-in Arbitrary Waveforms | 160 waveforms | |
| Arbitrary Waveform Frequency | 1 μHz to 10 MHz | |
| Arbitrary Waveform Length | 2 points to 100K points | |
| Noise Bandwidth | 20 MHz (-3 dB, typical) | |
| Frequency | Sine Frequency Range | 1 μHz to 30 MHz / 60 MHz |
| Square Frequency Range | 1 μHz to 15 MHz / 20 MHz | |
| Pulse Frequency Range | 1 μHz to 15 MHz / 20 MHz | |
| Ramp Frequency Range | 1 μHz to 1 MHz / 2 MHz | |
| Amplitude | Output Amplitude | 1 mVpp to 10 Vpp at ≤10 Hz; 1 mVpp to 5 Vpp at ≤60 MHz into 50 Ω |
| Modulation | Modulation Types | AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSB-AM, QPSK, SUM, Sweep, Burst |
| Measurement | Frequency Counter | Frequency and period measurement |
| Frequency Counter Range | 100 mHz to 200 MHz | |
| Frequency Counter Resolution | 6 digits | |
| Input/Output | External Inputs/Outputs | External modulation input, external trigger input, external reference clock input/output |
| Connectivity | Communication Interface | USB Host, USB Device |
| Control | Remote Control | SCPI supported |
| Display | Display | 3.6-inch LCD, 480 × 260 pixels |
| Mechanical | Dimensions | 200 × 92 × 157 mm |
| Weight | Weight | Approximately 0.8 kg |
