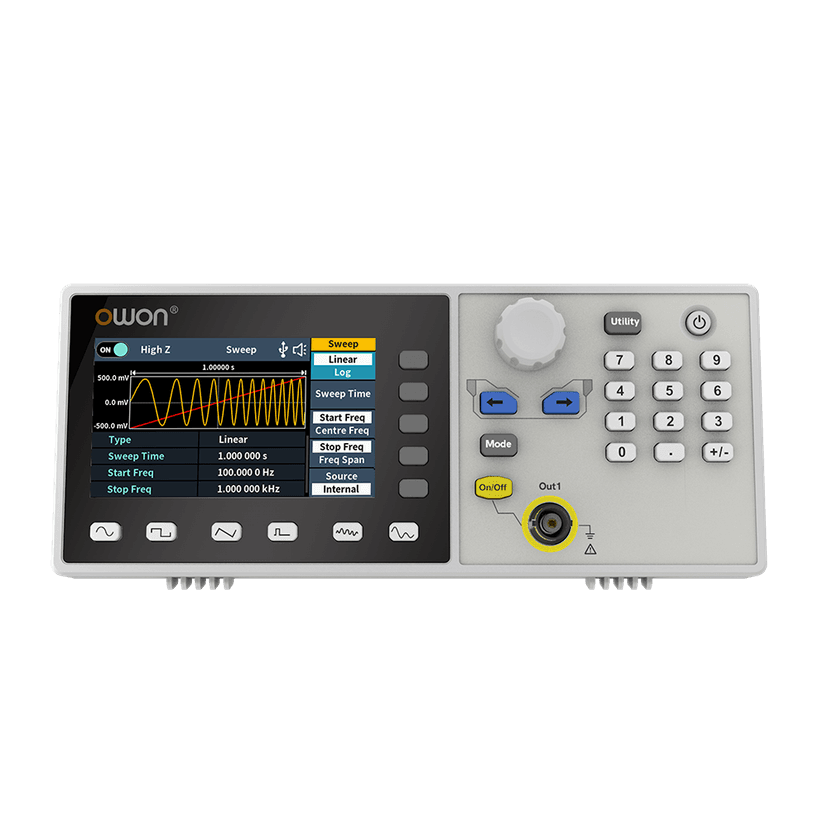

DGE1000 Series 1CH Waveform Generator
- 35 MHz or 60 MHz maximum frequency output
- Up to 300 MSa/s sampling rate
- 14-bit vertical resolution
- Frequency resolution down to 1 μHz or 7 significant figures
- Single-channel output
- 2–8K point arbitrary waveform length
- 150 built-in arbitrary waveforms
- User-defined arbitrary waveform support
- Five standard waveforms: sine, square, pulse, ramp, and noise
- AM, FM, PM, FSK, Sweep, and Burst modulation
- Internal modulation frequency from 2 mHz to 100 kHz
- USB Device connectivity
- SCPI support for remote control and automation
- Compact 3.6-inch TFT LCD display
The DGE1000 Series includes the DGE1030 and DGE1060 models, providing 35 MHz and 60 MHz maximum frequency outputs respectively. The generators feature 14-bit vertical resolution and frequency resolution as fine as 1 μHz or 7 significant figures. Five standard waveforms are supported: sine, square, pulse, ramp, and noise. The built-in arbitrary waveform library contains 150 waveform types, including exponential rise, exponential fall, sin(x)/x, and step waveforms, while user-defined arbitrary waveforms are also supported. Arbitrary waveform length ranges from 2 to 8K points. The series supports AM, FM, PM, FSK, Sweep, and Burst modulation, with internal modulation frequencies from 2 mHz to 100 kHz. USB Device connectivity and SCPI support make the instruments suitable for computer-controlled testing and automated measurement systems.
| Models | Available Models | DGE1030, DGE1060 |
| Channels | Number of Channels | 1 |
| Performance | Maximum Frequency Output | 35 MHz (DGE1030) / 60 MHz (DGE1060) |
| Sample Rate | 125 MSa/s (DGE1030) / 300 MSa/s (DGE1060) | |
| Vertical Resolution | 14 bits | |
| Frequency Resolution | 1 μHz or 7 significant figures | |
| Waveforms | Standard Waveforms | Sine, Square, Pulse, Ramp, Noise |
| Built-in Arbitrary Waveforms | 150 waveforms | |
| User-defined Arbitrary Waveforms | Supported | |
| Arbitrary Waveform Frequency | 1 μHz to 10 MHz | |
| Arbitrary Waveform Length | 2–8K points | |
| Noise Bandwidth | 20 MHz (-3 dB, typical) | |
| Frequency | Sine Frequency Range | 1 μHz to 30 MHz / 60 MHz |
| Square Frequency Range | 1 μHz to 15 MHz / 20 MHz | |
| Pulse Frequency Range | 1 μHz to 15 MHz / 20 MHz | |
| Ramp Frequency Range | 1 μHz to 1 MHz / 2 MHz | |
| Amplitude | Output Amplitude | 1 mVpp to 10 Vpp at ≤10 MHz; 1 mVpp to 4 Vpp at ≤60 MHz into 50 Ω |
| Modulation | Modulation Types | AM, FM, PM, FSK, Sweep, Burst |
| Internal Modulation Frequency | 2 mHz to 100 kHz | |
| Carrier Frequency | 1 μHz ≤ Offset ≤ maximum frequency of the corresponding carrier / 2 | |
| Connectivity | Communication Interface | USB Device |
| Control | Remote Control | SCPI supported |
| Display | Display | 3.6-inch TFT LCD, 480 × 272 pixels |
| Mechanical | Dimensions | 200 × 68.5 × 74.5 mm |
| Weight | Weight | Approximately 0.5 kg |
