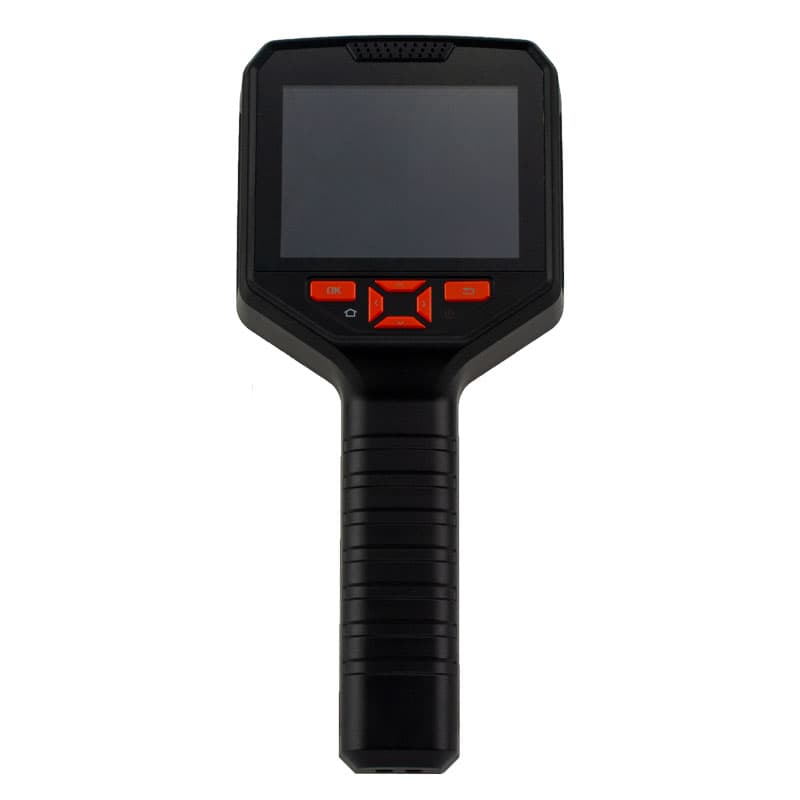

TI300 Series Handheld Thermal Imaging Camera
- Infrared thermal imaging with up to 320×240 resolution
- TI322 model with 220×160 infrared resolution
- Three fusion modes combining visible and infrared images
- Three image enhancement modes
- Customizable high- and low-temperature alarms
- Multiple temperature measurement methods
- Five color palettes: Black Hot, White Hot, Rainbow, Iron, Enhanced Iron
- Internal memory for storing up to 20,000 images
- Temperature measurement range up to 450°C
- Adjustable emissivity from 0.01 to 0.99
- Three-image storage for multi-view analysis
- 3.5-inch IPS full-color display
- USB Type-C communication and charging
- Optional 2.4G Wi-Fi transmission for computer connection
- Built-in 5000mAh Li-ion battery
- LED flashlight
- PC analysis software for professional applications
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OWON TI300 Series Handheld Thermal Imaging Camera is designed for thermal inspection and analysis. It provides infrared imaging with either 220×160 or 320×240 resolution, a 9Hz frame rate, and multiple image presentation options. Users can select from Black Hot, White Hot, Rainbow, Iron, and Enhanced Iron color palettes and use fusion and enhancement modes to improve thermal visualization. The camera supports customizable high- and low-temperature alarms and adjustable emissivity from 0.01 to 0.99. Images can be stored internally and transferred through USB Type-C, while optional Wi-Fi supports 2.4G transmission for computer connection.
Specifications
| Models | Models | TI322, TI332 |
| Imaging | Infrared Resolution | TI322: 220×160; TI332: 320×240 |
| Frame Rate | 9Hz | |
| Image Fusion | Three fusion modes combining visible and infrared images | |
| Image Enhancement | Three image enhancement modes | |
| Optics | Lens | 6.5mm Prime Lens |
| Field of View | TI322: H 35° / V 26°; TI332: H 56° / V 42° | |
| Horizontal Field of View | 66° | |
| Lighting | Light | LED Light (Flashlight) |
| Temperature | Temperature Measurement Accuracy | ±2°C for ambient temperature -20°C to +450°C |
| Temperature Measurement Range | TI322: -20°C to +350°C | |
| Emissivity | 0.01-0.99; default value 0.95 | |
| Measurement | Temperature Alarms | Customizable high- and low-temperature limit alarms |
| Measurement Methods | Multiple temperature measurement methods | |
| Color Palettes | Color Palettes | Black Hot, White Hot, Rainbow, Iron, Enhanced Iron |
| Storage | Internal Storage | 8GB eMMC internal flash memory |
| Image Storage | Up to 20,000 images | |
| Image Capture | Three-image storage for multi-view analysis | |
| Wireless | Wi-Fi | Optional 2.4G transmission for computer connection |
| Interface | Communication and Charging | USB Type-C |
| Battery | Battery | Built-in 5000mAh Li-ion battery |
| Battery Life | Approximately 4 hours after full charge | |
| Display | Display | 3.5-inch IPS full-color display |
| Mechanical | Handheld Lanyard | Supported |
| Weight | Approximately 500g |
