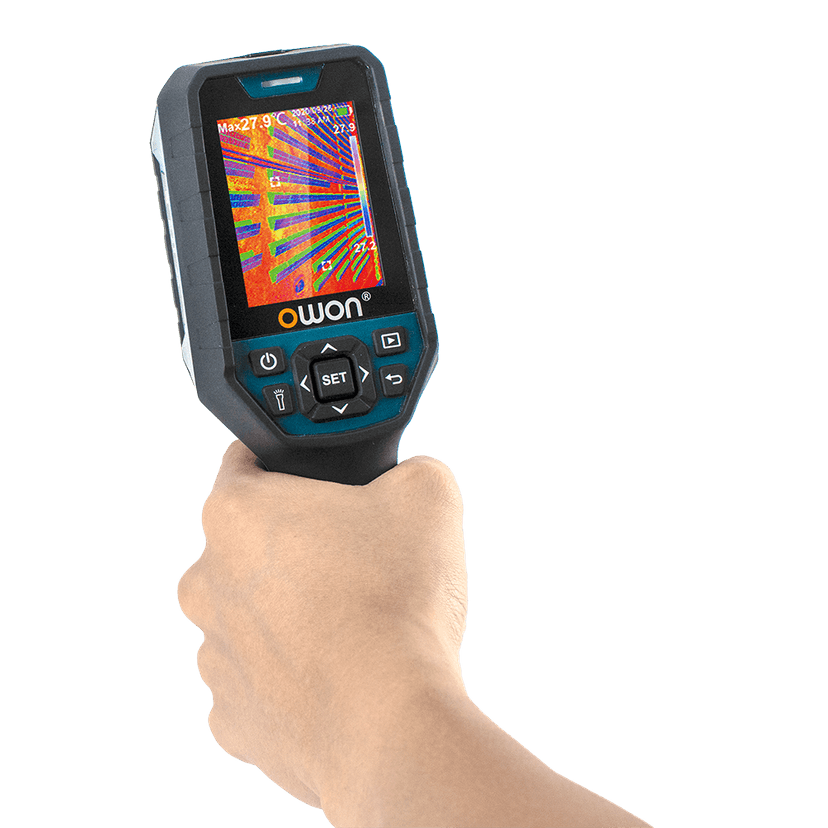

TI219 Handheld Thermal Imaging Camera
- Temperature measurement range from -20°C to 400°C
- 120×90 infrared sensor resolution
- Accuracy of ±2°C or ±2%, whichever is greater
- 0.1°C temperature resolution
- Adjustable emissivity from 0.1 to 0.99
- Automatic gain mode
- Best measurement distance of 50cm
- Temperature measurement response time of ≤500ms
- Thermal imaging sensitivity of ≤60mK
- Frame rate up to 25Hz
- Main area (ROI), central point, and high/low temperature tracking
- Five color palettes: Iron Red, Rainbow, White Heat, Black Heat, Red Heat
- Visible-light camera with 640×480 resolution
- Thermal imaging, digital camera, and integration image modes
- High-temperature image, LED, and buzzer alarms
- IP65 protection rating
- Drop resistance up to 2m
- Real-time image transmission support
- PC analysis software for infrared image reports
- Built-in rechargeable 3.7V/5000mAh Li-ion battery
- USB Type-C communication
- 2.8-inch TFT LCD with 320×240 resolution
The TI219 Handheld Thermal Imaging Camera combines infrared thermal imaging and visible-light imaging in a portable instrument. It measures temperatures from -20°C to 400°C with an accuracy of ±2°C or ±2%, whichever is greater, over the specified measurement range. The camera provides 0.1°C temperature resolution, automatic gain control, adjustable emissivity from 0.1 to 0.99, and a best measurement distance of 50cm. Temperature analysis includes ROI measurement, central point measurement, and high- and low-temperature tracking. For field inspection, the TI219 provides multiple thermal color palettes, a visible-light camera, image alarms, LED alerts, and buzzer alarms. USB Type-C communication enables data transfer and real-time image transmission, while PC analysis software supports infrared image report generation and post-processing.
| Model | Model | TI219 |
| Imaging | Infrared Sensor Resolution | 120×90 |
| Thermal Imaging Sensitivity | ≤60mK | |
| Frame Rate | ≤25Hz | |
| Color Palettes | Iron Red, Rainbow, White Heat, Black Heat, Red Heat | |
| Image Modes | Thermal imaging, digital camera, integration | |
| Temperature | Temperature Measurement Range | -20°C to 400°C |
| Accuracy | ±2°C or ±2%, whichever is greater | |
| Temperature Resolution | 0.1°C | |
| Measurement Mode | Automatic gain | |
| Best Measurement Distance | 50cm | |
| Measurement Response Time | ≤500ms | |
| Emissivity | 0.1-0.99; default 0.95 | |
| Optics | Pixel Size | 17μm |
| Infrared Spectral Bandwidth | 8-14μm | |
| Thermal Field of View | 50° (H) × 38° (V) | |
| Instantaneous Field of View | 7.3mrad | |
| Measurement | Temperature Measurement Functions | Main area temperature measurement (ROI), central point temperature measurement, high and low temperature tracking |
| Visible Camera | Visible-Light Resolution | 640×480 |
| Visible-Light Field of View | 81° | |
| Storage | Image Format | BMP |
| Alarm | Temperature Alarm | Image alarm, LED alarm, and buzzer alarm |
| Power | Battery | Li-ion 3.7V/5000mAh rechargeable battery |
| Interface | Data Communication | USB Type-C |
| Display | Display | 2.8-inch TFT LCD, 320×240 |
| Protection | Protection | IP65 |
| Durability | Drop Resistance | Up to 2m |
| Power Management | Auto Shut-Off | Optional: 5min, 10min, 30min, or Off; default 30min |
