Spectrum Analyzer Module

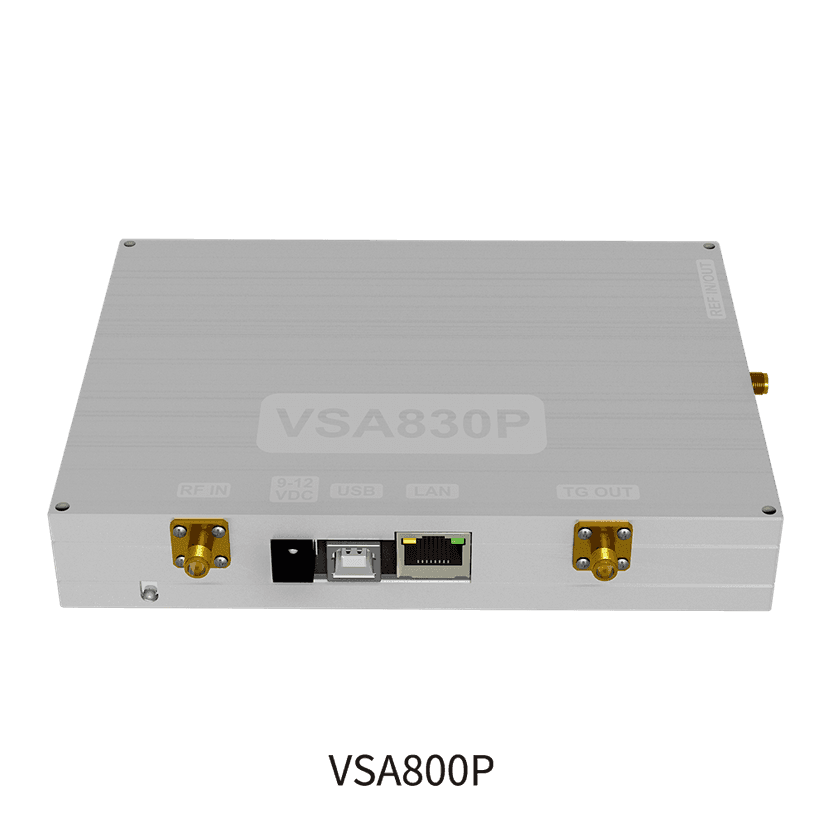

VSA-P Series Spectrum Analyzer Module
- Spectrum analyzer frequency range up to 8GHz depending on model
- DANL as low as -160dBm
- SSB phase noise as low as -106dBc/Hz at 1GHz with 10kHz offset
- Optional built-in bridge on VSA1036P for S11/S21 vector network analysis
- Optional EMI pre-compliance testing with EMC software
- Optional tracking generator
- USB communication with USBTMC support
- LAN communication with VXI-11, TCP, and Web support
- Standard SCPI command support
- Companion PC software with comprehensive measurement capabilities
- Cross-platform development support including C, C++, C#, Java, and Python
- Supports microcontrollers and ARM/x86 processors
- Compatible with Kylin Linux, Ubuntu, other Linux distributions, Windows, and Android systems
- Compact design for easy system integration
- Single power supply for convenient integration
- Frequency resolution down to 1Hz
- Maximum input DC voltage: 50V
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OWON VSA-P Series is a compact superheterodyne digital IF-based receiver and spectrum analyzer module integrating USB 2.0 and LAN interfaces with high-speed FPGA signal processing. It provides spectrum data, power detection waveforms, and modulated signal analysis for spectrum monitoring, RF testing, and receiver applications. The series supports standard SCPI commands and companion software for system integration. Depending on the model and options, the module supports spectrum analysis from 9kHz to 8GHz, optional tracking generation, and an optional built-in bridge on the VSA1036P for S11/S21 vector network analysis.
Available models
| Model | Current | Input Voltage | Weight | Built-in Bridge | DANL | Phase Noise @ 10kHz | Tracking Generator | Spectrum Range | Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| VSA815P (TG) | 0.8A at +12V | +9V ~ +12V | Approx. 0.8kg | — | Typical -160dBm in 1MHz ~ 500MHz range | <-106dBc/Hz | 100kHz ~ 1.6GHz | 9kHz ~ 1.5GHz | 145 × 120 × 30mm |
| VSA836P (TG) | 0.8A at +12V | +9V ~ +12V | Approx. 0.8kg | — | Typical -160dBm in 1MHz ~ 500MHz range | <-106dBc/Hz | 100kHz ~ 3.6GHz | 9kHz ~ 3.6GHz | 145 × 120 × 30mm |
| VSA1036P (TG) | 1.5A at +5.2V | +5.2V ~ +5.4V | — | Optional S11/S21 vector network analysis | Typical -160dBm in 1MHz ~ 500MHz range | <-98dBc/Hz | 100kHz ~ 3.6GHz | 9kHz ~ 3.6GHz | — |
| VSA880P (TG) | 0.9A at +12V | +9V ~ +12V | Approx. 0.8kg | — | Typical -160dBm in 1MHz ~ 500MHz; -154dBm at 3.6GHz ~ 6GHz; -149dBm at 6GHz ~ 8GHz | <-106dBc/Hz | 100kHz ~ 8.0GHz | 9kHz ~ 8GHz | 145 × 120 × 30mm |
Specifications
| Models | Available Models | VSA815P (TG), VSA836P (TG), VSA1036P (TG), VSA880P (TG) |
| Frequency | Spectrum Frequency Range | 9kHz ~ 1.5GHz / 9kHz ~ 3.6GHz / 9kHz ~ 8GHz, depending on model |
| Frequency Resolution | 1Hz | |
| Frequency Span | 0Hz, 100Hz to maximum frequency of the instrument | |
| Spectrum Analysis | Resolution Bandwidth | 1Hz ~ 1MHz |
| Video Bandwidth | 10Hz ~ 1MHz | |
| Maximum Input DC | 50V | |
| Noise Performance | DANL | As low as -160dBm typical, depending on frequency range and model |
| SSB Phase Noise | As low as <-106dBc/Hz at 10kHz offset, fc=1GHz | |
| Amplitude | Frequency Response | Preamp Off: <0.7dB; Preamp On: 1.0dB |
| Tracking Generator | Tracking Generator | Optional; up to 8GHz depending on model |
| Communication | Communication Ports | USB Device, LAN |
| Power | Input Voltage | +9V ~ +12V, or +5.2V ~ +5.4V depending on model |
| Mechanical | Dimensions | Approximately 143/145 × 43/120 × 30/34.2mm depending on model |
| Weight | Approximately 0.5kg ~ 0.8kg depending on model |
