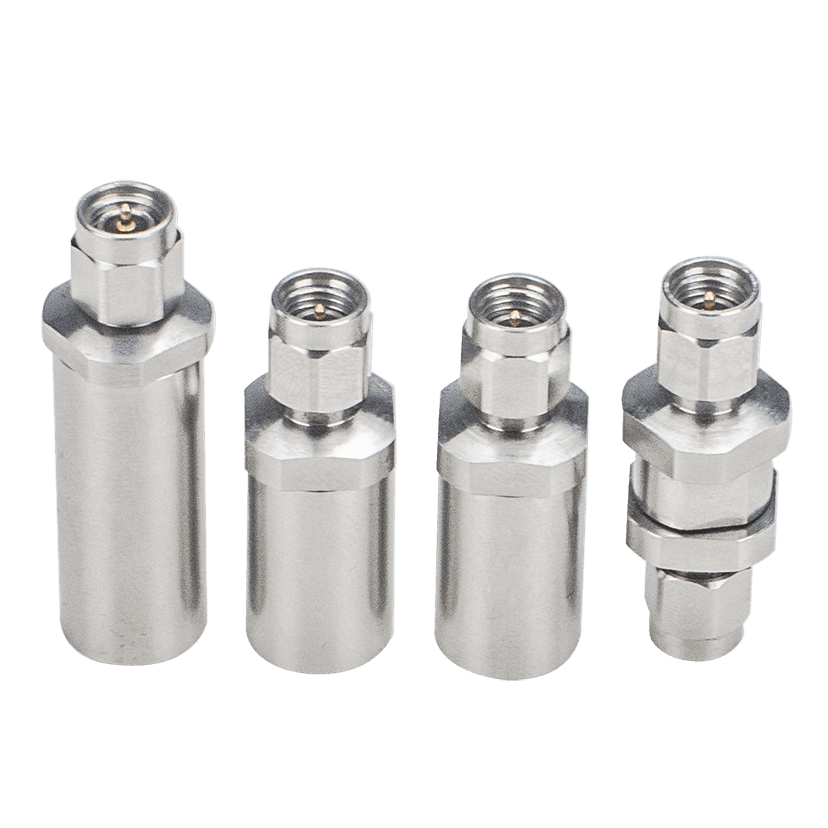

CF6000 Series Network Analyzer Calibration Kit
- Designed for measurement applications involving 3.5mm connectors
- Compatible with correction parameters of the 85052D standard
- Available in 6GHz and 9GHz frequency versions
- Available with 3.5mm male and female connector configurations
- 50Ω characteristic impedance
- Average power rating up to 0.5W
- More than 500 mating cycles
- 0.9Nm mating torque
- Open, short, and load termination components
- Open termination phase deviation ≤ ±2°
- Low VSWR load termination
- Beryllium bronze and silicon bronze inner conductor with gold plating
- Stainless steel, gold-plated outer conductor
- Stainless steel body
- Operating temperature: 15℃ to 35℃
- Storage temperature: -40℃ to 75℃
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OWON CF6000 Series Network Analyzer Calibration Kit is designed for measurement applications involving components with 3.5mm connectors. It can be used with the correction parameters of the 85052D standard. The series includes CF6506-F, CF6509-F, CF6506-M, and CF6509-M models, covering frequency ranges from DC to 6GHz or DC to 9GHz. The calibration components include open termination, short termination, and load termination. The kit features a 50Ω characteristic impedance, an average power rating of up to 0.5W, and more than 500 mating cycles.
Available models
| Model | Load VSWR | Dimensions | Frequency Range | Connector Type |
|---|---|---|---|---|
| CF6506-F | ≤1.03 | 33 × 12mm (L × D) | DC ~ 6GHz | 3.5mm (Male) |
| CF6509-F | ≤1.04 | 33 × 12mm (L × D) | DC ~ 9GHz | 3.5mm (Female) |
| CF6506-M | ≤1.03 | 34 × 12mm (L × D) | DC ~ 6GHz | 3.5mm (Male) |
| CF6509-M | ≤1.04 | 34 × 12mm (L × D) | DC ~ 9GHz | 3.5mm (Male) |
Specifications
| Models | Available Models | CF6506-F, CF6509-F, CF6506-M, CF6509-M |
| Connector | Connector Type | 3.5mm (Female) / 3.5mm (Male), depending on model |
| Frequency | Frequency Range | DC ~ 6GHz / DC ~ 9GHz, depending on model |
| Electrical | Characteristic Impedance | 50Ω |
| Average Power | ≤0.5W | |
| Mechanical | Mating Cycles | >500 times |
| Mating Torque | 0.9Nm | |
| Environmental | Operating Temperature | 15℃ ~ 35℃ |
| Storage Temperature | -40℃ ~ 75℃ | |
| Materials | Inner Conductor | Beryllium Bronze, Silicon Bronze, Gold-plated |
| Outer Conductor | Stainless Steel, Gold-plated | |
| Body | Stainless Steel | |
| Calibration | Components | Open Termination, Short Termination, Load Termination |
| Open Termination Phase Deviation | ≤ ±2° |
