Optional Accessories

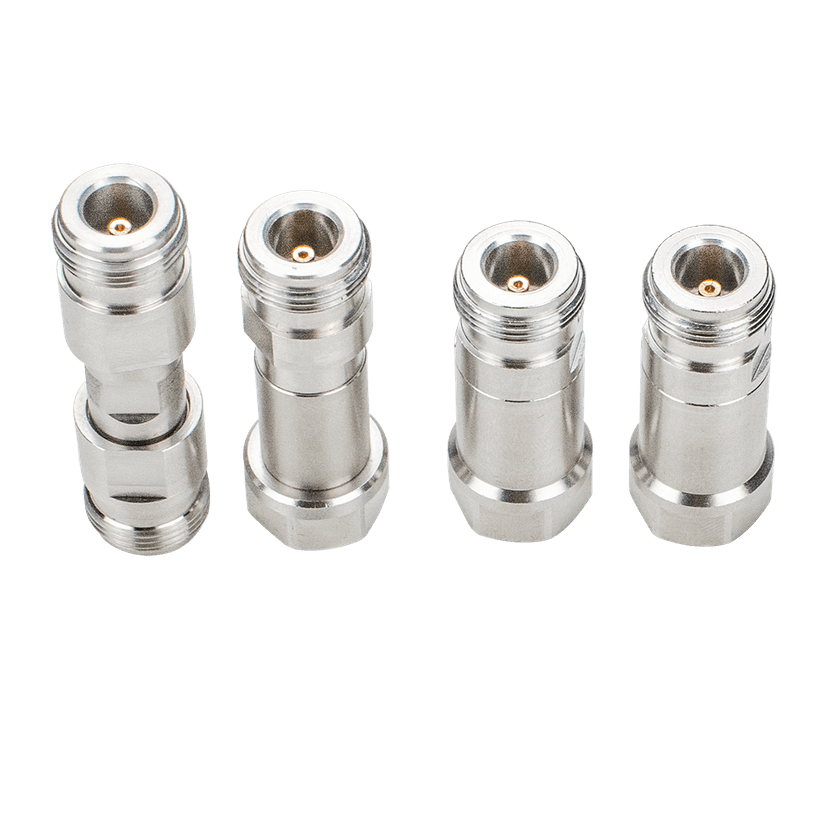

CF5000 Series Network Analyzer Calibration Kit
- Designed for measurement applications involving N-type connectors
- Compatible with correction parameters of the 85032F standard
- Available in 6GHz and 9GHz frequency versions
- Available with N-type female and male connector configurations
- 50Ω characteristic impedance
- Average power rating up to 0.5W
- More than 500 mating cycles
- 0.9Nm mating torque
- Open, short, and load termination components
- Open termination phase deviation ≤ ±2°
- Low VSWR load termination
- Beryllium bronze and silicon bronze inner conductor with gold plating
- Stainless steel, gold-plated outer conductor
- Stainless steel body
- Operating temperature: 15℃ to 35℃
- Storage temperature: -40℃ to 75℃
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OWON CF5000 Series Network Analyzer Calibration Kit is designed for measurement applications involving components with N-type connectors. It can be used with the correction parameters of the 85032F standard. The series includes CF5506-F, CF5509-F, CF5506-M, and CF5509-M models, covering frequency ranges from DC to 6GHz or DC to 9GHz. The calibration components include open termination, short termination, and load termination. The kit features a 50Ω characteristic impedance, an average power rating of up to 0.5W, and more than 500 mating cycles.
Available models
| Model | Load VSWR | Dimensions | Frequency Range | Connector Type |
|---|---|---|---|---|
| CF5506-F | ≤1.03 | 50 × 18mm (L × D) | DC ~ 6GHz | N Type (Female) |
| CF5509-F | ≤1.04 | 50 × 18mm (L × D) | DC ~ 9GHz | N Type (Female) |
| CF5506-M | ≤1.03 | 46 × 22mm (L × D) | DC ~ 6GHz | N Type (Male) |
| CF5509-M | ≤1.04 | 46 × 22mm (L × D) | DC ~ 9GHz | N Type (Male) |
Specifications
| Models | Available Models | CF5506-F, CF5509-F, CF5506-M, CF5509-M |
| Connector | Connector Type | N Type (Female) / N Type (Male), depending on model |
| Frequency | Frequency Range | DC ~ 6GHz / DC ~ 9GHz, depending on model |
| Electrical | Characteristic Impedance | 50Ω |
| Average Power | ≤0.5W | |
| Mechanical | Mating Cycles | >500 times |
| Mating Torque | 0.9Nm | |
| Environmental | Operating Temperature | 15℃ ~ 35℃ |
| Storage Temperature | -40℃ ~ 75℃ | |
| Materials | Inner Conductor | Beryllium Bronze, Silicon Bronze, Gold-plated |
| Outer Conductor | Stainless Steel, Gold-plated | |
| Body | Stainless Steel | |
| Calibration | Components | Open Termination, Short Termination, Load Termination |
| Open Termination Phase Deviation | ≤ ±2° |
