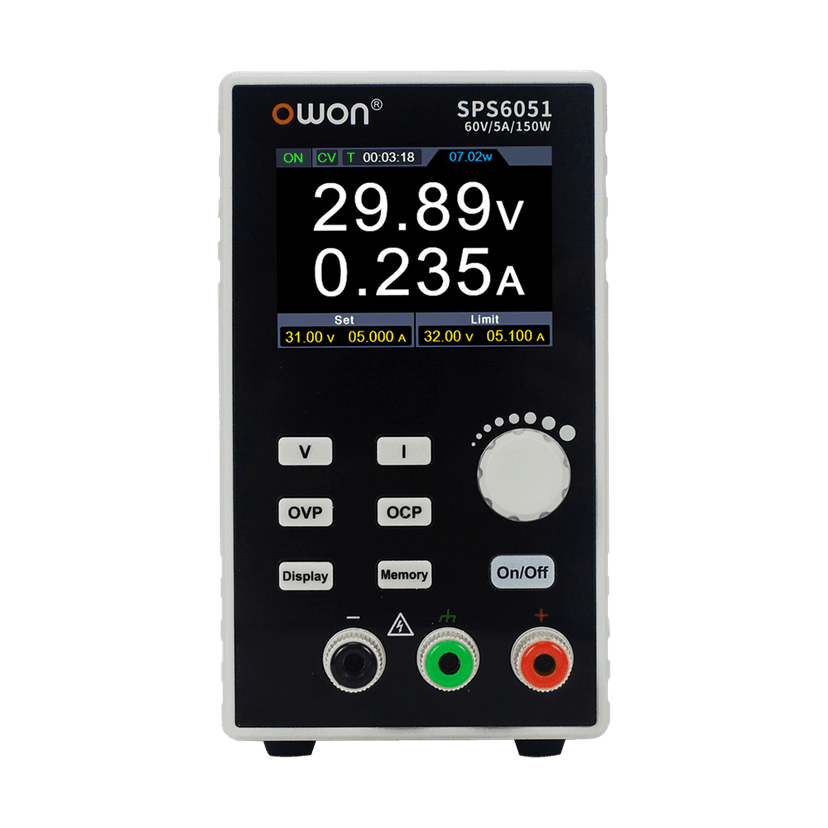

OWON SPS Fanless Single Channel Programmable DC Power Supply

  • Fanless design for ultra-quiet operation
  • Reduced vibration and cooling fan failure risks
  • Ultra-thin and lightweight design
  • Single-channel DC output
  • Up to 80V output voltage
  • Up to 8A output current
  • Up to 150W output power
  • 10mV voltage setting and readback resolution
  • 1mA current setting and readback resolution
  • High-precision voltage and current control
  • CV constant voltage mode
  • CC constant current mode
  • Programmable list waveform editing and output
  • 4 groups of memory shortcut parameters
  • Over-voltage protection (OVP)
  • Over-current protection (OCP)
  • Over-temperature protection (OTP)
  • Input undervoltage protection
  • Built-in discharge circuit
  • USB communication interface
  • SCPI protocol support
  • PC programming and remote control
  • 2.8-inch TFT color LCD display
  • Designed for long-term full-load operation
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The OWON SPS Series Fanless Single Channel Programmable DC Power Supply provides stable and precise DC power while eliminating the noise and potential reliability issues associated with traditional cooling fans. The series includes models with output ratings from 30V to 80V and currents from 5A to 8A, with power ratings up to 150W. Voltage and current can be set and read back with resolutions of 10mV and 1mA respectively. The power supply supports constant voltage and constant current operation, programmable list waveform editing and output, and four groups of memory presets for quickly recalling frequently used settings. Integrated over-voltage, over-current, over-temperature, and input undervoltage protection helps safeguard the instrument and connected devices. A built-in discharge circuit reduces residual high-voltage risks after the output is switched off. USB communication and SCPI support enable PC programming, remote control, and integration into automated test systems.

Specifications
ModelsAvailable ModelsSPS3051, SPS6051, SPS3081, SPS6081, SPS8081
OutputSPS30510–30V, 0–5A, 150W
SPS60510–60V, 0–5A, 150W
SPS30810–30V, 0–8A, 120W
SPS60810–60V, 0–8A, 120W
SPS80810–80V, 0–8A, 120W
InputInput Voltage85–265V AC
Input Frequency45–65Hz
RegulationCV Load Regulation≤30mV
CV Power Regulation≤20mA
CC Load Regulation≤30mV
CC Power Regulation≤20mA
ResolutionVoltage Setting Resolution10mV
Current Setting Resolution1mA
Voltage Readback Resolution10mV
Current Readback Resolution1mA
AccuracyVoltage Setting Accuracy≤0.05% ±20mV; SPS3081 ≤0.1% ±20mV
Current Setting Accuracy≤0.05% ±20mA; SPS3081 ≤0.2% ±20mA
Voltage Readback Accuracy≤0.05% ±20mV; SPS3081 ≤0.1% ±20mV
Current Readback Accuracy≤0.05% ±20mA; SPS3081 ≤0.2% ±20mA
Ripple & NoiseVoltage Ripple Vp-p≤30mV
Voltage Ripple RMS≤4mV; SPS3081 ≤5mV
Current Ripple≤10mA; SPS3081 ≤30mA
TemperatureOutput Voltage Temperature Coefficient100ppm/°C
Output Current Temperature Coefficient200ppm/°C
Readback Voltage Temperature Coefficient100ppm/°C
Readback Current Temperature Coefficient200ppm/°C
ResponseResponse Time≤1.0ms, 50%–100% rated load
ProtectionProtection FunctionsOver-voltage, over-current, over-temperature, and input undervoltage protection
Discharge CircuitBuilt-in discharge circuit for residual high-voltage protection
ProgrammabilityList WaveformList waveform editing and programmable output
MemoryMemory Presets4 groups
CommunicationCommunication InterfaceUSB
Communication ProtocolSCPI
DisplayDisplay Type2.8-inch color TFT LCD
Display Resolution240 × 320 pixels
CoolingCooling SystemFanless design
Operating EnvironmentWorking Temperature0°C to 40°C
Storage Temperature-20°C to 60°C
Relative Humidity≤90% RH, non-condensing
MechanicalDimensions82 × 142 × 226 mm
WeightApproximately 1.8 kg
