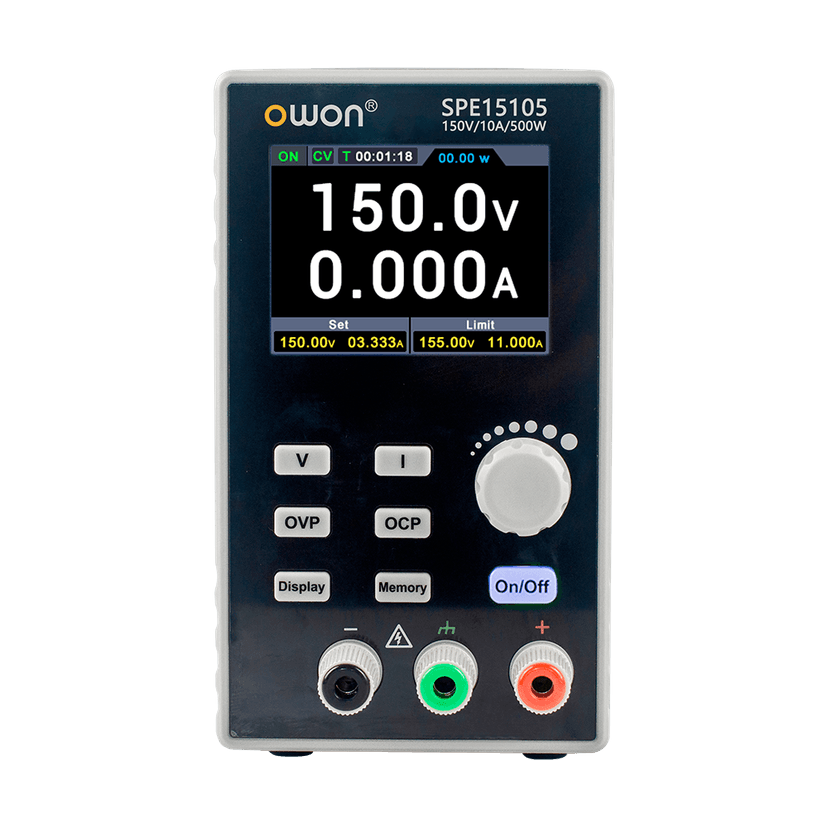

OWON SPE High Voltage DC Power Supply
Programmable DC Series

OWON SPE High Voltage DC Power Supply

  • Ultra-thin and portable design
  • Up to 500W constant power output
  • High-precision voltage and current control
  • Voltage and current setting accuracy up to 0.05%
  • CV constant voltage mode
  • CC constant current mode
  • Full digital control
  • Over-voltage protection (OVP)
  • Over-current protection (OCP)
  • Over-temperature protection (OTP)
  • Power-on automatic output setting
  • Built-in discharge circuit for residual high-voltage discharge
  • Programmable list waveform output
  • Up to 10 programmable timing steps
  • 4 sets of memory presets
  • PC software programmable output
  • USB Device interface
  • Optional RS232/RS485 interface
  • Optional LAN interface
  • SCPI protocol support
  • Modbus protocol support
  • 2.8-inch color IPS LCD display
  • Intelligent fan cooling
  • Suitable for unattended operation
  • Suitable for factory and production-line testing
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The OWON SPE Series High Voltage DC Power Supply is available in multiple voltage and current configurations, supporting output voltages from 0 to 150V, 300V, or 500V and power levels up to 500W. The series provides precise digital control with voltage and current setting and readback resolution down to 10mV and 1mA. CV and CC operating modes allow stable voltage or current regulation for different testing requirements. Built-in OVP, OCP, and OTP protection helps protect both the power supply and connected equipment. The programmable list waveform function supports up to 10 timing steps, while four memory presets allow frequently used settings to be recalled quickly. The SPE Series can also be controlled through PC software and supports USB, optional RS232/RS485, and optional LAN interfaces with SCPI and Modbus communication protocols, making it suitable for automated test systems and centralized industrial control.

Specifications
ModelsAvailable ModelsSPE15054, SPE15105, SPE30054, SPE30055, SPE50024, SPE50025
OutputVoltage Range0–150 V, 0–300 V, or 0–500 V depending on model
Maximum CurrentUp to 10 A
Maximum PowerUp to 500 W
SPE150540–150 V, 0–5 A, 400 W
SPE151050–150 V, 0–10 A, 500 W
SPE300540–300 V, 0–5 A, 400 W
SPE300550–300 V, 0–5 A, 500 W
SPE500240–500 V, 0–2 A, 400 W
SPE500250–500 V, 0–2 A, 500 W
Operating ModeVoltage/Current ModeCV constant voltage and CC constant current
InputSupply Voltage100–240 V AC
Input Frequency45–65 Hz
RegulationCV Load Regulation≤20 mV, ≤30 mV, or ≤200 mV depending on model
CV Line Regulation≤20 mV, ≤30 mV, or ≤200 mV depending on model
CC Load Regulation≤10 mA
CC Line Regulation≤10 mA
Ripple & NoiseVoltage Ripple≤150 mVpp, ≤300 mVpp, or ≤500 mVpp depending on model
Current Ripple≤20 mA or ≤30 mA depending on model
ResolutionSetting Resolution10 mV / 1 mA
Readback Resolution10 mV / 1 mA
AccuracyVoltage Setting Accuracy≤0.05% ±20 mV or ≤0.05% ±200 mV depending on model
Current Setting Accuracy≤0.05% ±20 mA
Voltage Readback Accuracy≤0.05% ±20 mV or ≤0.05% ±200 mV depending on model
Current Readback Accuracy≤0.05% ±20 mA
ProtectionOver-Voltage ProtectionUp to 155 V, 310 V, or 510 V depending on model
Over-Current ProtectionUp to 6 A, 11 A, or 3 A depending on model
Over-Temperature Protection85°C
Discharge CircuitBuilt-in discharge circuit for residual high voltage
ProgrammabilityList WaveformProgrammable output with up to 10 timing steps
MemoryPreset Memory4 sets of memory presets
ControlPC ProgrammingSupported through PC software
CommunicationStandard InterfaceUSB Device
Optional InterfacesRS232, RS485, LAN
Communication ProtocolsSCPI and Modbus
DisplayDisplay Type2.8-inch color IPS LCD
Display Resolution240 × 320 pixels
Color Depth65,536 colors
CoolingCooling SystemFan cooling with intelligent temperature-controlled speed
Operating EnvironmentWorking Temperature0°C to 40°C
Storage Temperature-20°C to 60°C
Relative Humidity≤90% RH, non-condensing
Maximum Altitude2000 m
MechanicalDimensions82 × 142 × 226 mm
WeightApproximately 1.6 kg
