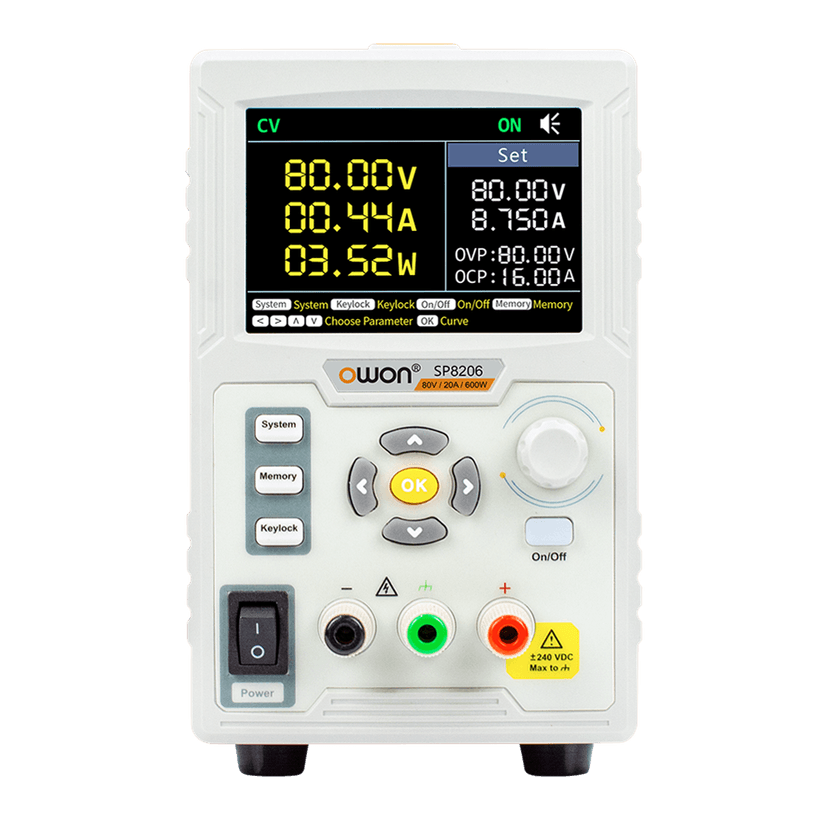

OWON SP8000 High Power Series Programmable DC Power Supply
Programmable DC Series

OWON SP8000 High Power Series Programmable DC Power Supply

  • Single-channel programmable DC power supply
  • 0–80V output voltage
  • 0–20A output current
  • Up to 600W rated output power
  • 10mV voltage setting resolution
  • 1mA current setting resolution
  • 10mV voltage readback resolution
  • 1mA current readback resolution
  • Remote voltage sensing
  • Low ripple and noise
  • Over-voltage protection (OVP)
  • Over-current protection (OCP)
  • Auto power-on function
  • Programmable output
  • PC remote control
  • SCPI protocol support
  • RS232 or LAN communication
  • 3.7-inch color LCD display
  • Waveform display
  • Constant voltage (CV) operation
  • Constant current (CC) operation
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The SP8000 Series provides high-power DC output with the SP8206 offering a 0–80V voltage range, up to 20A current, and 600W rated output power. The power supply provides 10mV voltage and 1mA current setting and readback resolution for precise control. Remote voltage sensing helps compensate for voltage drops between the power supply and load. The SP8206 features low ripple and noise, over-voltage and over-current protection, programmable output, and an auto power-on function suitable for unattended automation applications. RS232 or LAN communication with SCPI support enables PC-based remote control and integration into automated test systems. A 3.7-inch color LCD provides clear output readings and waveform information.

Specifications
ModelsAvailable ModelSP8206
OutputVoltage0–80V
Current0–20A
Rated Power600W
InputSupply Voltage100–240Vac
Input Frequency50–60Hz
Full-Load Input Current≤6.6A at 110Vac; ≤3.2A at 220Vac
No-Load Input Current≤200mA at 110Vac; ≤100mA at 220Vac
RegulationLoad Regulation - Voltage≤30mV
Load Regulation - Current≤30mA
Line Regulation - Voltage≤20mV
Line Regulation - Current≤20mA
ResolutionVoltage Setting Resolution10mV
Current Setting Resolution1mA
Voltage Readback Resolution10mV
Current Readback Resolution1mA
AccuracyVoltage Setting Accuracy≤0.1% ±20mV
Current Setting Accuracy≤0.1% ±20mA
Voltage Readback Accuracy≤0.1% ±20mV
Current Readback Accuracy≤0.1% ±20mA
Ripple & NoiseVoltage Ripple Vp-p≤50mVp-p
Voltage Ripple RMS≤20mVrms
Current Ripple≤20mAp-p
TemperatureOutput Voltage Temperature Coefficient100ppm/°C
Output Current Temperature Coefficient200ppm/°C
Readback Voltage Temperature Coefficient100ppm/°C
Readback Current Temperature Coefficient200ppm/°C
ResponseTransient Recovery Time≤5.0ms, 10%–100% rated load
ProtectionProtection FunctionsOver-voltage protection (OVP) and over-current protection (OCP)
ControlRemote Voltage SensingSupported
Auto Power-OnSupported
ProgrammabilityProgrammable OutputSupported
CommunicationInterfacesRS232 or LAN
ProtocolSCPI
DisplayDisplay Type3.7-inch color LCD
Waveform DisplaySupported
Operating EnvironmentWorking Temperature0°C to 40°C
Storage Temperature-20°C to 60°C
MechanicalDimensions117 × 194 × 290 mm
WeightApproximately 2.0 kg
