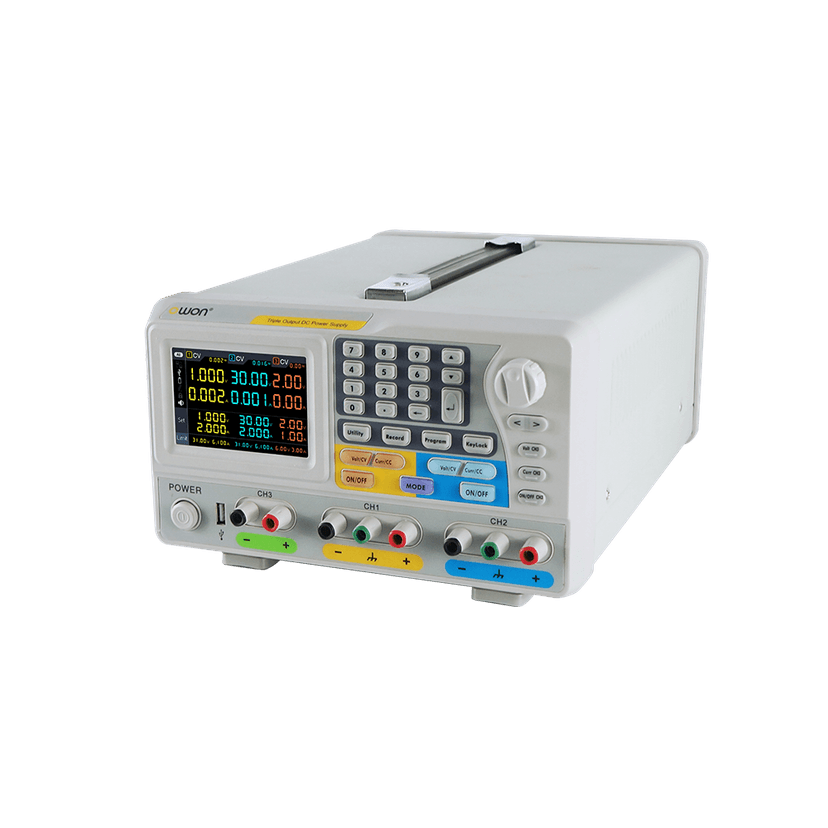

OWON 3-CH Programmable DC Power Supply
- Three independent controllable output channels
- ODP3033: two 0–30V / 3A channels plus one 0–6V / 3A channel
- ODP3063: two 0–30V / 6A channels plus one 0–6V / 3A channel
- ODP6033: two 0–60V / 3A channels plus one 0–6V / 3A channel
- Up to 378W maximum output power
- 1mV voltage resolution
- 1mA current resolution
- Low ripple and low noise
- Individual, parallel, and series working modes
- Over-voltage protection
- Over-current protection
- CV/CC automatic switching
- Up to 100 programmable timing output groups
- Programmable output curve adjustment
- Data recording function
- Recorded output data displayed in chart format
- Automatic cooling system
- 4-inch high-resolution color LCD
- 480 × 320 pixel display resolution
- USB Host and USB Device interfaces
- RS232 communication
- LAN communication
- SCPI support
- LabVIEW support
The OWON 3-CH programmable DC power supply series includes the ODP3033, ODP3063, and ODP6033 models. All three models provide three independent controllable channels and support individual, parallel, and series operation. The ODP3033 offers two 0–30V/3A channels and one 0–6V/3A channel, while the ODP3063 provides two 0–30V/6A channels and one 0–6V/3A channel. The ODP6033 provides two 0–60V/3A channels and one 0–6V/3A channel. The series provides 1mV voltage and 1mA current setting and readback resolution, low ripple and noise, programmable timing output with up to 100 groups, and data recording capabilities. CV/CC automatic switching adjusts the operating mode according to load conditions. USB, RS232, and LAN interfaces provide convenient communication and remote control for laboratory and automated testing environments.
| Models | Available Models | ODP3033, ODP3063, ODP6033 |
| Channels | Output | 3 independent controllable channels |
| Output | ODP3033 | CH1: 0–30V / 3A; CH2: 0–30V / 3A; CH3: 0–6V / 3A |
| ODP3063 | CH1: 0–30V / 6A; CH2: 0–30V / 6A; CH3: 0–6V / 3A | |
| ODP6033 | CH1: 0–60V / 3A; CH2: 0–60V / 3A; CH3: 0–6V / 3A | |
| Power | Maximum Output Power | 198W (ODP3033); 378W (ODP3063); 378W (ODP6033) |
| Operating Modes | Working Modes | Individual, parallel, and series |
| Resolution | Setting Resolution | 1mV / 1mA |
| Readback Resolution | 1mV / 1mA | |
| Accuracy | Voltage Setting Accuracy | ≤0.03% + 10mV |
| Current Setting Accuracy | ≤0.1% + 8mA or ≤0.1% + 5mA depending on channel | |
| Voltage Readback Accuracy | ≤0.03% + 10mV | |
| Current Readback Accuracy | ≤0.1% + 8mA or ≤0.1% + 5mA depending on channel | |
| Regulation | Load Regulation | ≤0.01% + 3mV voltage; ≤0.01% + 3mA current |
| Line Regulation | ≤0.01% + 3mV voltage; ≤0.01% + 3mA current | |
| Ripple & Noise | Voltage Ripple | ≤4mVp-p or ≤3mVp-p depending on channel |
| Voltage Noise | ≤1mVrms | |
| Current Ripple | ≤5mArms or ≤4mArms depending on channel | |
| Parallel Mode | Parallel Setting Accuracy | ≤0.02% + 5mV voltage; ≤0.1% + 30mA current |
| Protection | Protection | Over-voltage protection and over-current protection |
| CV/CC | Automatic Switching | Automatic CV/CC switching according to load conditions |
| Programmability | Programmable Output Storage | 100 groups |
| Time Setting | Seconds | |
| Data Logging | Recording Capacity | 10,000 groups of voltage and current data |
| Display | Recorded data displayed in chart format | |
| Cooling | Cooling System | Automatic cooling system |
| Display | Display Type | 4-inch color LCD |
| Display Resolution | 480 × 320 pixels, 65,536 colors | |
| Communication | Interfaces | USB Host, USB Device, RS232, LAN |
| Protocols | SCPI and LabVIEW supported | |
| Operating Environment | Operating Temperature | 0°C to 40°C |
| Mechanical | Dimensions | 250 × 158 × 358 mm |
| Weight | 9.8 kg (ODP3033); 12 kg (ODP3063) |
