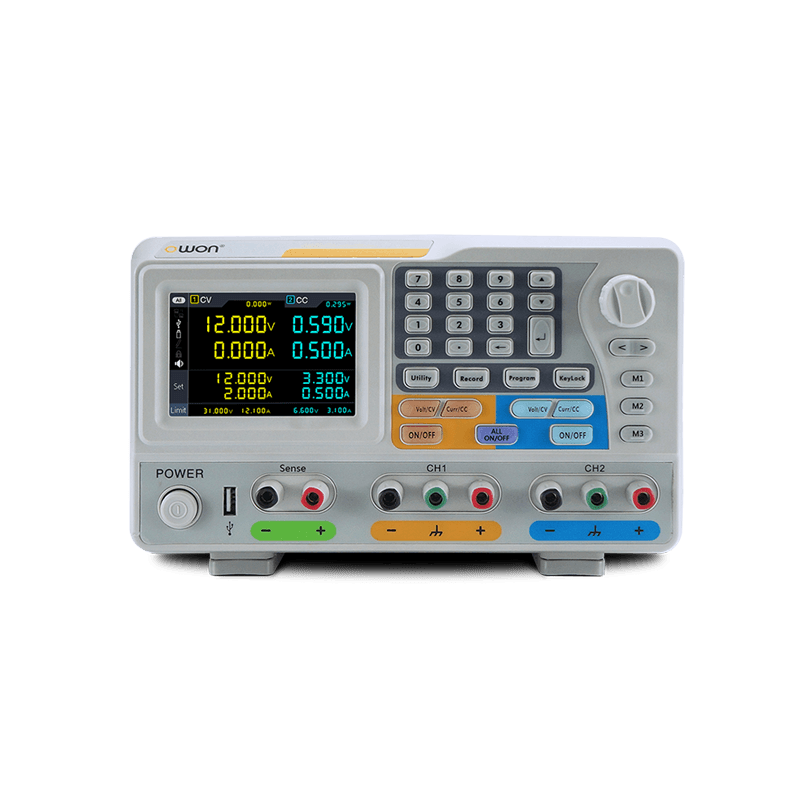

OWON 12A / 6A Dual Output Programmable DC Power Supply
- Two independent controllable output channels
- Sense function supported
- ODP3122: 0–30V / 12A on CH1 and 0–6V / 3A on CH2
- ODP6062: 0–60V / 6A on CH1 and 0–6V / 3A on CH2
- Up to 378W maximum output power
- 1mV voltage resolution
- 1mA current resolution
- Low ripple and low noise
- Individual, parallel, and series working modes
- Over-voltage protection (OVP)
- Over-current protection (OCP)
- Up to 100 programmable timing output groups
- Data logging for voltage, current, and power
- Recorded data displayed in chart format
- Auto-cooling system
- 4-inch high-resolution color LCD
- 480 × 320 pixel display resolution
- USB Host and USB Device interfaces
- RS232 communication
- LAN communication
- SCPI support
- LabVIEW support
The OWON dual-output programmable DC power supply series includes the ODP3122 and ODP6062 models. Both models feature two independently controllable channels with Sense functionality and support individual, parallel, and series working modes. The ODP3122 provides 0–30V/12A on CH1 and 0–6V/3A on CH2, while the ODP6062 provides 0–60V/6A on CH1 and 0–6V/3A on CH2. The series offers 1mV voltage and 1mA current setting and readback resolution, along with low ripple and noise performance. Up to 100 groups of programmable timing output can be configured, while the data recording function stores voltage, current, and power measurements and displays them in chart format. USB, RS232, and LAN interfaces provide convenient PC communication and remote-control capabilities, with SCPI and LabVIEW support for automated testing.
| Models | Available Models | ODP3122, ODP6062 |
| Channels | Output | 2 independent controllable channels + Sense |
| Output | ODP3122 | CH1: 0–30V / 0–12A; CH2: 0–6V / 0–3A |
| ODP6062 | CH1: 0–60V / 0–6A; CH2: 0–6V / 0–3A | |
| Power | Maximum Output Power | 378W |
| Operating Modes | Working Modes | Individual, parallel, and series |
| Resolution | Setting Resolution | 1mV / 1mA |
| Readback Resolution | 1mV / 1mA | |
| Accuracy | Voltage Setting Accuracy | ≤0.03% + 10mV |
| Current Setting Accuracy | ≤0.1% + 8mA (CH1); ≤0.1% + 5mA (CH2) | |
| Voltage Readback Accuracy | ≤0.03% + 10mV | |
| Current Readback Accuracy | ≤0.1% + 8mA (CH1); ≤0.1% + 5mA (CH2) | |
| Regulation | Load Regulation | ≤0.01% + 3mV voltage; ≤0.01% + 3mA current |
| Line Regulation | ≤0.01% + 3mV voltage; ≤0.01% + 3mA current | |
| Ripple & Noise | Voltage Ripple | ≤4mVp-p (CH1); ≤3mVp-p (CH2) |
| Voltage Noise | ≤1mVrms | |
| Current Ripple | ≤5mArms (CH1); ≤4mArms (CH2) | |
| Parallel Mode | Parallel Setting Accuracy | ≤0.02% + 5mV voltage; ≤0.1% + 30mA current |
| Protection | Protection | Over-voltage protection and over-current protection |
| Programmability | Programmable Output Storage | 100 groups |
| Time Setting | Seconds | |
| Data Logging | Recording Capacity | 10,000 groups of voltage, current, and power data |
| Display | Recorded data can be displayed in chart format | |
| Cooling | Cooling System | Automatic cooling system |
| Display | Display Type | 4-inch color LCD |
| Display Resolution | 480 × 320 pixels, 65,536 colors | |
| Communication | Interfaces | USB Host, USB Device, RS232, LAN |
| Protocols | SCPI and LabVIEW supported | |
| Operating Environment | Operating Temperature | 0°C to 40°C |
| Mechanical | Dimensions | 250 × 158 × 358 mm |
| Weight | Approximately 12 kg |
