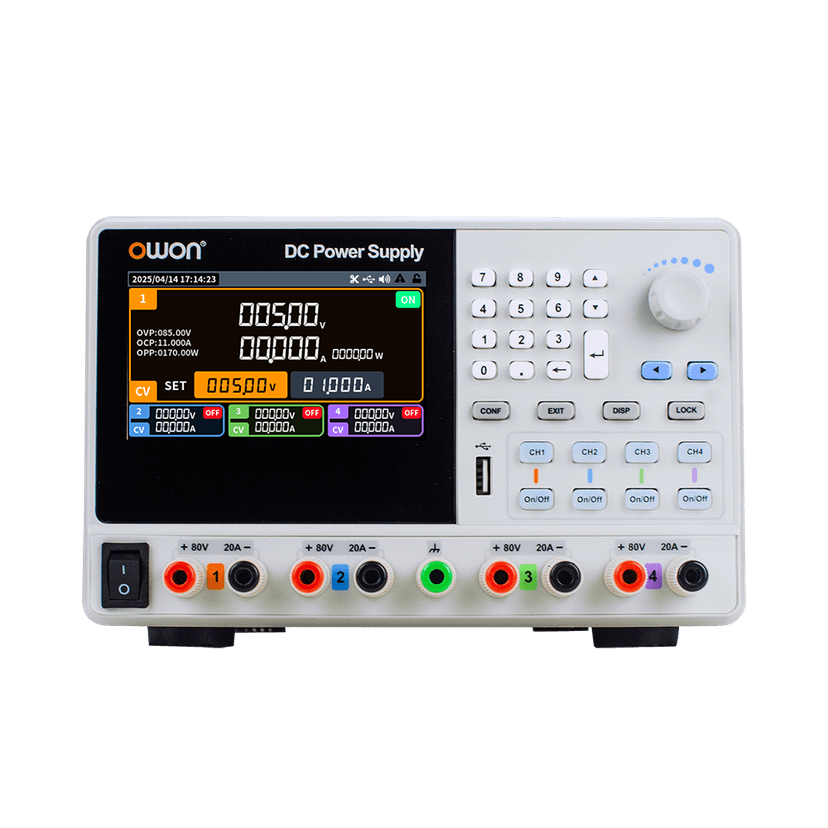

OWON OWH80Q Series 4CH Fanless DC Power Supply
- 4 independent output channels
- 1U/2U/3U rack cabinet design for standard 19-inch racks
- Fanless design for quiet operation
- 80V maximum output voltage
- Up to 20A output current
- 600W, 1000W, and 2000W total power configurations
- 0.05% high-accuracy output
- 10mV voltage and 1mA current setting resolution
- 10mV voltage and 1mA current readback resolution
- CV/CC priority setting
- Built-in bleed circuit to discharge residual high voltage
- OVP, OCP, and OPP protection
- 3-inch TFT LCD color display
- Real-time curve output display
- Online 1-minute data logging
- LAN, RS485, and RS232 communication interfaces
- SCPI protocol support
The OWON OWH80Q Series provides four-channel programmable DC output with models covering different current and power levels. The series supports up to 80V output and up to 20A per channel, with configurations offering 600W, 1000W, or 2000W total output power. Its fanless design provides quiet operation while the power supply uses a high-performance heat dissipation design. With 10mV/1mA setting and readback resolution and up to 0.05% accuracy, the series is suitable for applications requiring precise programmable DC power. CV/CC priority control enables adaptation to different load characteristics, while the built-in bleed circuit helps eliminate residual high voltage after shutdown. The 3-inch TFT LCD provides output curve visualization and online one-minute data logging. LAN, RS485, and RS232 interfaces with SCPI support enable remote programming, monitoring, and integration into automated test environments.
| Models | Available Models | OWH8080Q-2000, OWH8040Q-600F, OWH8020Q-1000F |
| Channels | Number of Channels | 4 |
| Mounting | Rack Installation | 1U/2U/3U rack cabinet size; suitable for standard 19-inch racks |
| Output | Maximum Voltage | 0–80V |
| OWH8080Q-2000 Current | 0–20A per channel | |
| OWH8040Q-600F Current | 0–10A per channel | |
| OWH8020Q-1000F Current | 0–5A per channel | |
| Power | OWH8080Q-2000 Power | 4 × 500W |
| OWH8040Q-600F Power | 4 × 150W | |
| OWH8020Q-1000F Power | 4 × 250W | |
| Input | Input Voltage | 100–240Vac |
| Input Frequency | 45–65Hz | |
| Regulation | CV Load Regulation | ≤0.05% + 20mV for OWH8080Q-2000; ≤0.03% + 20mV for OWH8040Q-600F and OWH8020Q-1000F |
| CC Load Regulation | ≤0.1% + 30mA for OWH8080Q-2000; ≤0.05% + 30mA for OWH8040Q-600F and OWH8020Q-1000F | |
| CV Input Power Regulation | ≤0.05% + 20mV for OWH8080Q-2000; ≤0.03% + 20mV for OWH8040Q-600F; ≤0.05% + 20mV for OWH8020Q-1000F | |
| CC Input Power Regulation | ≤0.1% + 30mA for OWH8080Q-2000; ≤0.05% + 30mA for OWH8040Q-600F and OWH8020Q-1000F | |
| Resolution | Setting Resolution | 10mV / 1mA |
| Readback Resolution | 10mV / 1mA | |
| Accuracy | Voltage Setting Accuracy | ≤0.05% ± 20mV for OWH8080Q-2000; ≤0.05% ± 40mV for OWH8040Q-600F and OWH8020Q-1000F |
| Current Setting Accuracy | ≤0.1% ± 30mA for OWH8080Q-2000; ≤0.1% ± 0.1%FS for OWH8040Q-600F and OWH8020Q-1000F | |
| Voltage Readback Accuracy | ≤0.05% ± 20mV for OWH8080Q-2000; ≤0.05% ± 40mV for OWH8040Q-600F and OWH8020Q-1000F | |
| Current Readback Accuracy | ≤0.1% ± 30mA for OWH8080Q-2000; ≤0.1% ± 0.1%FS for OWH8040Q-600F and OWH8020Q-1000F | |
| Ripple & Noise | Voltage Ripple | ≤50mVp-p for OWH8080Q-2000; ≤100mVp-p for OWH8040Q-600F and OWH8020Q-1000F |
| Current Noise | ≤30mA RMS for OWH8080Q-2000; ≤100mArms for OWH8040Q-600F; ≤120mArms for OWH8020Q-1000F | |
| Temperature | Output Temperature Coefficient | 100ppm/°C voltage; 200ppm/°C current |
| Readback Temperature Coefficient | 100ppm/°C voltage; 200ppm/°C current | |
| Dynamic | Transient Response | ≤5.0ms, 10%–90% rated load |
| Protection | Protection | OVP, OCP, OPP |
| Control | Priority Mode | CV/CC priority setting |
| Safety | Discharge Circuit | Built-in bleed circuit for residual high-voltage discharge |
| Display | Display | 3-inch TFT LCD color screen |
| Monitoring | Curve Display | Output curve display |
| Data Logging | Online Data Logging | 1-minute data logging |
| Communication | Interfaces | LAN, RS485, RS232 |
| Protocol | SCPI | |
| Environment | Operating Temperature | 0–40°C |
| Mechanical | Dimensions | 215.0 × 133.0 × 446.2 mm |
| Weight | Approx. 6kg |
