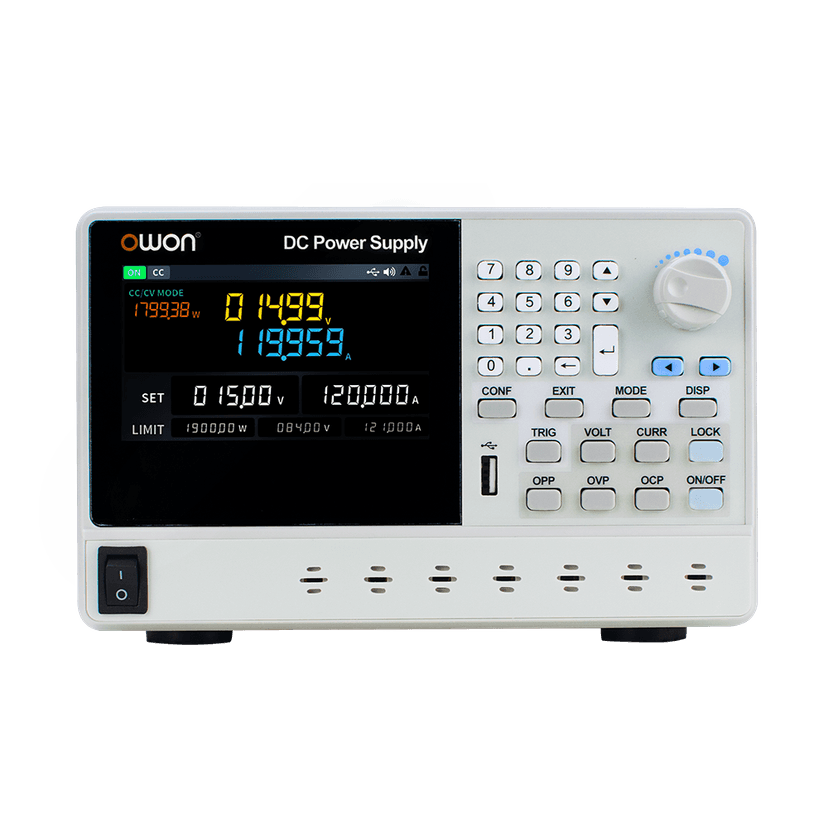

OWON OWH80 Series DC Power Supply
High Power Programmable DC Series

OWON OWH80 Series DC Power Supply

  • 1-channel programmable DC output
  • 1/2 3U rack cabinet size for standard 19-inch rack installation
  • High-power output up to 2000W
  • Output voltage up to 80V
  • Output current up to 120A
  • High-precision 0.05% output accuracy
  • 10mV/1mA setting resolution
  • 1mV/1mA readback resolution
  • CV/CC priority setting
  • Built-in bleed circuit for residual high-voltage discharge
  • OVP, OCP, and OPP protection
  • 3-inch TFT LCD color display
  • Real-time output curve display
  • Online 1-minute data logging
  • LAN, RS485, and RS232 communication interfaces
  • SCPI protocol support
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The OWON OWH80 Series DC Power Supply is designed for high-power DC testing and power applications requiring stable and accurately controlled output. The series offers three models: OWH80120-1800 with 0–80V/0–120A/1800W, OWH50120-1800 with 0–50V/0–120A/1800W, and OWH8080-2000 with 0–80V/0–80A/2000W. The supplies provide 10mV/1mA setting resolution and 1mV/1mA readback resolution, with voltage accuracy up to 0.05%. CV/CC priority settings allow the output behavior to be adapted to different load characteristics. A built-in bleed circuit helps eliminate residual high voltage after shutdown, while OVP, OCP, and OPP protection provide additional operating safety. The 3-inch TFT LCD supports curve display and online one-minute data logging. LAN, RS485, and RS232 interfaces provide remote communication and integration capabilities with SCPI support.

Specifications
ModelsAvailable ModelsOWH80120-1800, OWH50120-1800, OWH8080-2000
ChannelsNumber of Channels1
MountingRack Installation1/2 3U rack cabinet size; suitable for standard 19-inch racks
OutputOWH80120-18000–80V / 0–120A / 1800W
OWH50120-18000–50V / 0–120A / 1800W
OWH8080-20000–80V / 0–80A / 2000W
InputInput Voltage198–240Vac
Input Frequency45–65Hz
RegulationCV Load Regulation≤0.03% + 20mV
CC Load Regulation≤0.05% + 30mA
CV Input Power Regulation≤0.03% + 20mV for OWH80120-1800 and OWH50120-1800; ≤0.05% + 20mV for OWH8080-2000
CC Input Power Regulation≤0.05% + 30mA
ResolutionSetting Resolution10mV / 1mA
Readback Resolution1mV / 1mA
AccuracyVoltage Setting Accuracy≤0.05% ± 40mV
Current Setting Accuracy≤0.1% ± 0.1%FS
Voltage Readback Accuracy≤0.05% ± 40mV
Current Readback Accuracy≤0.1% ± 0.1%FS
Ripple & NoiseVoltage Ripple≤100mVp-p
Current Noise≤100mArms for OWH80120-1800 and OWH50120-1800; ≤120mArms for OWH8080-2000
TemperatureOutput Temperature Coefficient100ppm/°C voltage; 200ppm/°C current
Readback Temperature Coefficient100ppm/°C voltage; 200ppm/°C current
DynamicTransient Response≤5.0ms, 10%–90% rated load
ProtectionProtectionOVP, OCP, OPP
ControlPriority ModeCV/CC priority setting
SafetyDischarge CircuitBuilt-in bleed circuit to discharge residual high voltage
ProgrammingProgrammable OutputLIST waveform programmable output
MonitoringCurve DisplayReal-time voltage/current curve display
Data LoggingOnline Data Logging1-minute data logging
DisplayDisplay3-inch TFT LCD color screen
CommunicationInterfacesLAN, RS485, RS232
ProtocolSCPI
EnvironmentOperating Temperature0–40°C
MechanicalDimensions215.0 × 133.0 × 446.2 mm
WeightApprox. 6kg
