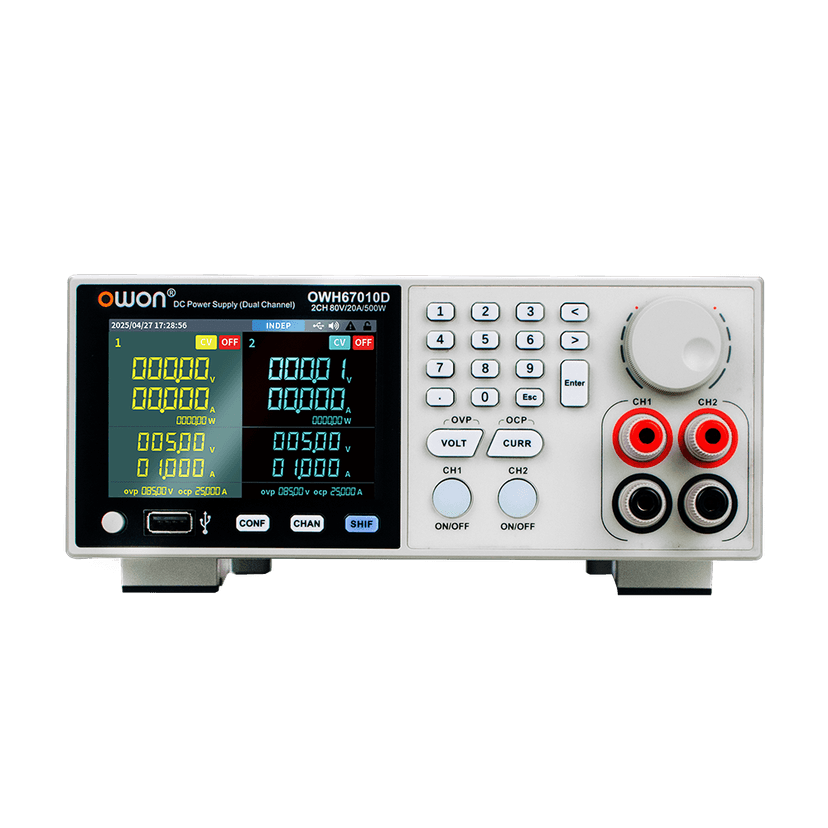

OWON OWH67D Series 2CH DC Power Supply
High Power Programmable DC Series

OWON OWH67D Series 2CH DC Power Supply

  • 2-channel independent output
  • 2U standard rack-mounted design
  • Front and rear panel output
  • Wide-range AC input
  • Wide-range voltage output
  • Constant power output up to 6000W
  • 1000W output option for OWH67010D-80
  • 6000W output options for OWH67060D series
  • 0.05% high-precision output
  • 10mV voltage and 1mA current setting resolution
  • 10mV voltage and 1mA current readback resolution
  • Selectable CC/CV priority
  • Smooth startup with no overshoot
  • Up to 100-step LIST waveform programmable output
  • Built-in discharge circuit
  • Over-voltage protection
  • Over-current protection
  • Over-power protection
  • Input undervoltage protection
  • Internal short-circuit protection
  • Photovoltaic simulator function
  • Built-in EN50530 and Sandia PV curves
  • Real-time voltage and current waveform display
  • 3.95-inch TFT display
  • USB communication interface
  • LAN communication interface
  • RS485 communication interface
  • SCPI protocol support
  • Modbus protocol support
  • PC remote control
  • Real-time monitoring and output configuration
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The OWH67D Series provides two independently controllable DC output channels in a compact 2U rack-mounted design, with both front and rear panel output connections. The series includes the OWH67010D-80 with 80V/20A output and 1000W constant power, as well as the OWH67060D-150, OWH67060D-300, and OWH67060D-600 models supporting up to 6000W constant power. The power supply provides 10mV/1mA setting and readback resolution and high-precision output control of up to 0.05%. Selectable CC/CV priority modes enable smooth startup without overshoot and allow the instrument to adapt to different load characteristics. Up to 100-step LIST waveform programming supports automated testing. The optional photovoltaic simulator function includes EN50530, Sandia, and other PV standard curves for evaluating PV inverter MPPT efficiency. Comprehensive protection includes OVP, OCP, OPP, input undervoltage, and internal short-circuit protection. USB, LAN, and RS485 interfaces provide remote monitoring and control with SCPI and Modbus protocol support.

Specifications
ModelsAvailable ModelsOWH67010D-80, OWH67060D-150, OWH67060D-300, OWH67060D-600
ChannelsChannels2
MountingForm Factor2U standard rack-mounted design
OutputOWH67010D-80 Voltage0–80V per channel
OWH67010D-80 Current0–20A per channel
OWH67010D-80 Power1000W
OWH67060D-150 Voltage0–150V per channel
OWH67060D-150 Current0–30A per channel
OWH67060D-150 Power6000W
OWH67060D-300 Voltage0–300V per channel
OWH67060D-300 Current0–15A per channel
OWH67060D-300 Power6000W
OWH67060D-600 Voltage0–600V per channel
OWH67060D-600 Current0–10A per channel
OWH67060D-600 Power6000W
InputPower Supply100–240Vac, 45–65Hz
RegulationCV Load Regulation≤0.03% + 0.03%FS
CC Load Regulation≤0.03% + 0.05%FS
CV Line Regulation≤0.03% + 0.03%FS
CC Line Regulation≤0.03% + 0.05%FS
ResolutionSetting Resolution10mV / 1mA
Readback Resolution10mV / 1mA
AccuracyVoltage Setting Accuracy≤0.05% + 0.05%FS
Current Setting Accuracy≤0.05% + 0.1%FS
Voltage Readback Accuracy≤0.05% + 0.05%FS
Current Readback Accuracy≤0.05% + 0.1%FS
Ripple & NoiseCV Ripple≤50mVp-p (80V model); ≤150mVp-p (150V model); ≤250mVp-p (300V model); ≤500mVp-p (600V model)
CC Noise≤20mArms (80V model); ≤50mArms (150V, 300V, and 600V models)
TemperatureTemperature Coefficient100ppm/°C voltage; 200ppm/°C current
Readback Temperature Coefficient100ppm/°C voltage; 200ppm/°C current
DynamicRecovery Time≤5.0ms, 10%–90% rated load
ProgrammingLIST Waveform ProgrammingUp to 100 steps
ControlPriority ModeSelectable CC/CV priority
PV SimulationPV SimulatorOptional; supports EN50530, Sandia, and other PV standard curves
ProtectionProtection FunctionsOVP, OCP, OPP, input undervoltage, internal short-circuit protection
DisplayDisplay3.95-inch TFT LCD
CommunicationInterfacesUSB / LAN / RS485
ProtocolsSCPI and Modbus
EnvironmentOperating Temperature0–40°C
MechanicalDimensions215 × 88 × 453 mm (OWH67010D-80); 430 × 88 × 453 mm (OWH67060D series)
WeightApproximately 5 kg (OWH67010D-80); approximately 13 kg (OWH67060D series)
