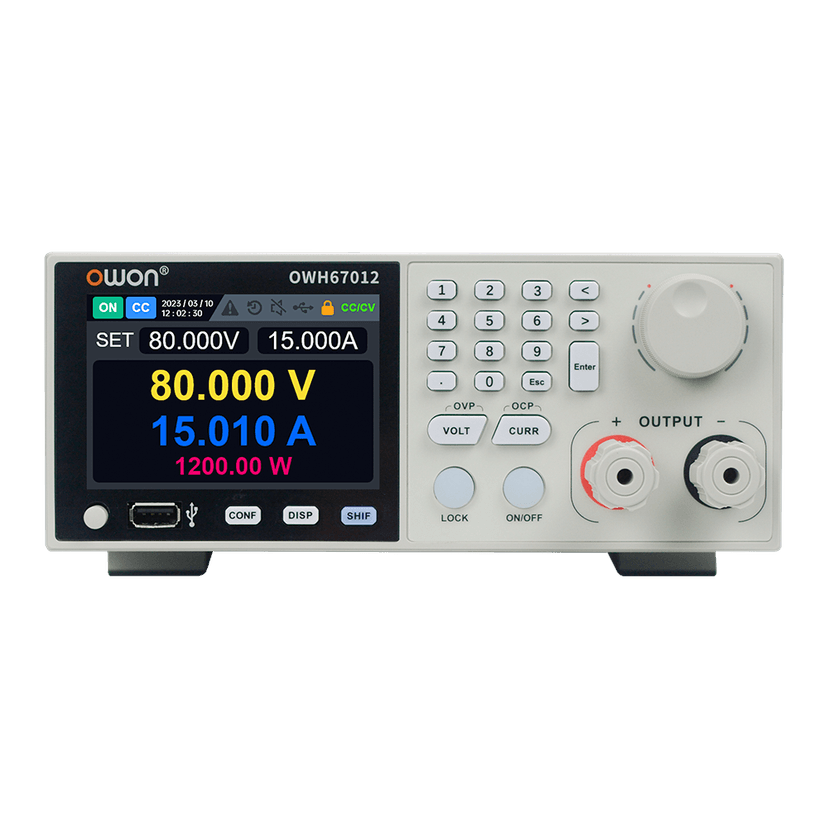

OWON OWH67 Series High Power DC Power Supply
- 1U/2U standard 19-inch rack-mount design
- Wide-range 85V–265V AC input
- High-precision constant power output from 1200W to 6000W
- Wide output voltage and current range
- 10mV voltage and 1mA current setting resolution
- 1mV voltage and 1mA current readback resolution
- Up to 100-step LIST waveform programmable output
- CV/CC priority control
- Adjustable voltage rise and fall time
- Built-in output discharge circuit
- SCPI-compatible remote control
- USB serial communication
- Photovoltaic simulator function
- Optional EN50530 and Sandia PV curves
- Optional solar panel simulator
- Analog input/output support
- Dry contact functionality
- 3.9-inch TFT LCD display
- Real-time voltage and current curve display
- Online recording of 1-minute measurement data
- Integrated source-meter functionality
- Anomaly detection and waveform capture
The OWON OWH67 Series provides high-power constant-output capability from 1200W to 6000W across a wide range of voltage and current configurations. Models include the OWH67012, OWH67018, OWH67020, OWH67030, and OWH67060 series. The power supplies accept 85V–265V AC input and provide high-resolution 10mV/1mA setting control with 1mV/1mA readback resolution. CV and CC priority modes support adjustable rise and fall times for controlled startup and dynamic testing. The series supports up to 100-step LIST waveform programming for automated output sequences and includes a built-in discharge circuit for the output. For renewable-energy testing, the optional photovoltaic simulator supports EN50530, Sandia, and other PV standard curves. Analog I/O and dry-contact functionality provide additional integration options for automated systems. A 3.9-inch TFT LCD displays voltage and current curves in real time and supports online recording of one-minute data. Communication options include USB, RS485, CAN, DB25, and optional LAN, with SCPI support for remote control and automation.
| Models | Available Models | OWH67012, OWH67018, OWH67020, OWH67030, OWH67060 |
| Mounting | Rack Mount | 1U/2U standard 19-inch rack mount |
| Power | Output Power Range | 1200W to 6000W |
| Input | Input Voltage | 85–265Vac |
| Input Frequency | 50/60Hz | |
| Output | OWH67012-80 | 0–80.000V / 0–30.000A / 1200W |
| OWH67012-150 | 0–150.000V / 0–20.000A / 1200W | |
| OWH67012-300 | 0–300.000V / 0–10.000A / 1200W | |
| OWH67018-150 | 0–150.000V / 0–30.000A / 1800W | |
| OWH67020-150 | 0–150.000V / 0–20.000A / 2000W | |
| OWH67020-300 | 0–300.000V / 0–10.000A / 2000W | |
| OWH67020-600 | 0–600.000V / 0–10.000A / 2000W | |
| OWH67030-150A | 0–150.000V / 0–40.000A / 3000W | |
| OWH67030-150 | 0–150.000V / 0–30.000A / 3000W | |
| OWH67030-300 | 0–300.000V / 0–15.000A / 3000W | |
| OWH67030-600 | 0–600.000V / 0–10.000A / 3000W | |
| OWH67060-300 | 0–300.000V / 0–30.000A / 6000W | |
| OWH67060-600 | 0–600.000V / 0–20.000A / 6000W | |
| OWH67060-1200 | 0–1200.000V / 0–10.000A / 6000W | |
| Regulation | CV Load Regulation | ≤0.03% + 0.03%FS |
| CC Load Regulation | ≤0.05% + 0.05%FS | |
| CV Line Regulation | ≤0.03% + 0.03%FS | |
| CC Line Regulation | ≤0.05% + 0.05%FS | |
| Resolution | Setting Resolution | 10mV / 1mA |
| Readback Resolution | 1mV / 1mA | |
| Accuracy | Voltage Setting Accuracy | ≤0.05% + 0.05%FS |
| Current Setting Accuracy | ≤0.1% + 0.1%FS | |
| Voltage Readback Accuracy | ≤0.05% + 0.05%FS | |
| Current Readback Accuracy | ≤0.1% + 0.1%FS | |
| Ripple & Noise | Voltage Ripple | ≤0.1%FS Vp-p |
| Current Noise | ≤50mA RMS for OWH67012/OWH67018/OWH67060; ≤30mA RMS for OWH67020; ≤50mA RMS for OWH67030 | |
| Temperature | Output Temperature Coefficient | 100ppm/°C voltage; 200ppm/°C current |
| Readback Temperature Coefficient | 100ppm/°C voltage; 200ppm/°C current | |
| Dynamic | Recovery Time | ≤5ms, 0%–100% rated load |
| Programming | LIST Waveform Programming | Up to 100 steps |
| Control | Priority Mode | CV/CC priority with adjustable rise/fall time |
| PV Simulation | Solar Panel Simulator | Optional; supports EN50530, Sandia, and other PV standard curves |
| Interfaces | Communication Interfaces | RS485, USB, CAN, DB25, LAN optional |
| Communication | Protocol | SCPI |
| I/O | Analog and Dry Contact | Supported |
| Display | Display | 3.9-inch TFT LCD |
| Monitoring | Data Recording | Online recording of 1-minute voltage/current data |
| Environment | Operating Temperature | 0–40°C |
| Mechanical | Dimensions | 214.6 × 88.0 × 453.0 mm or 425.0 × 88.0 × 453.0 mm |
| Weight | 6.4 kg (OWH67012); 6.8 kg (OWH67018/OWH67020/OWH67030); 13 kg (OWH67060) | |
| Order Information | LAN Option | OWH67-L |
| Solar Panel Simulator Option | OWH67-S |
