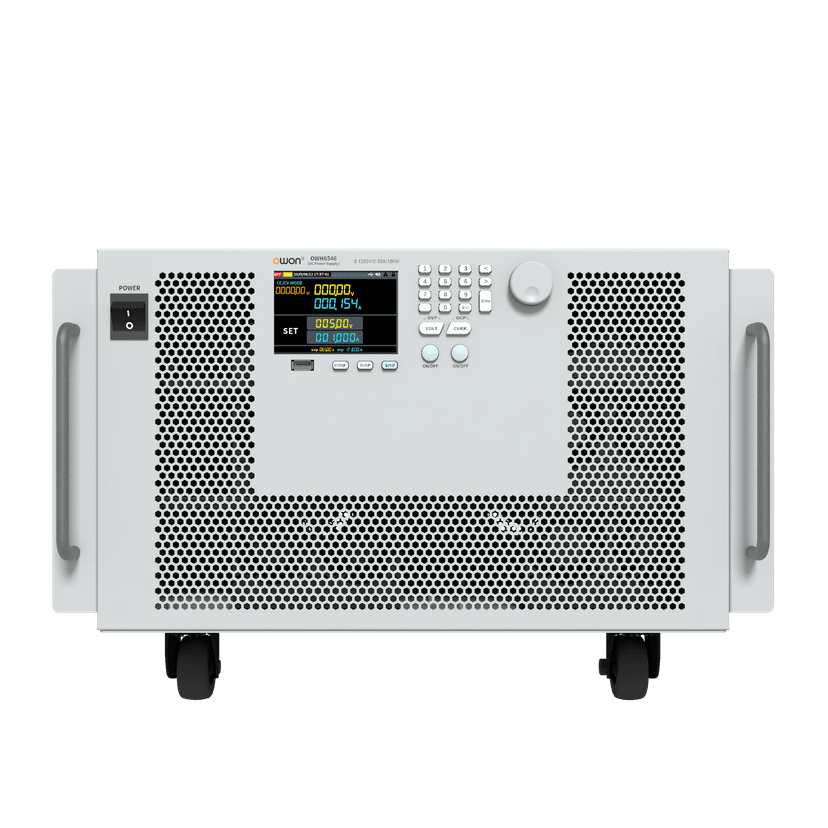

OWON OWH6546 Series High-Voltage Programmable DC Power Supply
- 6U standard rack-mount design
- Compatible with standard 19-inch racks
- Single-channel output
- High-voltage output up to 1200V
- Output current up to 30A
- Maximum output power up to 18kW
- Three-phase input
- 0.05% high-precision voltage control
- 10mV voltage setting and readback resolution
- 1mA current setting and readback resolution
- Selectable CV/CC priority mode
- Up to 100-step LIST sequence programming
- PC remote control
- Built-in P-V curve simulation
- Solar panel I-V characteristic simulation
- Fully digital control
- Over-voltage protection
- Over-current protection
- Over-power protection
- 3.9-inch TFT color display
- Real-time waveform and test parameter display
- USB CDC communication
- RS485 communication
- Ethernet communication
- SCPI compatible
The OWON OWH6546 Series provides a single high-voltage programmable DC output with a maximum voltage of 1200V. The OWH6546 delivers up to 30A and 18kW, while the OWH6546A provides up to 20A and 12kW. Both models use a 3-phase, 4-wire 380Vac ±10% input and provide 10mV/1mA setting and readback resolution. Selectable CV/CC priority modes allow the power supply to adapt to different load characteristics. Up to 100-step LIST sequence programming supports automated testing and PC remote control. A built-in P-V curve simulation function enables simulation of solar panel I-V characteristics for photovoltaic applications. The unit also integrates OVP, OCP, and OPP protection and provides USB, LAN, and RS485 interfaces with SCPI compatibility. A 3.9-inch TFT LCD provides real-time viewing of dynamic waveforms and test parameters.
| Model | Models | OWH6546 / OWH6546A |
| Channels | Channels | 1 |
| Mounting | Form Factor | 6U rack-mounted, standard 19-inch rack |
| Output | Output Voltage | 0–1200V |
| Output Current | 0–30A (OWH6546); 0–20A (OWH6546A) | |
| Output Power | 18kW (OWH6546); 12kW (OWH6546A) | |
| Input | Input Power | 3P4W, 380Vac ±10%, 45–65Hz (L1/L2/L3-N) |
| Regulation | CV Load Regulation | ≤300mV |
| CC Load Regulation | ≤15mA (OWH6546); ≤45mA (OWH6546A) | |
| CV Input Power Regulation | ≤300mV | |
| CC Input Power Regulation | ≤15mA (OWH6546); ≤45mA (OWH6546A) | |
| Resolution | Setting Resolution | 10mV / 1mA |
| Readback Resolution | 10mV / 1mA | |
| Accuracy | Voltage Setting Accuracy | ≤0.05% ± 500mV |
| Current Setting Accuracy | ≤0.1% ± 30mA (OWH6546); ≤0.1% ± 90mA (OWH6546A) | |
| Voltage Readback Accuracy | ≤0.05% ± 500mV | |
| Current Readback Accuracy | ≤0.1% ± 30mA (OWH6546); ≤0.1% ± 90mA (OWH6546A) | |
| Ripple & Noise | Voltage Ripple | ≤2Vp-p |
| Current Noise | ≤150mArms (OWH6546); ≤300mArms (OWH6546A) | |
| Temperature | Output Temperature Drift | 100ppm/°C voltage; 200ppm/°C current |
| Readback Temperature Drift | 100ppm/°C voltage; 200ppm/°C current | |
| Dynamic | Transient Response | ≤5.0ms, 10%–90% rated load |
| Control | Priority Modes | Selectable CV/CC priority |
| Programmability | LIST Sequence | Up to 100 programmable steps |
| PV Simulation | P-V Curve Simulation | Built-in solar panel I-V characteristic simulation |
| Protection | Protection | OVP, OCP, OPP |
| Display | Display | 3.9-inch TFT LCD color display |
| Communication | Interfaces | USB, LAN, RS485 |
| Protocol | SCPI compatible | |
| Environment | Working Temperature | 0–40°C |
| Mechanical | Dimensions | 428 × 274.4 × 511 mm |
| Weight | Approximately 30 kg |
