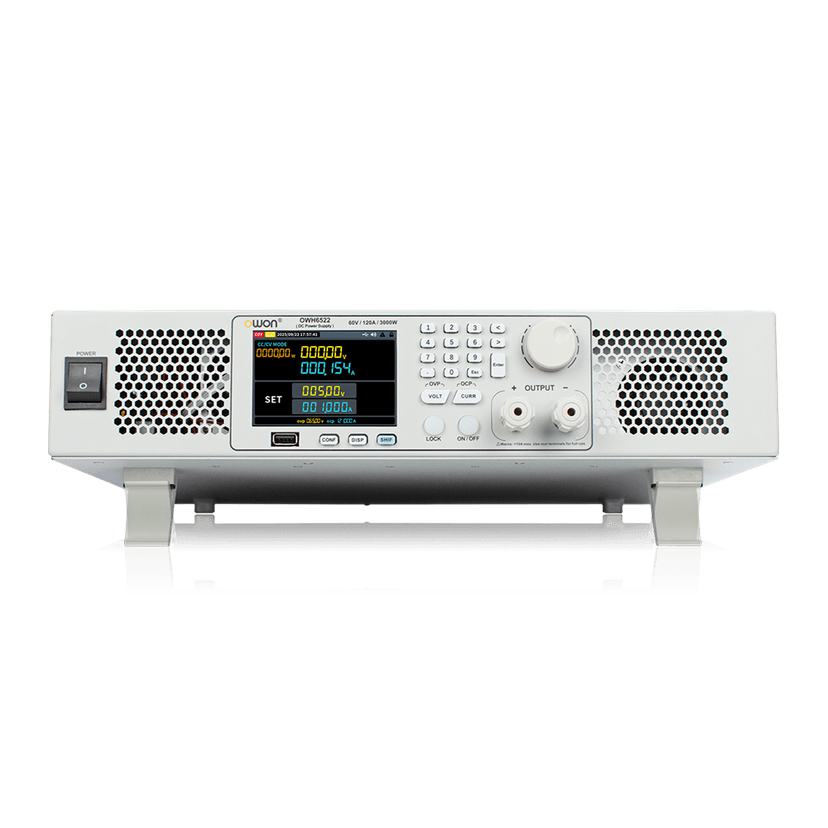

OWON OWH6522 60V/120A Programmable DC Power Supply
- Single-channel programmable DC power supply
- 2U rack-mounted form factor
- Standard 19-inch rack installation
- 0–60V output voltage
- 0–120A output current
- 3000W maximum output power
- High-precision output control up to 0.05%
- 10mV voltage setting and readback resolution
- 1mA current setting and readback resolution
- Selectable CV/CC priority mode
- Up to 100-step LIST sequence programming
- PC remote control
- Built-in P-V curve simulation
- Solar panel I-V characteristic simulation
- Over-voltage protection
- Over-current protection
- Over-power protection
- Fully digital control
- 3.9-inch TFT color display
- Real-time waveform and test parameter display
- USB CDC communication interface
- RS485 communication interface
- Ethernet communication interface
- SCPI compatible
The OWON OWH6522 provides a single programmable DC output with a rated range of 0–60V and 0–120A, delivering up to 3000W of output power. The instrument provides 10mV voltage and 1mA current setting and readback resolution, with voltage setting and readback accuracy of ≤0.05% ± 30mV. Selectable CV/CC priority modes allow the power supply to adapt to different load characteristics. Up to 100-step LIST sequence programming enables automated output sequences and PC-controlled testing. The built-in P-V curve simulation function can simulate solar panel I-V characteristics for photovoltaic testing. The power supply also integrates OVP, OCP, and OPP protection and provides USB, LAN, and RS485 communication interfaces with SCPI compatibility. A 3.9-inch TFT LCD provides real-time viewing of dynamic waveforms and test parameters, while the 2U form factor allows installation in standard 19-inch racks.
| Model | Model | OWH6522 |
| Channels | Channels | 1 |
| Mounting | Form Factor | 2U rack-mounted, standard 19-inch rack |
| Output | Output Voltage | 0–60V |
| Output Current | 0–120A | |
| Maximum Output Power | 3000W | |
| Input | Input Power | 100–240Vac, 45–65Hz |
| Regulation | CV Load Regulation | ≤30mV |
| CC Load Regulation | ≤60mA | |
| CV Input Power Regulation | ≤30mV | |
| CC Input Power Regulation | ≤60mA | |
| Resolution | Setting Resolution | 10mV / 1mA |
| Readback Resolution | 10mV / 1mA | |
| Accuracy | Voltage Setting Accuracy | ≤0.05% ± 30mV |
| Current Setting Accuracy | ≤0.1% ± 120mA | |
| Voltage Readback Accuracy | ≤0.05% ± 30mV | |
| Current Readback Accuracy | ≤0.1% ± 120mA | |
| Ripple & Noise | Voltage Ripple | ≤80mVp-p |
| Current Noise | ≤120mArms | |
| Temperature | Output Temperature Drift | 100ppm/°C voltage; 200ppm/°C current |
| Readback Temperature Drift | 100ppm/°C voltage; 200ppm/°C current | |
| Dynamic | Transient Response | ≤5.0ms, 10%–90% rated load |
| Control | Priority Modes | Selectable CV/CC priority |
| Programmability | LIST Sequence | Up to 100 programmable steps |
| PV Simulation | P-V Curve Simulation | Built-in solar panel I-V characteristic simulation |
| Protection | Protection | OVP, OCP, OPP |
| Display | Display | 3.9-inch TFT LCD color display |
| Communication | Interfaces | USB, LAN, RS485 |
| Protocol | SCPI compatible | |
| Environment | Working Temperature | 0–40°C |
| Mechanical | Dimensions | 428 × 88 × 446 mm |
| Weight | Approximately 13 kg |
