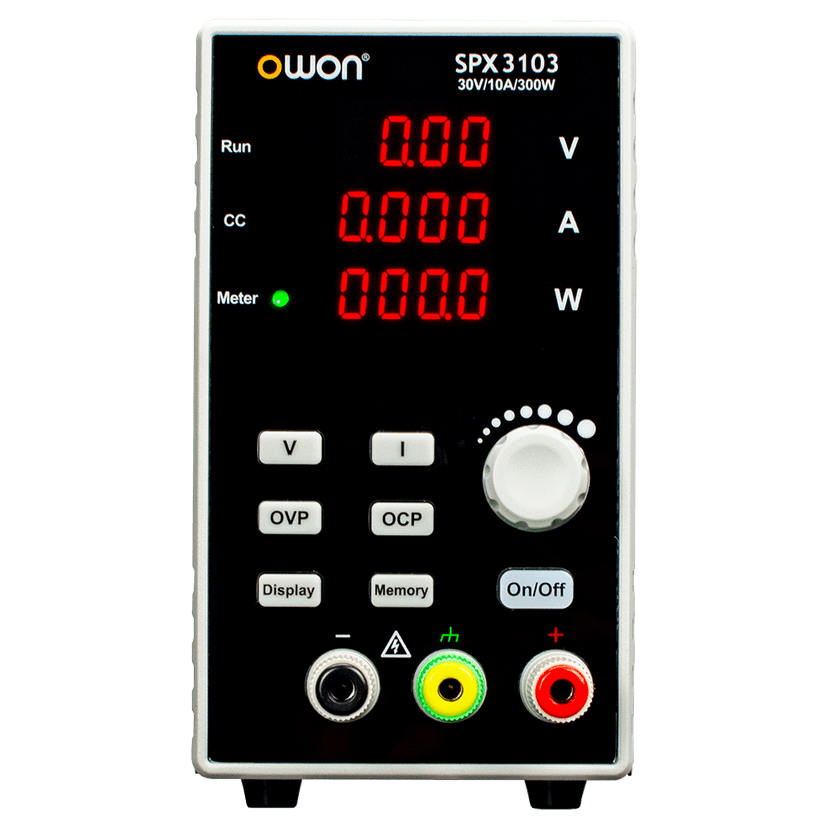

OWON SPX Series Single-channel DC Power Supply
- Single-channel DC output
- Up to 500W output power
- Wide-range constant power output
- 10mV voltage and 1mA current resolution
- Simultaneous set and readback value display
- Real-time output power display
- Intelligent fan speed control
- Automatic CC/CV switching
- OVP, OCP, and OTP protection
- Store and recall up to 3 preset parameters
- Compact and space-saving design
The OWON SPX Series provides single-channel programmable DC power in a compact form factor suitable for bench and testing environments. The series includes models ranging from 300W to 500W, with output configurations up to 60V and 20A. Wide-range constant power output allows flexible voltage and current combinations within the rated power range. The power supply provides 10mV/1mA setting and readback resolution and simultaneously displays set values, measured values, and real-time output power. Automatic CC/CV switching helps adapt the supply to changing load conditions, while OVP, OCP, and OTP protection provide additional safety. Intelligent fan speed control balances cooling performance with operating noise, and three preset parameter memories allow frequently used configurations to be recalled quickly.
| Models | Available Models | SPX3103, SPX6103, SPX6205 |
| Channels | Number of Channels | 1 |
| Output | SPX3103 Rated Output | 0–30V / 0–10A / 300W |
| SPX6103 Rated Output | 0–60V / 0–10A / 300W | |
| SPX6205 Rated Output | 0–60V / 0–20A / 500W | |
| Maximum Output Power | 500W | |
| Power | Constant Power Output | Wide-range constant power output |
| Regulation | Load Regulation | ≤33mV (CV); ≤30mA (CC) |
| Line Regulation | ≤33mV (CV); ≤20mA (CC) | |
| Resolution | Setting Resolution | 10mV / 1mA |
| Readback Resolution | 10mV / 1mA | |
| Accuracy | Setting & Readback Accuracy | ≤0.2% + 0.2%FS |
| Ripple & Noise | Voltage Noise | ≤40mVrms for SPX3103; ≤60mVrms for SPX6103 and SPX6205 |
| Current Noise | ≤40mArms | |
| Dynamic | Transient Recovery Time | ≤5.0ms, 10%–90% rated load |
| Protection | Protection Functions | OVP, OCP, OTP |
| Control | Output Mode | Automatic CC/CV switching |
| Presets | Preset Memory | 3 parameter presets |
| Display | Display Type | 3 × 4-bit LED |
| Displayed Values | Set values, readback values, and real-time output power | |
| Cooling | Cooling System | Fan cooling with intelligent temperature-controlled fan speed |
| Environment | Warm-up Requirement | 30-minute warm-up at operating temperature to meet specifications |
| Mechanical | Dimensions | 82mm × 142mm × 226mm |
| Weight | Approx. 1.5kg for SPX3103; approx. 1.8kg for the higher-power models |
