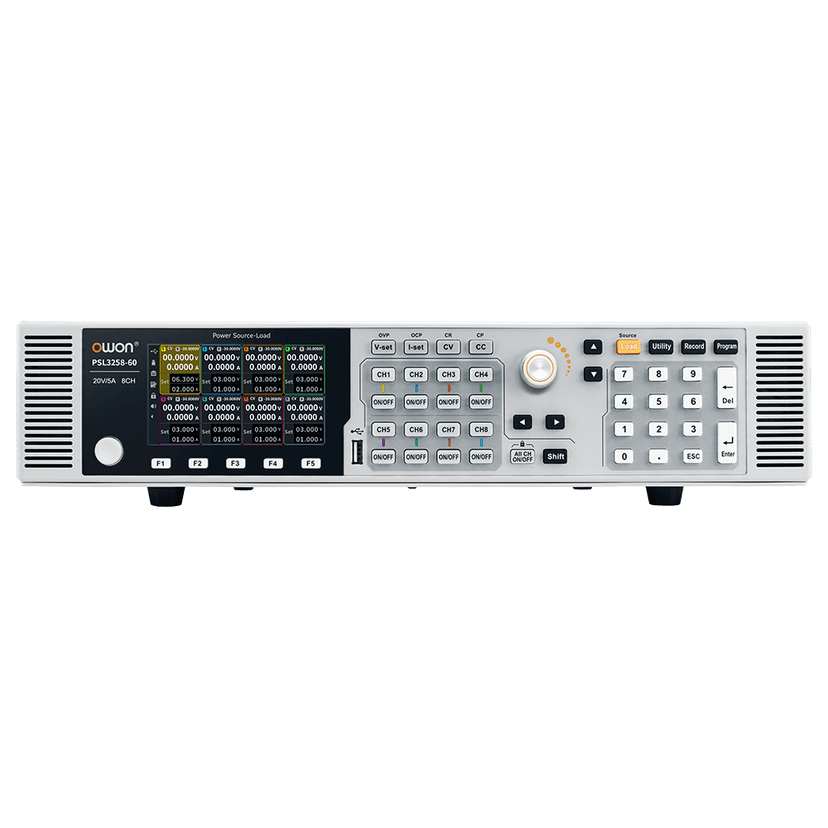

OWON PSL Series 8CH Programmable Source/Load Battery Simulator
- Standard 19-inch 2U chassis
- 8 independent programmable channels
- 480W total output power
- 60W constant power per channel
- 0–21V output voltage per channel
- 0–5A output current per channel
- Supports ±5A current operation
- High setting accuracy up to 1mV / 1mA
- Readback accuracy up to 0.1mV / 0.1μA
- Integrated power supply and electronic load
- Electronic load modes include CP, CC, CV, and CR
- Independent fan and intelligent temperature control for each channel
- OVP protection at 22V
- OCP protection at 5.1A
- 3-inch HD LCD display
- Independent voltmeter interface for remote measurement
- Standard LAN communication
- Optional Type-C, RS232, and RS485 interfaces
- TCP/IP communication support
- USB flash drive or PC-based online firmware upgrade
The OWON PSL3258-60 is an 8-channel programmable source/load battery simulator housed in a standard 19-inch 2U chassis. It provides 480W of total output power, with up to 60W per channel, and supports 0–21V and 0–5A output per channel. The system combines a programmable power supply with an electronic load supporting constant power (CP), constant current (CC), constant voltage (CV), and constant resistance (CR) modes. High-resolution source settings and readback measurements enable precise testing, while the built-in DVM interface provides remote voltage measurement. Standard LAN communication supports TCP/IP control, with Type-C, RS232, and RS485 available as optional interfaces. Each channel incorporates independent intelligent fan cooling, while OVP and OCP protections improve operating safety.
| Model | Model | PSL3258-60 |
| Channels | Number of Channels | 8 CH |
| Output | Total Output Power | 480W |
| Maximum Power | 60W / channel | |
| Voltage Range | 0–21V per channel | |
| Current Range | 0–5A per channel / ±5A | |
| Accuracy | CV Mode Accuracy | ±(0.05% + 0.05% F.S + 20ppm/°C) |
| CC Mode Accuracy | ±(0.05% + 0.05% F.S + 50ppm/°C) | |
| Regulation | Load Regulation | <0.05% voltage; <0.1% current |
| Ripple & Noise | Noise and Ripple | ≤1mVrms; ≤5mVpp |
| DVM | DVM Measurement Range | -10–32V |
| DVM Accuracy | ±(0.05% + 0.05% F.S + 20ppm/°C) | |
| Voltage Measurement | Measured Voltage Range | 0–24V |
| Measured Voltage Accuracy | ±(0.05% + 0.05% F.S + 20ppm/°C) | |
| Current Measurement | 5A Range | -5.5A to +5.5A |
| 5A Range Accuracy | ±(0.05% + 0.05% F.S + 50ppm/°C) | |
| 5mA Range | -5.5mA to +5.5mA | |
| 5mA Range Accuracy | ±(0.05% + 0.05% F.S + 50ppm/°C) | |
| Load | Electronic Load Modes | CP, CC, CV, CR |
| Protection | Over-Voltage Protection | 22V |
| Over-Current Protection | 5.1A | |
| Input | AC Input | 90–264VAC, 47–63Hz |
| Communication | Standard Interface | LAN |
| Optional Interfaces | Type-C / RS232 / RS485 | |
| Communication | TCP/IP | |
| Display | Display | 3-inch HD LCD |
| Cooling | Cooling | Independent fan per channel with intelligent temperature-based speed control |
| Measurement | Remote Measurement | Independent voltmeter interface |
| Upgrade | Firmware Upgrade | USB flash drive upgrade or online upgrade via PC tool |
| Mechanical | Form Factor | 19-inch 2U rack-mount chassis |
