OWON ACP Series AC/DC Power Source
AC Source

OWON ACP Series AC/DC Power Source

  • 2U rack-mount design for standard 19-inch cabinets
  • Adjustable AC voltage output up to 300V
  • Adjustable AC frequency from 40Hz to 400Hz
  • AC output support from 0–300V
  • DC output support on ACP3045 from -450V to +450V
  • Up to 3kVA AC output power
  • Up to 45A peak AC output current
  • Up to 10A DC output current on ACP3045
  • High crest factor of 3
  • List mode for mains simulation and waveform reproduction
  • Transient power interruption simulation
  • Surge and Sag mode for grid disturbance simulation
  • Configurable output start and stop phase angle from 0–360°
  • Built-in relay control output for electrical isolation
  • OVP, OCP, and OPP protection
  • 10mV voltage and 10mA current setting resolution
  • 10mV voltage and 10mA current readback resolution
  • LAN, RS485, and USB communication interfaces
  • SCPI and MODBUS protocol support
  • 3.95-inch TFT LCD display
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

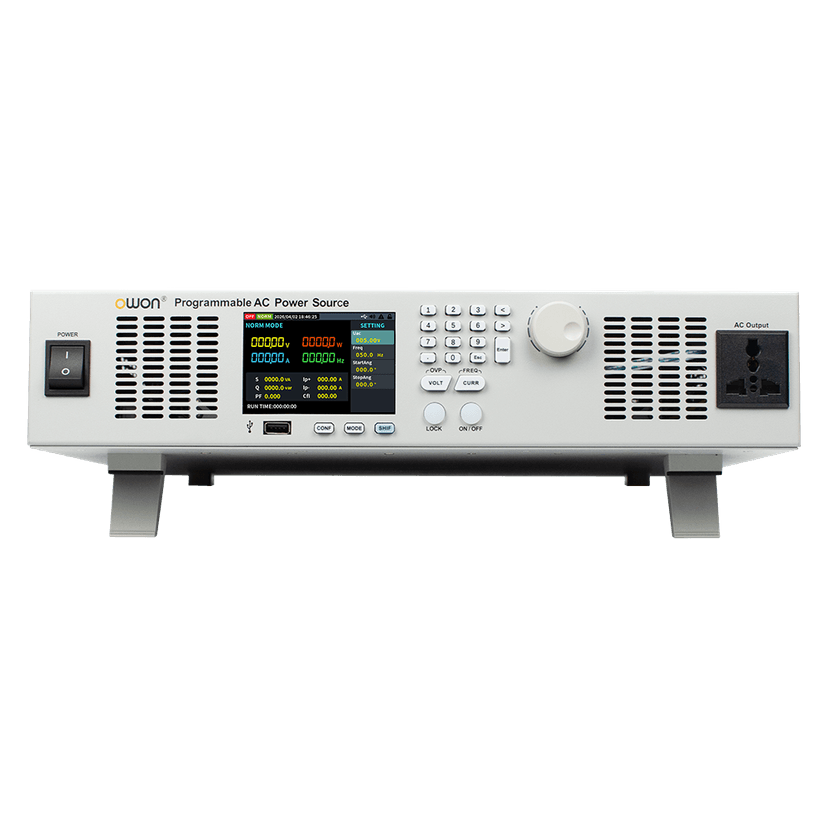

The OWON ACP Series is a 2U rack-mount AC/DC power source designed for programmable power testing and grid simulation. The ACP2000 and ACP3000 provide adjustable AC output from 0–300V and 40–400Hz, while the ACP3045 additionally supports DC output from -450V to +450V with up to 10A current. AC output current is rated up to 15Arms with a 45A peak current capability, while AC output power is available up to 3kVA. List mode supports mains simulation and reproduction, including transient power interruption testing. Surge/Sag mode enables grid disturbance simulation, and output start and stop phase angles can be configured from 0° to 360°. The series incorporates OVP, OCP, and OPP protection, a built-in relay control output, and USB, LAN, and RS485 interfaces with SCPI and MODBUS support.

Specifications
ModelsAvailable ModelsACP2000, ACP3000, ACP3045
ChannelsNumber of Channels1
MountingRack Installation2U rack-mount design; standard 19-inch cabinet
AC OutputAC Voltage Range0–300V
AC Frequency Range40–400Hz
AC Current0–15Arms; 45A peak
AC Output Power2kVA for ACP2000; 3kVA for ACP3000 and ACP3045
DC OutputDC Voltage Range-450V to +450V, ACP3045 only
DC Current0–10A, ACP3045 only
InputInput Voltage100–240Vac
Input Frequency45–65Hz
Maximum Input Current16Arms
RegulationLoad Regulation≤0.1%FS for resistive load
Line Regulation≤0.5%FS for resistive load
ResolutionVoltage Setting Resolution10mV
Current Setting Resolution10mA
Voltage Readback Resolution10mV
Current Readback Resolution10mA
AccuracyVoltage Setting Accuracy≤0.2% + 600mV
Voltage Readback Accuracy≤0.2% + 600mV
Phase ControlStart Phase Angle0–360°
Stop Phase Angle0–360°
Disturbance SimulationList ModeMains simulation, waveform reproduction, and transient power interruption simulation
Surge/Sag ModeGrid voltage surge and voltage sag simulation
Power QualityTotal Harmonic Distortion≤0.6%
Crest Factor3
ProtectionProtection FunctionsOVP, OCP, OPP
IsolationRelay ControlBuilt-in relay control output for electrical isolation
TemperatureTemperature Coefficient±0.04% per degree from 25°C
EnvironmentOperating Temperature0–40°C
DisplayDisplay3.95-inch TFT LCD
CommunicationInterfacesUSB, LAN, RS485
ProtocolsSCPI and MODBUS
MechanicalDimensions428 × 88.0 × 446.2 mm
WeightApprox. 11kg
