Digital Power Meter

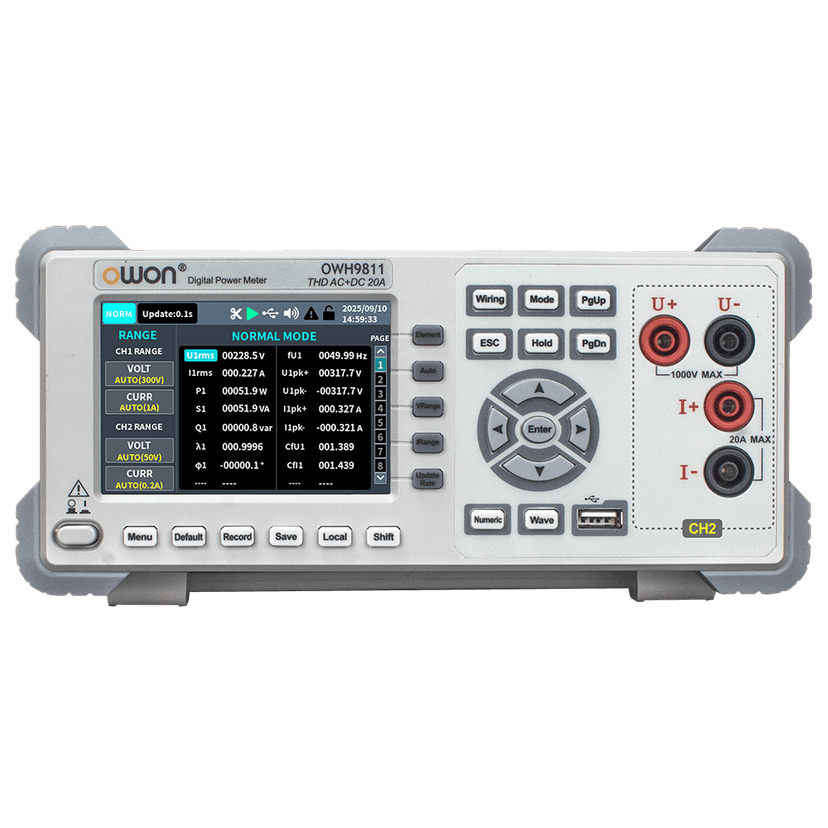

OWH9800 Series Power Meter
- Two-channel measurement design
- CH1 rear-panel AC input: 3-600Vrms and 0-20Arms
- CH2 front-panel AC/DC input: up to 1000V and 20A
- Supports single-phase and three-phase measurements
- Measures 16 common electrical parameters
- Harmonic analysis up to the 63rd order
- Automatic conversion-efficiency calculation using input/output power
- Trend waveform display for dynamic parameter analysis
- 3.95-inch TFT LCD display
- RS232 interface for remote monitoring and data logging
- SCPI protocol support
- Modbus protocol support
- Watt-hour (Wh) and Ampere-hour (Ah) integration functions
- Display hold function
- Mute function
- Key lock function
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OWON OWH9800 Series is designed for electrical power measurement and analysis. It features a 3.95-inch TFT display and adjustable update rates from 0.1s to 5s. Measurement functions include voltage, current, active power, apparent power, reactive power, power factor, frequency, crest factor, peak values, and THD. The instrument supports harmonic analysis with up to 63rd-order harmonics and provides integration measurements for Wh and Ah. Its RS232 interface supports SCPI and Modbus protocols for remote control, monitoring, and data logging.
Available models
| Model |
|---|
| OWH9811 |
| OWH9830 |
Specifications
| Models | Models | OWH9811, OWH9830 |
| Display | Display | 3.95-inch TFT Screen |
| Update Rate | 0.1s, 0.2s, 0.5s, 1s, 2s, 5s | |
| Measurement | Measurement Items | V, A, W, VA, var, λ, fU, CfU, CfI, Upk, Ipk, THD |
| OWH9811 Measurement Method | CH1: 1ph-AC; CH2: 1ph-AC+DC | |
| OWH9830 Measurement Method | CH1: 3ph-AC; CH2: 1ph-AC+DC | |
| Voltage | CH1 Voltage Measurement Range | 3.0V-600Vrms |
| CH2 Voltage Measurement Range | 0V-1000Vpk | |
| CH1 Voltage Ranges | CF=3: 75V/150V/300V/600V; CF=6: 37.5V/75V/150V/300V | |
| CH2 Voltage Ranges | 50V/100V/500V/1000V | |
| Voltage Accuracy | ±(0.4% of reading + 0.1% of range + 1 digit) | |
| Voltage Resolution | 0.01V/0.1V | |
| Current | CH1 Current Measurement Range | 0-20.0Arms |
| CH2 Current Measurement Range | 0-20Apk | |
| CH1 Current Ranges | CF=3: 0.2A/1A/4A/20A; CF=6: 0.1A/0.5A/2A/10A | |
| CH2 Current Ranges | 0.2A/1A/4A/20A | |
| Current Accuracy | ±(0.4% of reading + 0.1% of range + 1 digit) | |
| Current Resolution | 0.001A | |
| Power | Power Range | 0-12kW / 0-20kW / 0-36kW / 0-20kW depending on measurement configuration |
| Power Accuracy | ±(0.4% of reading + 0.1% of range + 1 digit) | |
| Power Resolution | 0.01W/0.1W/1W | |
| Power Supply | AC 100V-240V, 50/60Hz | |
| Power Factor | Power Factor Range | -1.000 to 1.000 |
| Power Factor Accuracy | ±(0.4% of reading + 0.1% of range + 1 digit) | |
| Frequency | Operating Frequency | 40Hz-70Hz; DC+40Hz-70Hz |
| Frequency Accuracy | ±(0.1% of reading + 1 digit) | |
| Harmonic Analysis | Harmonic Bandwidth | 2.8kHz bandwidth |
| Harmonic Order | Up to 63rd order | |
| Integration | Integration Function | Watt-hour (Wh), Ampere-hour (Ah) |
| Peak | Peak Current | 60A for CH1; 30A for CH2 |
| Input | Maximum Continuous Input | CH1: Vrms=700V, Irms=24A; CH2: Vpk=1100V, Ipk=24A |
| Interface | Interface | RS232 |
| Communication | Communication Protocol | Standard SCPI, Modbus protocol |
| Baud Rate | 4800, 9600 (default), 19200, 38400, 57600, 115200 bps | |
| Functions | Display Hold | Yes |
| Mute | Yes | |
| Key Lock | Yes | |
| Environment | Operating Environment | 18°C-28°C, 30%-75% RH |
| Storage Environment | -10°C to 50°C, ≤80% RH, non-condensing | |
| Operating Altitude | ≤2000 meters | |
| Warm-up | Warm-up Time | >30 minutes |
| Mechanical | Weight | 1.3kg |
| Dimensions | 295mm(W) × 110mm(H) × 235mm(L) |
