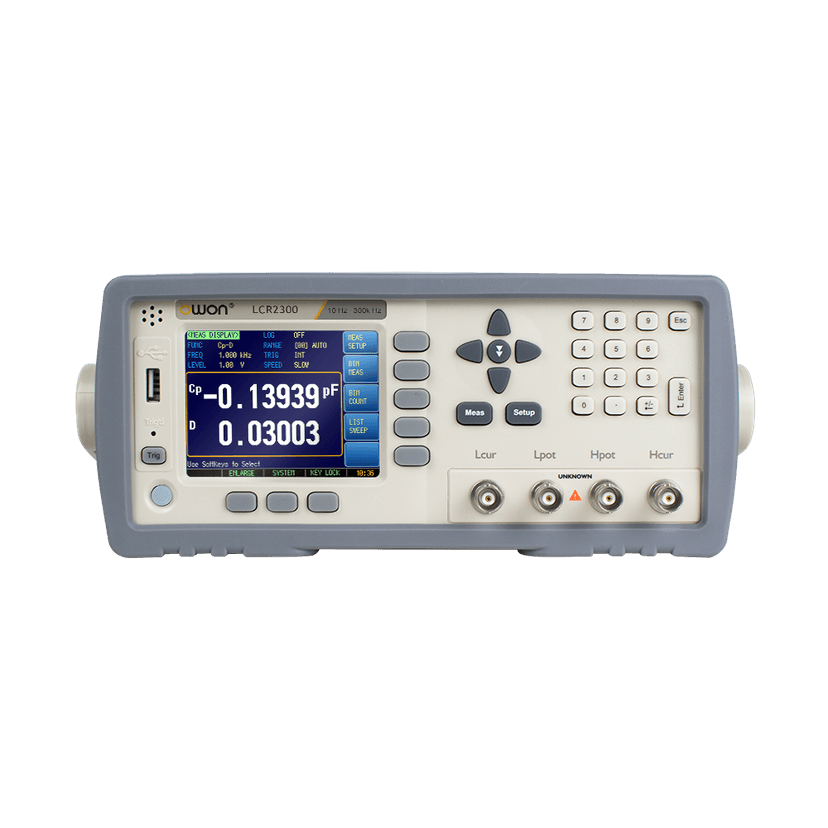

LCR2000 Series LCR Meter
- Basic accuracy up to 0.05%
- Measurement speed up to 40 times per second
- Consecutive test frequency for efficient component testing
- Supports 9-range test with Auto, Hold, and Nominal range modes
- Nominal range automatically selects the best measurement range based on nominal value
- Supports DCR measurement
- Built-in internal DC bias voltage from -2.50 V to +2.50 V
- 3.5-inch color LCD display
- Supports OPEN/SHORT correction function
- Internal, manual, external, and remote trigger modes
- Built-in memory with storage for up to 10 files
- USB Host / Device, RS-232C, and Handler interfaces
- Supports SCPI and Modbus RTU communication protocols
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The Owon LCR2000 Series LCR Meter provides precise and efficient measurement for electronic components and circuits. The series offers multiple test functions including Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-θr, Z-θd, and DCR. Depending on the model, test frequencies range from 10 Hz up to 300 kHz, with basic accuracy of up to 0.05% and measurement speeds of up to 40 measurements per second. The instrument also provides internal DC bias, multiple ranging modes, correction functions, memory storage, flexible triggering, and USB, RS-232C, and Handler interfaces for automated testing and system integration.
Specifications
| Models | Available Models | LCR2300, LCR2200, LCR2100, LCR2020 |
| Measurement | Test Function | Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-θr, Z-θd, DCR |
| Monitor Parameter | Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, △, △% | |
| Test Frequency | LCR2300: 10 Hz–300 kHz; LCR2200: 10 Hz–200 kHz; LCR2100: 10 Hz–100 kHz; LCR2020: 10 Hz–20 kHz | |
| Basic Accuracy | 0.05% (Slow/Medium); 0.1% (Fast) | |
| Measurement Speed | 40 times/s, 10 times/s, 3 times/s | |
| Display Range | L: 0.00001 µH–9999.99 H; C: 0.00001 pF–9999.99 mF; R, X, Z: 0.00001 Ω–99.9999 MΩ; B, G: 0.01 nS–999.999 S; D: 0.00001–9.99999; Q: 0.00001–99999.9; θd: -179.999°–179.999°; θr: -3.14159–3.14159; %: -999.999%–999.999% | |
| Electrical | Output Impedance | 30 Ω, 50 Ω, 100 Ω |
| Internal DC Bias | -2.50 V to +2.50 V | |
| Ranging | Ranging | Auto, Hold, and Nominal range; total 9 ranges |
| Correction | Correction Function | OPEN/SHORT |
| Interface | Interfaces | USB Host / Device, RS-232C, Handler |
| Communication | Communication Protocol | SCPI and Modbus RTU |
| Trigger | Trigger Mode | Internal, Manual, External, and Remote Trigger |
| Memory | Memory | Built-in storage for up to 10 files |
| Display | Display | 3.5-inch color LCD |
| Beep | Beep Feature | OFF/PASS/FAIL and HIGH/LOW tone |
