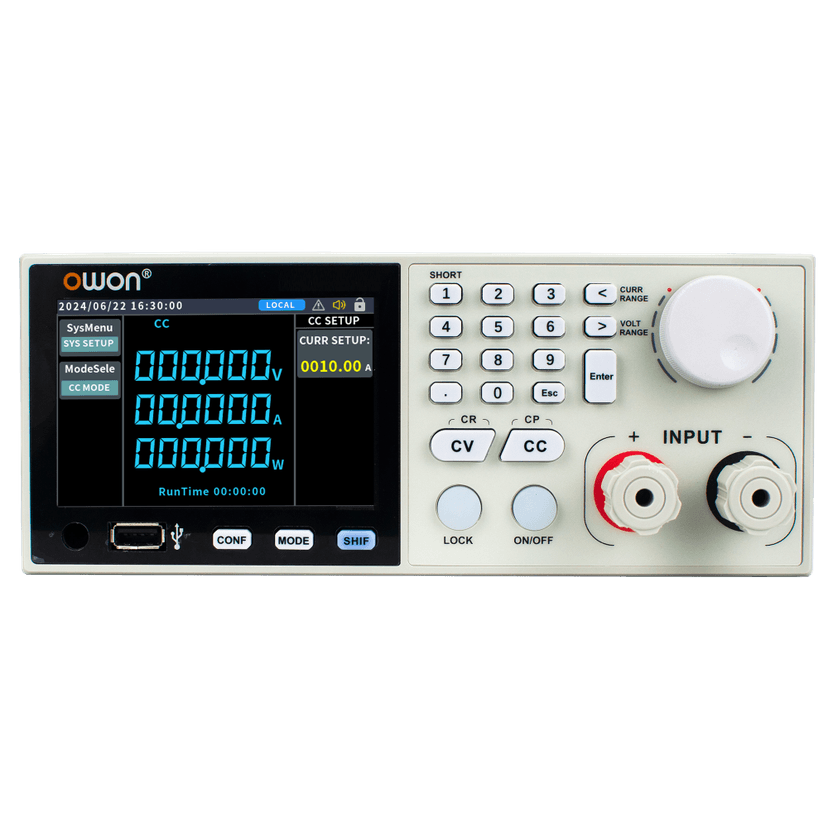

OEL85 Series DC Electronic Load
DC Electronics Load

OEL85 Series DC Electronic Load

  • Dynamic mode up to 5kHz
  • Readback resolution of 1mV / 0.1mA
  • Four static operating modes: CC, CV, CR, and CP
  • Supports CC dynamic mode
  • Supports short-circuit simulation
  • Adjustable current rise time from 0.001A/μs to 2A/μs
  • Overvoltage protection
  • Overcurrent protection
  • Overpower protection
  • Overtemperature protection
  • Reverse voltage protection
  • Supports multi-unit parallel operation except in CV mode
  • Up to 10 units can be expanded through RS485 for a total system power of up to 4kW
  • Optional Battery Discharge Test, OCP Test, and OPP Test functions
  • Built-in RS232 and USB Device interfaces
  • SCPI protocol support
  • PC communication support
  • 1/2 2U standard rack-mount size
  • 3.9-inch TFT LCD display
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The OWON OEL85 Series DC Electronic Load provides four static operating modes: constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CP). It supports dynamic loading with T1/T2 timing from 0.1ms to 50s and adjustable rise/fall slopes up to 2000A/ms. The series supports short-circuit simulation and can be expanded through RS485 by connecting multiple units in parallel, except in CV mode. Up to 10 units can be combined for a total system power of up to 4kW. Optional functions include battery discharge testing, over-current protection testing, and over-power protection testing.

Available models
ModelPowerInput Voltage
OEL8513500W0 ~ 150V
OEL8512400W0 ~ 150V
OEL8512B400W0 ~ 300V
OEL8512C400W0 ~ 600V
OEL8511200W0 ~ 150V
OEL8511B200W0 ~ 300V
OEL8511C200W0 ~ 600V
Specifications
ModelsAvailable ModelsOEL8513, OEL8512, OEL8512B, OEL8512C, OEL8511, OEL8511B, OEL8511C
InputRated Input Voltage0 ~ 150V / 0 ~ 300V / 0 ~ 600V depending on model
Rated Input CurrentUp to 40A depending on model
Rated Input Power200W / 400W / 500W depending on model
Operating ModesStatic ModesCC, CV, CR, CP
CV ModeCV Range0 ~ 150V / 0 ~ 300V / 0 ~ 600V depending on model
CV Resolution1mV
CC ModeCC Range0 ~ 40A / 0 ~ 20A depending on model
CC Resolution1mA
CR ModeCR Range0.05Ω ~ 7.5kΩ
CP ModeCP RangeUp to 500W / 400W depending on model
CP Resolution10mW
Dynamic ModeT1 & T20.1ms ~ 50s
Rise/Fall Slope0.01A/ms ~ 2000A/ms
Minimum Rise Time20μs
ReadbackVoltage Resolution1mV
Current Resolution0.1mA
Power Resolution10mW
ProtectionProtection FunctionsOverpower, Overvoltage, Overcurrent, Overtemperature, Reverse Voltage
CommunicationInterfacesRS232 and USB Device
ProtocolSCPI
ExpansionParallel OperationSupports multi-unit parallel operation except CV mode; up to 10 units and 4kW total
Optional FunctionsTesting FunctionsBattery Discharge Test, OCP Test, OPP Test (OEL-T1)
MechanicalDimensions215 × 88 × 375mm (L × W × D)
WeightApprox. 4.2kg ~ 5kg depending on model
