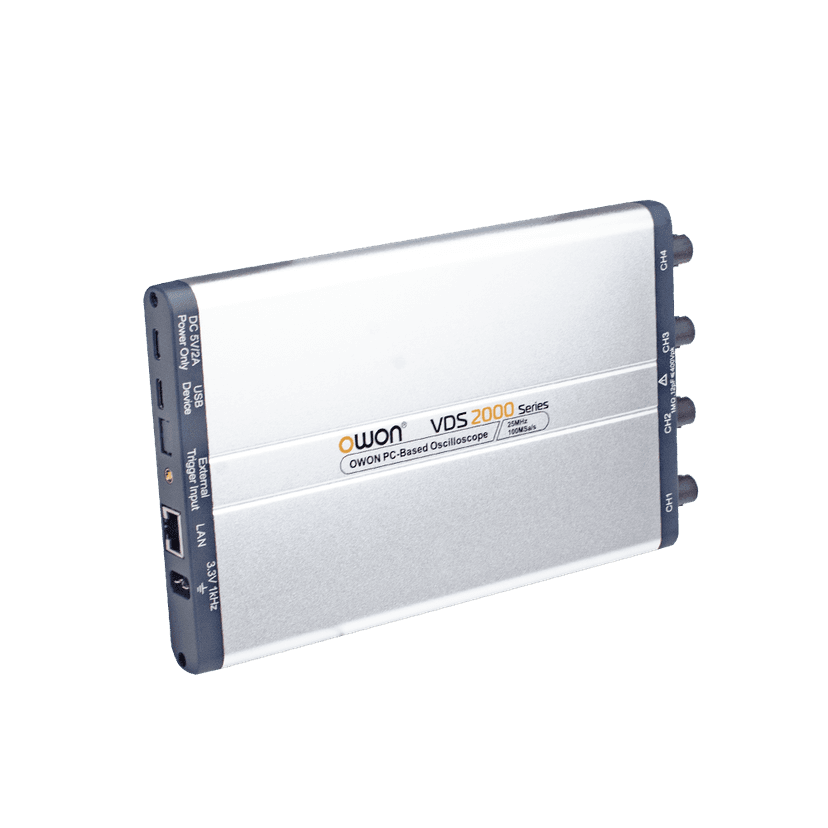

VDS2000 Series PC Oscilloscope
- PC-based digital oscilloscope for computer-controlled measurement
- Aluminum alloy enclosure for improved durability and corrosion resistance
- Cross-platform SDK support for Android, macOS, Windows, and Linux
- Ultra-slim 18 mm thick design
- 2-channel and 4-channel models
- 25 MHz bandwidth
- 100 MSa/s sampling rate
- 1M record length per channel
- 8-bit vertical resolution
- 20 built-in automatic measurement functions
- Multiple trigger modes including Edge, Video, Slope, and Pulse
- Auto, Normal, and Single trigger modes
- Sample, Peak Detect, and Average acquisition modes
- USB Type-C interface
- LAN connectivity on applicable models
- USB interface isolation available on VDS-I models
- Low power consumption for extended operation
- Compact design for embedded systems and space-limited test benches
The OWON VDS2000 Series combines a compact hardware design with PC-based oscilloscope functionality. The series includes 2-channel and 4-channel models with 25 MHz bandwidth, 100 MSa/s sampling rate, 8-bit vertical resolution, and 1M record length per channel. It supports Sample, Peak Detect, and Average acquisition modes along with Edge, Video, Slope, and Pulse trigger types. Twenty automatic measurements are available for analyzing voltage, timing, frequency, duty cycle, and waveform characteristics. The VDS-I models provide USB interface isolation to help protect the computer and measured analog signals from power supply and ground-loop interference. With USB Type-C connectivity, LAN on applicable models, cross-platform SDK support, low power consumption, and an 18 mm ultra-slim aluminum alloy enclosure, the VDS2000 Series is suitable for laboratory, industrial, embedded, and field measurement applications.
| Models | Available Models | VDS2252, VDS2254, VDS2252I, VDS2254I |
| Performance | Bandwidth | 25 MHz |
| Rise Time | ≤14 ns | |
| Channels | Channel Count | 2 or 4 channels, depending on model |
| Sampling | Sampling Rate | 100 MSa/s |
| Vertical | Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 10 V/div, in 1-2-5 steps | |
| Vertical Position | ±2 V (2 mV/div–200 mV/div); ±40 V or ±100 V (500 mV/div–10 V/div), depending on model | |
| Accuracy | DC Gain Accuracy | ±3% |
| Timebase | Horizontal Scale | 5 ns/div to 1000 s/div, in 1-2-5 steps |
| Acquisition | Sampling Mode | Sample, Peak Detect, Average |
| Memory | Record Length | 1M points per channel |
| Input | Input Coupling | DC, AC, Ground |
| Input Impedance | 1 MΩ ±2%, parallel with 12 pF ±5 pF | |
| Maximum Input Voltage | 40 V or 400 V (DC + AC peak), depending on model | |
| Isolation | Channel Isolation | 100:1 @ 50 Hz; 40:1 @ 10 MHz |
| Communication Interface Isolation | Available on VDS-I models | |
| Trigger | Trigger Type | Edge, Video, Slope, Pulse |
| Trigger Mode | Auto, Normal, Single | |
| Video Trigger Standards | NTSC, PAL, and SECAM | |
| Measurement | Automatic Measurements | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Frequency, Period, Rise Time, Fall Time, Delay A→B, +Width, -Width, +Duty, -Duty |
| Interface | Communication Interface | USB Device (Type-C); LAN available on applicable models |
| Power | Power Source | DC 5 V |
| Power Consumption | ≤5 W to ≤8 W, depending on model | |
| Software | SDK Platform Support | Android, macOS, Windows, and Linux |
| PC Control | Supports PC software and remote oscilloscope operation | |
| Physical | Dimensions | 190 mm × 18 mm × 120 mm (W × H × D) |
| Weight | Approximately 0.38 kg |
