Automotive Diagnostics Kits
- Complete automotive diagnostic solution for vehicle electrical and electronic systems
- Oscilloscope-based automotive waveform testing
- Supports automotive ignition system diagnostics
- Supports engine sensor testing and waveform analysis
- Supports crankshaft and camshaft sensor testing
- Supports ABS and wheel speed sensor diagnostics
- Supports throttle position, accelerator pedal, knock, coolant temperature, MAP, and oxygen sensor testing
- Supports injector, fuel pump, glow plug, EGR, purge solenoid, and other engine component testing
- Supports starting and charging system diagnostics
- Supports alternator ripple, voltage, and current testing
- Supports automotive communication bus diagnostics
- Supports CAN, LIN, K-Line, and FlexRay signal analysis on compatible systems
- Built-in automotive reference waveform library
- Supports waveform recording and replay
- Supports comparison of measured waveforms with reference waveforms
- Includes specialized automotive test probes and connection accessories
- Portable solution suitable for automotive workshops and field diagnostics

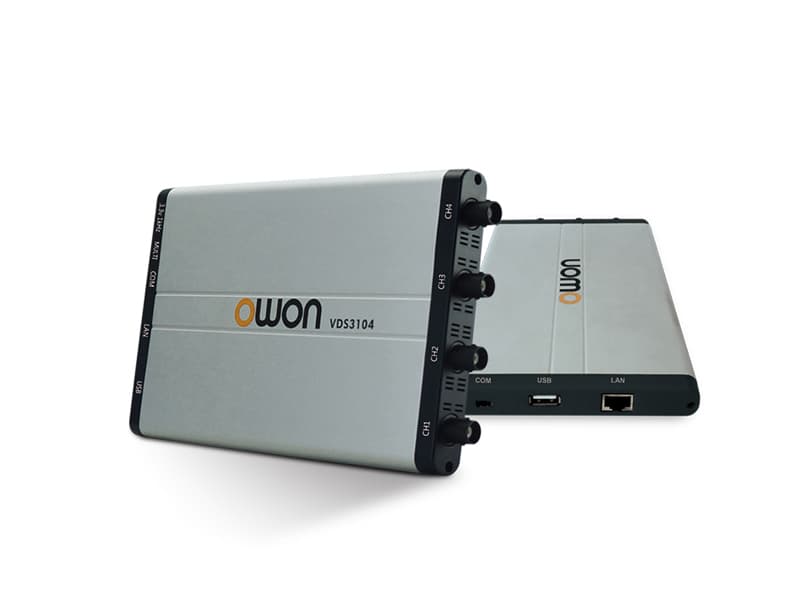

OWON automotive diagnostic solutions provide waveform-based testing for modern vehicle electrical and electronic systems. Depending on the kit configuration, the system can support ignition testing, sensor diagnostics, engine component testing, starting and charging analysis, and automotive bus diagnosis. Dedicated automotive reference waveforms allow technicians to compare measured signals against known-good patterns for faster fault identification. Available kit configurations can include multi-channel PC oscilloscopes such as the VDS2064 and VDS3104, which provide 60 MHz or 100 MHz bandwidth, 1 GS/s sampling, 5M record length, waveform recording and replay, and automotive reference waveforms. Typical accessories include high-tension ignition pickups, BNC test leads, alligator clips, insulation-piercing test clips, attenuators, back-pinning probes, USB cables, and portable carrying cases.
| Application | Primary Use | Automotive electrical and electronic diagnostics |
| Diagnostics | Ignition System | Primary and secondary ignition voltage, current, trigger, and feedback signal testing |
| Sensor Testing | Crankshaft, camshaft, ABS, throttle position, accelerator pedal, knock, oxygen, MAP, coolant temperature, and speed sensors | |
| Engine Testing | Injectors, glow plugs, fuel pumps, pressure control valves, purge solenoids, EGR systems, cooling fans, and related engine components | |
| Starting & Charging | Starter and charging circuit analysis, alternator ripple, voltage and current testing, and relative compression testing | |
| Bus Diagnosis | CAN, LIN, K-Line, and FlexRay physical-layer signal analysis on compatible systems | |
| Analysis | Reference Waveforms | Automotive reference waveform library for waveform comparison and fault diagnosis |
| Waveform Record & Replay | Supported on compatible automotive diagnostic oscilloscope kits | |
| Kit | Typical Oscilloscope | VDS2064 or VDS3104 automotive diagnostic configuration |
| Oscilloscope | Bandwidth | 60 MHz or 100 MHz, depending on oscilloscope model |
| Channels | 4 channels | |
| Sample Rate | 1 GS/s | |
| Record Length | 5M points | |
| Accessories | Ignition Pickup | High-tension ignition pickup |
| Test Leads | BNC to 4 mm test lead and BNC plug to alligator clips cable | |
| Alligator Clips | Set of two large alligator clips and set of two small alligator clips | |
| Insulation-Piercing Clips | Insulation piercing non-destructive test clip | |
| Attenuator | 20:1 attenuator | |
| Back-Pinning Probes | Back-pinning probe set | |
| Other | USB cable, CD, and portable carrying case |
