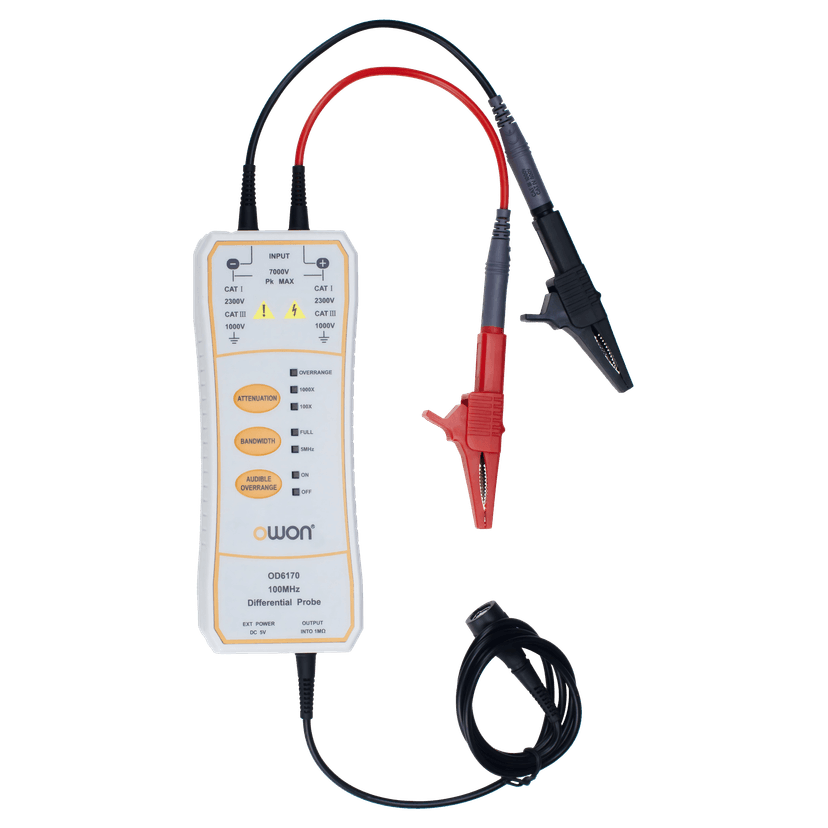

OD6000 Series High-Voltage Differential Probes
- High-voltage differential measurement for oscilloscope applications
- Bandwidth options up to 200 MHz
- Maximum differential measurement voltage up to ±7000 V DC + Peak AC
- Maximum common-mode voltage up to ±7000 V DC + Peak AC
- High common-mode rejection ratio (CMRR)
- Measurement accuracy of ±2%
- Over-range audible and visual alarm
- Red overload indicator light
- Audible overload alarm can be disabled
- Automatic saving of current settings
- Adjustable offset function
- USB-powered operation for convenient use
- Multiple attenuation ratios available
- High input impedance for reduced circuit loading
- 5 MHz bandwidth limit function
- Designed for high-voltage oscilloscope measurements
- Safety compliance with EN61010-1:2010
- EMC compliance with EN61326-1:2013 and applicable EN61000 standards
The OD6000 Series provides high-voltage differential probing for oscilloscope-based measurements where direct connection to conventional oscilloscope inputs may be unsuitable. Depending on the model, the probes offer bandwidths from 50 MHz to 200 MHz and attenuation ratios ranging from 10X/100X to 1000X. Maximum differential measurement voltage ranges from ±70 V to ±7000 V DC + Peak AC, while common-mode voltage capability reaches up to ±7000 V on applicable models. The probes provide ±2% measurement accuracy, high input impedance, low input capacitance, and high CMRR to minimize loading and improve signal integrity. Built-in overload visual and audible alarms help alert users when measurement limits are exceeded. Automatic setting storage and adjustable offset functions improve convenience during repeated measurements, while USB 5 V/1 A power provides a simple power solution.
| Models | Available Models | OD6007, OD6015, OD6115, OD6215, OD6128, OD6070, OD6170 |
| Performance | Bandwidth | 50 MHz to 200 MHz, depending on model |
| CMRR | >80 dB (DC), >60 dB (100 kHz), >50 dB (1 MHz), >30 dB (3.2 MHz), >26 dB (50 MHz) | |
| Delay Time | Approximately 14 ns to 21 ns, depending on model | |
| Attenuation | Attenuation Ratio | 10X/100X, 50X/500X, 100X/1000X, or 1000X, depending on model |
| Voltage | Maximum Differential Measurement Voltage | ±70 V to ±7000 V DC + Peak AC, depending on model and attenuation ratio |
| Maximum Common-Mode Voltage | Up to ±7000 V DC + Peak AC, depending on model | |
| Accuracy | Measurement Accuracy | ±2% |
| Zero Point Accuracy | 5 mV | |
| Input | Input Impedance | Single-ended to ground: 2.5 MΩ, 5 MΩ, or 20 MΩ ±1%; between input terminals: 5 MΩ, 10 MΩ, or 40 MΩ ±1%, depending on model |
| Input Capacitance | Single-ended to ground: <4 pF or <5 pF; between input terminals: <2 pF or <2.5 pF, depending on model | |
| Bandwidth Limit | Bandwidth Limit | 5 MHz, with ≥-3 dB @ 5 MHz |
| Protection | Overload Indicator | Red overload indicator light |
| Overload Alarm | Audible alarm with option to turn it off | |
| Settings | Auto-Save | Automatically saves current settings |
| Adjustable Offset | Adjustable when entering test mode | |
| Safety | Safety Ratings | Model-dependent ratings including 600 V CAT I, 450 V CAT II, 1000 V CAT II, 600 V CAT III, and 2300 V CAT I / 1000 V CAT III |
| Connection | Terminal Load Requirement | ≥100 kΩ |
| Power | Power Supply | USB 5 V/1 A adapter |
| Standards | Safety Standard | EN61010-1:2010 |
| EMC Standards | EN61326-1:2013; EN61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2013 |
