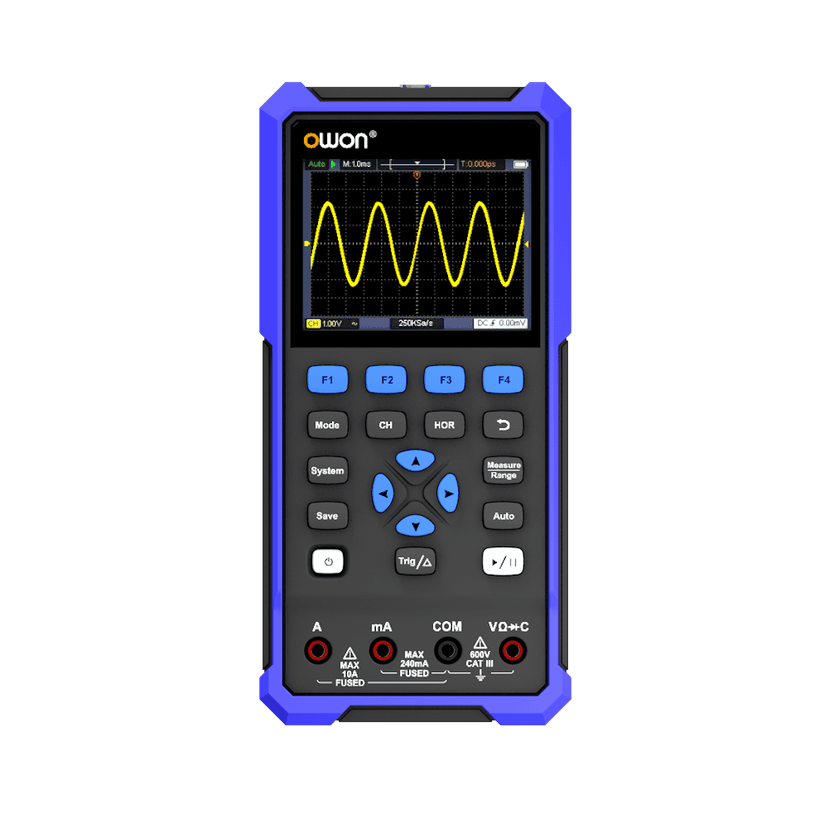

OWON HDS200 1CH Series Digital Oscilloscope
- 3-in-1 multifunction instrument combining oscilloscope, multimeter, and waveform generator
- Single-channel digital oscilloscope
- 40 MHz bandwidth on HDS241
- 70 MHz bandwidth on HDS271
- 250 MSa/s sampling rate
- 4K or 8K record length
- Waveform refresh rate up to 10,000 wfms/s
- 3.5-inch high-resolution, high-contrast color LCD display
- Designed for portable and outdoor use
- 24000-count digital multimeter display
- Supports voltage, current, resistance, capacitance, diode, and continuity testing
- Supports auto-ranging and TRMS measurement
- Built-in waveform generator
- Supports sine, square, ramp, and pulse waveform outputs
- Maximum waveform output frequency up to 100 kHz
- USB Type-C interface
- Supports power bank operation and PC software connection
- SCPI support for secondary development
- Edge trigger support
- Automatic waveform and cursor measurements
The OWON HDS200 1CH Series integrates an oscilloscope, multimeter, and waveform generator into a portable single-channel instrument. The HDS241 provides 40 MHz bandwidth while the HDS271 provides 70 MHz bandwidth, with both models offering a 250 MSa/s sampling rate, 4K or 8K record length, and waveform refresh rates up to 10,000 wfms/s. The oscilloscope supports sampling and peak detection, Edge triggering, automatic measurements, and ΔV/ΔT cursor measurements. The integrated multimeter provides 24000-count readings and supports voltage, current, resistance, capacitance, continuity, and diode testing, with auto-ranging and TRMS functionality. The waveform generator provides sine, square, ramp, and pulse outputs, with frequencies up to 100 kHz for sine, square, and ramp waveforms and up to 10 kHz for pulse output. USB Type-C connectivity supports power bank use and PC software connection, while SCPI support enables remote control and secondary development.
| Models | Available Models | HDS241, HDS271 |
| Performance | Bandwidth - HDS241 | 40 MHz |
| Bandwidth - HDS271 | 70 MHz | |
| Waveform Refresh Rate | 10,000 wfms/s | |
| Channels | Channels | 1 |
| Sampling | Sampling Rate | 250 MSa/s |
| Acquisition | Sampling Method | Sampling, Peak Detection |
| Memory | Record Length | 4K or 8K |
| Input | Input Coupling | DC, AC, GND |
| Maximum Input Voltage | 400 V (DC + AC, peak-to-peak) | |
| Probe | Probe Attenuation | 1X, 10X, 100X, 1000X, 10000X |
| Timebase | Sweep Speed | 5 ns/div to 1000 s/div, in 1-2-5 steps |
| Vertical | Sensitivity | 10 mV/div to 10 V/div |
| Trigger | Trigger Type | Edge |
| Measurement | Automatic Measurements | Period, Frequency, Mean, PK-PK, Max, Min, Amplitude, RMS |
| Cursor | Cursor Measurement | ΔV, ΔT |
| Display | Display | 3.5-inch LCD |
| Interface | Communication Interface | USB Type-C |
| Communication | SCPI Support | Supported for secondary development |
| Multimeter | Digital Display | 24000 readings |
| Measurement Type | Voltage, Current, Resistance, Capacitance, Continuity, Diode | |
| Maximum Input Voltage | AC 750 V; DC 1000 V | |
| Maximum Input Current | AC 10 A; DC 10 A | |
| Diode Test | 0–2 V | |
| Continuity | <50 Ω | |
| Auto Range | Supported | |
| TRMS | Supported | |
| Waveform Generator | Standard Waveforms | Sine, Square, Ramp |
| Sine / Square / Ramp Frequency | 10 Hz to 100 kHz, in 1-2-5 steps | |
| Pulse Frequency | 10 Hz to 10 kHz, in 1-2-5 steps | |
| Amplitude | 1 Vpp or 2.5 Vpp |
