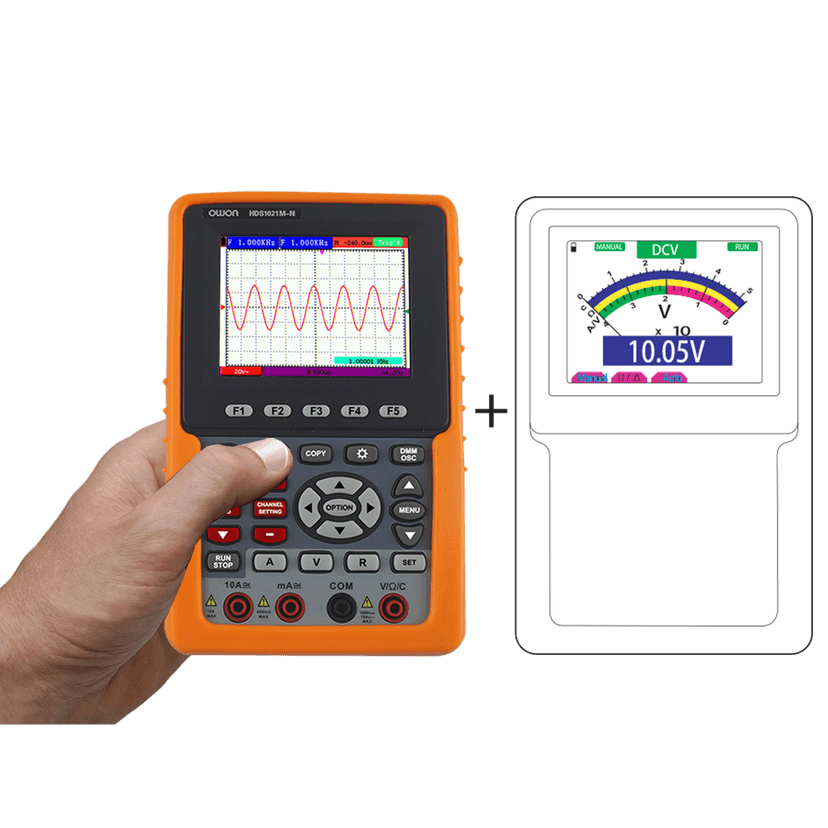

OWON HDS-N Series 1-CH Digital Oscilloscope

  • 2-in-1 digital oscilloscope and multimeter
  • Integrated 3 3/4-digit multimeter
  • Integrated FFT spectrum analyzer
  • 20 MHz, 60 MHz, and 100 MHz bandwidth options
  • Up to 1 GS/s real-time sampling rate
  • Auto-scale function automatically adjusts trigger, vertical scale, and timebase
  • 20 automatic measurement options
  • Adjustable trigger sensitivity for stable triggering under noisy conditions
  • Waveform recording and replay
  • Single-channel oscilloscope
  • 24K-point record length
  • Edge, Video, and Alternate trigger modes depending on model
  • Sample, Peak Detect, and Average acquisition modes
  • USB data transmission supported
  • Multimeter supports SCPI
  • Rechargeable Li-ion battery with up to 6 hours of operation
  • 3.7-inch color TFT display
  • Compact handheld design
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The OWON HDS-N Series combines a single-channel digital oscilloscope with a 3 3/4-digit multimeter and FFT spectrum analyzer in a compact handheld design. The HDS1021M-N provides 20 MHz bandwidth and 500 MS/s real-time sampling, while the HDS2061M-N and HDS3101M-N provide 60 MHz and 100 MHz bandwidth respectively, with up to 1 GS/s real-time sampling. The oscilloscope features a 24K-point record length, 8-bit vertical resolution, automatic measurements, waveform storage, and multiple trigger modes. Its auto-scale function automatically selects suitable trigger, vertical, and timebase settings based on the input signal. Adjustable trigger sensitivity helps improve stability in noisy environments. The integrated multimeter provides up to 4000-count readings and supports voltage, current, resistance, capacitance, diode, and continuity testing. A rechargeable 7.4 V Li-ion battery provides approximately 6 hours of operation, making the HDS-N Series suitable for portable and field applications.

Specifications
ModelsAvailable ModelsHDS1021M-N, HDS2061M-N, HDS3101M-N
PerformanceBandwidth - HDS1021M-N20 MHz
Bandwidth - HDS2061M-N60 MHz
Bandwidth - HDS3101M-N100 MHz
ChannelsChannelsSingle
SamplingReal-Time Sample RateHDS1021M-N: 500 MS/s; HDS2061M-N and HDS3101M-N: 1 GS/s
TimebaseHorizontal Scale - HDS1021M-N5 ns/div to 100 s/div, in 1-2.5-5 steps
Horizontal Scale - HDS2061M-N / HDS3101M-N5 ns/div to 100 s/div, in 1-2-5 steps
DisplayDisplay3.7-inch color TFT, 640 × 480 pixels
MemoryRecord Length24K points
Waveform Storage4 waveforms
VerticalVertical Sensitivity5 mV/div to 5 V/div at input
Vertical Resolution8 bits
TriggerTrigger TypeEdge and Video; Alternate trigger also supported on applicable models
Trigger ModeAuto, Normal, Single
Trigger Level±6 divisions from screen center
Trigger SensitivityAdjustable
AcquisitionAcquisition ModeSample, Peak Detect, Average
AnalysisFFT Spectrum AnalyzerIntegrated
InterfaceCommunication InterfaceMini-USB, Mini-RS232
CommunicationUSB Data TransmissionSupported
Multimeter SCPISupported
PowerPower Supply100 V–240 V AC, 50/60 Hz
Battery7.4 V rechargeable Li-ion battery
Battery OperationApproximately 6 hours
MultimeterFull Scale Reading3 3/4 digits, maximum 4000 counts
Input Impedance10 MΩ
Voltage MeasurementVDC: 400 mV, 4 V, 40 V, 400 V, 1000 V; VAC: 4 V, 40 V, 400 V, 750 V
Maximum Voltage InputDC 1000 V; AC 750 V
Current MeasurementDC: 40 mA, 400 mA, 10 A; AC: 40 mA, 400 mA, 10 A
Resistance Measurement400 Ω, 40 kΩ–4 MΩ, 40 MΩ
Capacitance Measurement51.2 nF to 100 μF
Diode Test0–1 V
Continuity Test<50 Ω ±30 Ω, with beeping
PhysicalDimensions115 mm × 180 mm × 40 mm
WeightApproximately 645 g
