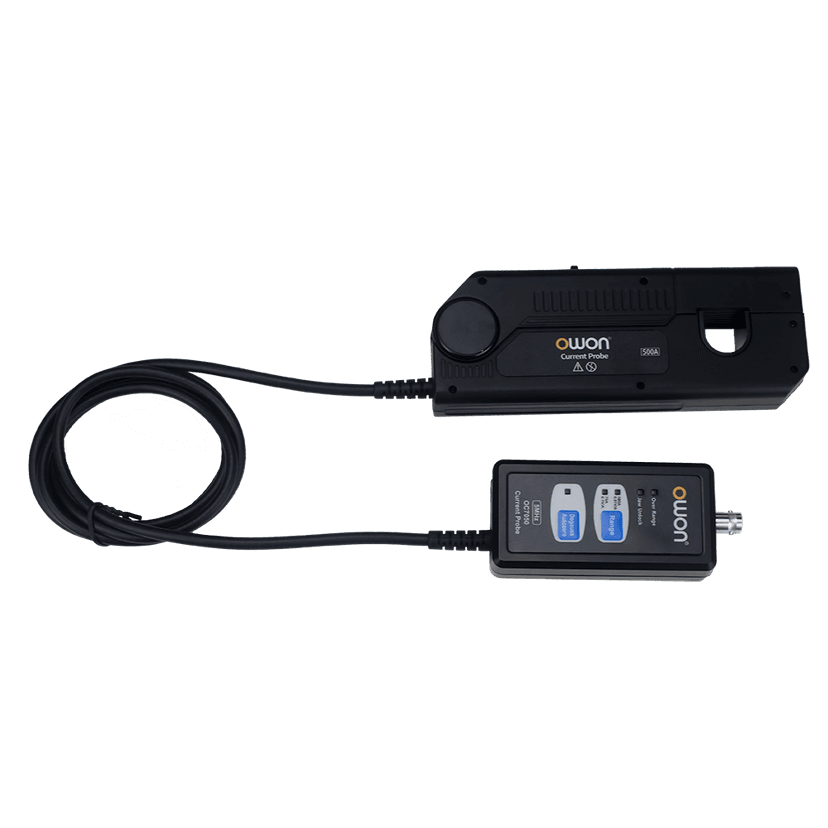

OC7000 Series Current Probe
- Measurement bandwidth from 5 MHz to 12 MHz
- Maximum peak current measurement up to 750 A
- Maximum continuous current measurement up to 500 Arms
- Measurement accuracy up to ±1%
- 20 mm jaw diameter for convenient conductor access
- Dual-range design for measuring different current levels
- Locking mechanism ensures reliable contact between magnetic cores
- Audible and visual overcurrent alarm
- Overcurrent protection helps prevent overheating and probe damage
- Multiple current transfer ratios for different measurement ranges
- High-speed response with rise times as low as 29 ns
- BNC output for oscilloscope connection
- 600 V CAT II / 300 V CAT III maximum voltage to ground for bare conductors
- Dedicated control box for range selection and monitoring
- 1.5 m cable between current clamp and control box
The OC7000 Series combines high-current measurement capability with wide bandwidth and accurate signal transfer for power electronics, electrical testing, maintenance, and troubleshooting applications. Three models are available: OC7015, OC7030, and OC7050, offering bandwidths of 12 MHz, 6 MHz, and 5 MHz respectively. Depending on the model, maximum measured current ranges from 150 Arms to 500 Arms, with peak current capability from 300 Apk to 750 Apk. Each probe provides two selectable measurement ranges and corresponding current transfer ratios, allowing accurate measurement across different current levels. The probe includes overcurrent protection as well as audible and visual alarms to help protect the instrument from excessive current and overheating.
| Models | Available Models | OC7015, OC7030, OC7050 |
| Performance | Bandwidth | 12 MHz, 6 MHz, or 5 MHz depending on model |
| Rise Time | ≤29 ns, ≤58 ns, or ≤70 ns depending on model | |
| Probe Host Delay | 36 ns, 41 ns, or 42 ns depending on model | |
| BNC Cable Delay | 5 ns | |
| Current | Maximum Measured Current | 150 Arms, 300 Arms, or 500 Arms |
| Maximum Peak Current | 300 Apk, 500 Apk, or 750 Apk | |
| Measurement | Measurement Range | 1/10 range: 30 A, 50 A, or 75 A; 1/100 range: 150 A, 300 A, or 500 A |
| Current Transfer Ratio | 0.1 V/A for 30 A, 50 A, or 75 A ranges; 0.01 V/A for 150 A, 300 A, or 500 A ranges | |
| Resolution | 10 mA for 30 A, 50 A, and 75 A ranges; 100 mA for 150 A, 300 A, and 500 A ranges | |
| Accuracy | Accuracy | ±1% ±10 mA for 30 A/50 A/75 A ranges; ±1% ±100 mA for 150 A/300 A/500 A ranges |
| Safety | Maximum Voltage to Ground | 600 V CAT II / 300 V CAT III |
| Protection | Overcurrent Protection | Supported |
| Alarm | Overcurrent Alarm | Audible and visual alarm |
| Mechanical | Jaw Diameter | 20 mm |
| Connection | Output | BNC output with approximately 1 m coaxial cable |
| Terminal Load Requirement | ≥100 kΩ | |
| Power | Power Supply | DC 12 V / 2 A standard adapter |
| Cable | Clamp-to-Control Box Cable | 1.5 m |
| Dimensions | Current Clamp Handle | 172.5 × 65 × 28 mm |
| Control Box | 100 × 50 × 27 mm | |
| Weight | Probe Body Weight | Approximately 500 g |
