Current Probe

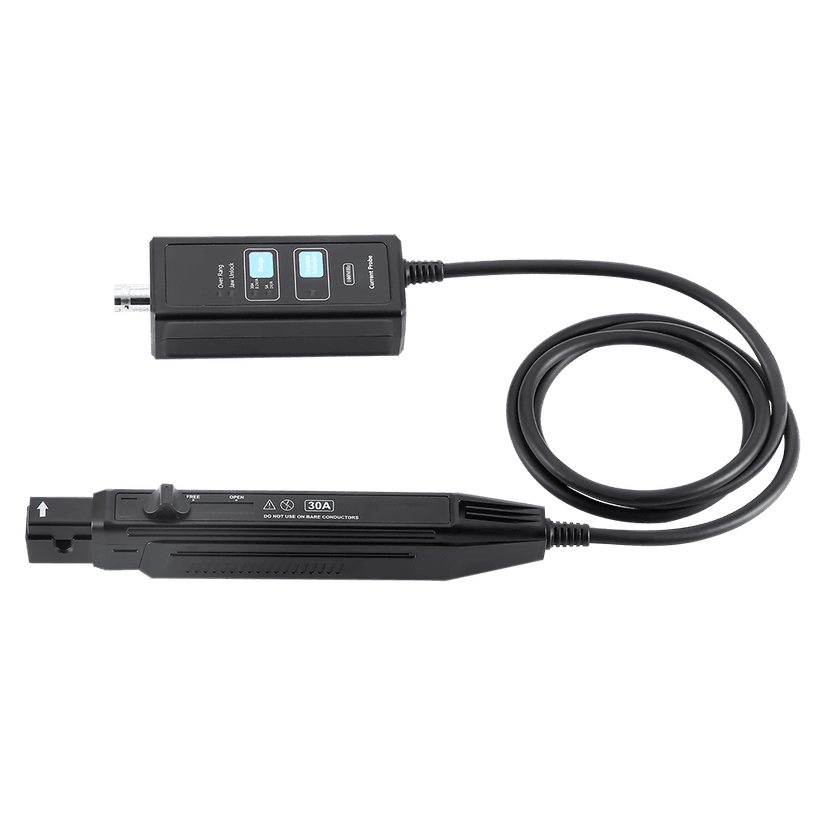

OC6000 Series Current Probe
- Maximum peak current measurement up to 75 A
- Bandwidth up to 120 MHz
- One-click degauss and zeroing for convenient operation
- Measurement accuracy up to ±1%
- Dual-range design for different current levels
- Audible and visual overcurrent alarm
- Locking mechanism ensures reliable magnetic-core contact
- Overcurrent protection helps prevent overheating and probe damage
- 5 mm jaw diameter for measuring small conductors
- High-speed response with rise time as low as 2.92 ns
- BNC output for oscilloscope connection
- 600 V CAT II / 300 V CAT III maximum voltage to ground
- DC 12 V / 2 A standard adapter power supply
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OC6000 Series provides a compact solution for measuring current signals with high accuracy and wide bandwidth. The series includes the OC6053, OC6123, and OC6055 models, with bandwidths of 50 MHz or 120 MHz. Depending on the model and selected range, the probes support maximum measured currents from 30 Arms to 50 Arms and peak currents from 50 Apk to 75 Apk. Multiple transfer ratios and selectable ranges allow the probe to handle different current levels while maintaining measurement accuracy of up to ±1%. The locking magnetic-core mechanism ensures reliable contact, while one-click degaussing and zeroing make the probe easier to prepare for accurate measurements.
Specifications
| Models | Available Models | OC6053, OC6123, OC6055 |
| Performance | Bandwidth | 50 MHz or 120 MHz |
| Rise Time | ≤7 ns or ≤2.92 ns | |
| Current | Maximum Measured Current | 30 Arms or 50 Arms |
| Maximum Peak Current | 50 Apk or 75 Apk | |
| Measurement | Measurement Range | 5 A / 7.5 A at 1X attenuation; 30 A / 50 A at 10X attenuation |
| Current Transfer Ratio | 1 V/A for 5 A and 7.5 A ranges; 0.1 V/A for 30 A and 50 A ranges | |
| Resolution | 1 mA for 5 A and 7.5 A ranges; 10 mA for 30 A and 50 A ranges | |
| Accuracy | Accuracy | ±1% ±10 mA for 5 A and 7.5 A ranges; ±1% ±100 mA for 30 A and 50 A ranges |
| Control | Degauss and Zeroing | One-click operation |
| Protection | Overcurrent Protection | Supported |
| Alarm | Overcurrent Alarm | Audible and visual alarm |
| Safety | Maximum Voltage to Ground | 600 V CAT II / 300 V CAT III |
| Mechanical | Jaw Diameter | 5 mm |
| Connection | Terminal Load Requirement | ≥100 kΩ |
| Output | BNC output with approximately 1 m coaxial cable | |
| Power | Power Supply | DC 12 V / 2 A standard adapter |
| Cable | Clamp-to-Control Box Cable | 1 m |
| Coaxial Output Cable | 1 m | |
| Delay | Probe Host Delay | 14 ns |
| BNC Cable Delay | 5 ns | |
| Dimensions | Current Clamp Handle | 176 × 39.5 × 18 mm |
