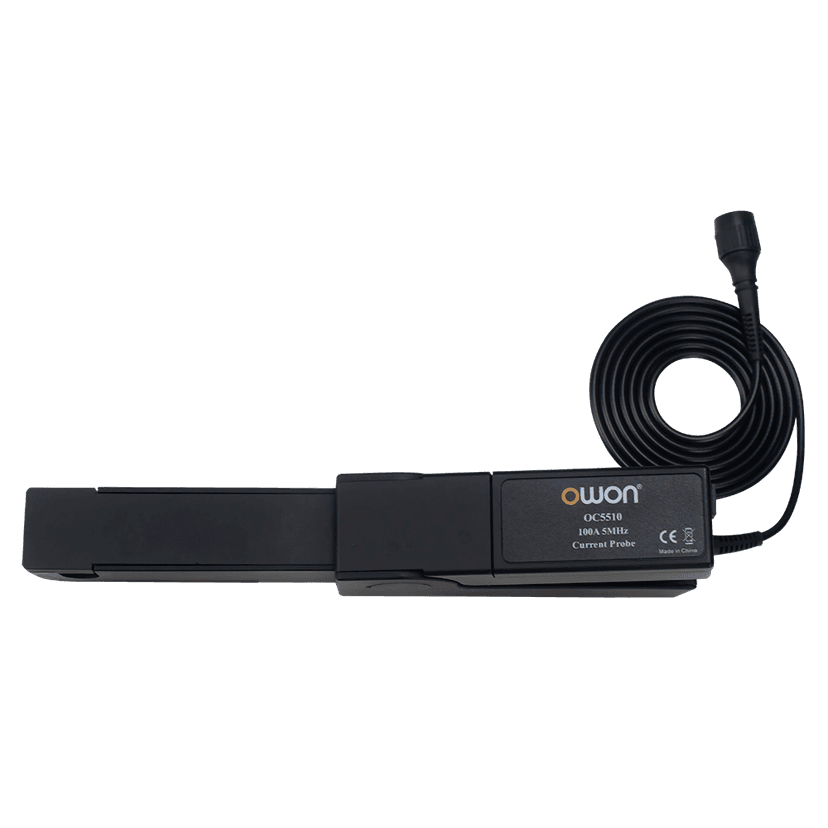

OC5000 Series Current Probe
- Bandwidth options from 500 kHz to 5 MHz
- Maximum measurable peak current up to 100 A
- Measurement accuracy up to ±3% under specified conditions
- Dual-range sensitivity of 0.01 V/A and 0.1 V/A
- One-click zeroing for quick and convenient setup
- Dual power modes using adapter or battery
- Low-battery indicator
- Overload indication with audible alert
- Protective features for safer current measurement
- 12 mm maximum conductor diameter
- Approximately 1.5 m coaxial output cable
- Compact and lightweight design for indoor and outdoor testing
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OC5000 Series combines flexible current measurement, compact construction, and convenient operation for general electrical testing and troubleshooting. The series includes the OC5010A, OC5110, OC5310, and OC5510 models, providing bandwidths of 500 kHz, 1 MHz, 3 MHz, and 5 MHz respectively. The probe supports two measurement sensitivity levels: 0.1 V/A for lower-current measurements and 0.01 V/A for higher-current measurements. Depending on the selected range, current measurement extends from as low as 50 mA peak to as high as 100 A peak. A one-click zeroing function reduces setup time, while the low-battery indicator, overload indication, audible alert, and protective functions help provide reliable operation.
Specifications
| Models | Available Models | OC5010A, OC5110, OC5310, OC5510 |
| Performance | Bandwidth | 500 kHz, 1 MHz, 3 MHz, or 5 MHz depending on model |
| Rise Time | ≤700 ns, ≤350 ns, ≤116 ns, or ≤70 ns depending on model | |
| Phase Shift | DC–65 Hz: <1.5° or <1° depending on model | |
| Current | Current Range | 50 mA to 10 A peak at L range; 1 A to 100 A peak at H range |
| Measurement | Range Sensitivity | 0.1 V/A (L range) and 0.01 V/A (H range) |
| Accuracy | DC Accuracy | Typically 3% ±50 mA for the low-current range; 4% ±50 mA from 500 mA to 40 A peak and ±15% maximum from 40 A to 100 A peak |
| Control | Zeroing | One-click zeroing |
| Protection | Overload Indication | Buzzer sounds when measured current exceeds selected range |
| Low Battery Indicator | Red indicator when battery voltage is below 6.5 V | |
| Safety | Working Voltage | 600 V CAT I / 600 V CAT II / 300 V CAT III RMS |
| Common-Mode Voltage | 600 V CAT I / 600 V CAT II / 300 V CAT III RMS | |
| Power | Power Supply | DC 12 V / 1 A adapter or 9 V alkaline battery |
| Mechanical | Current Clamp Dimensions | Approximately 230 × 33 × 70 mm |
| Maximum Conductor Diameter | Approximately 12 mm | |
| Connection | Output Cable | Approximately 1.5 m coaxial cable |
| Weight | Weight | Approximately 300 g, battery not included |
| Rating | Maximum Working Current | 100 A at H range; 10 A at L range |
| AC Peak-to-Peak | 200 A at H range; 20 A at L range | |
| Maximum Floating Voltage | Up to 1200 V for AC peak-to-peak conditions |
