Current Probe

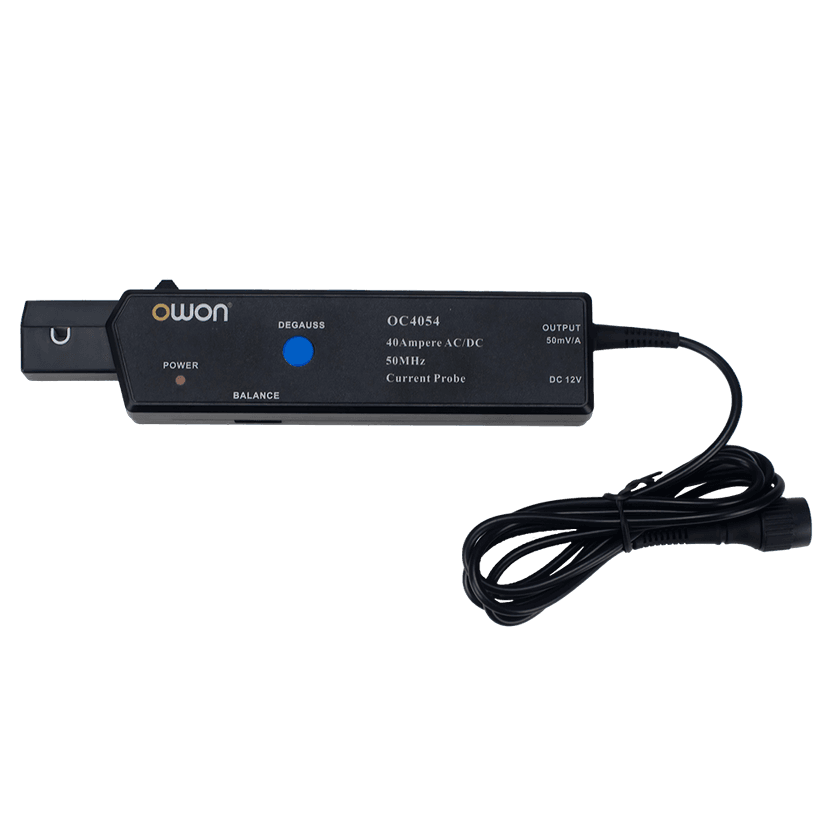

OC4000 Series Current Probe

Maximum peak test current up to 40 A
Bandwidth up to 50 MHz
Measurement accuracy up to ±3%
Maximum voltage to ground of 400 V (DC + peak AC)
Low noise of ≤1 mVrms
Maximum measured pulse current up to 60 A for pulses ≤10 μs
Current conversion ratios of 100 mV/A and 50 mV/A
Linearity of ±1%
Fast response with rise time as low as 7 ns
Compact current-probe design for electrical testing and troubleshooting
DC 12 V / 1 A power adapter

Need a custom configuration?Our engineers are ready to help spec the right solution.

Overview

The OC4000 Series includes the OC4022, OC4052, OC4024, and OC4054 models, offering 25 MHz and 50 MHz bandwidth configurations. Depending on the model, the probes support maximum measured current levels of 20 A or 40 A and maximum pulse currents of 30 A or 60 A for pulses up to 10 μs. Current conversion ratios of 100 mV/A and 50 mV/A provide convenient signal scaling for oscilloscope measurements. The series combines ±3% measurement accuracy, ±1% linearity, and noise of ≤1 mVrms, while a maximum 400 V DC + peak AC voltage-to-ground rating supports a variety of electrical testing applications.

Specifications

Models	Available Models	OC4022, OC4052, OC4024, OC4054
Performance	Bandwidth	25 MHz or 50 MHz depending on model
	Rise Time	14 ns or 7 ns depending on model
	Linearity	±1%
	Noise	≤1 mVrms
	Delay Time	20 ns ±1 ns
Current	Maximum Measured Current	20 A or 40 A (DC + peak AC)
Current	Maximum Pulse Current	30 A or 60 A for Tp ≤10 μs
Measurement	Current Conversion Ratio	100 mV/A or 50 mV/A
Accuracy	Measurement Accuracy	±3%
Safety	Maximum Voltage to Ground	400 V (DC + peak AC)
Power	Power Adapter Output	DC 12 V / 1 A
Power	Power Adapter Input	AC 100–240 V, 50–60 Hz
