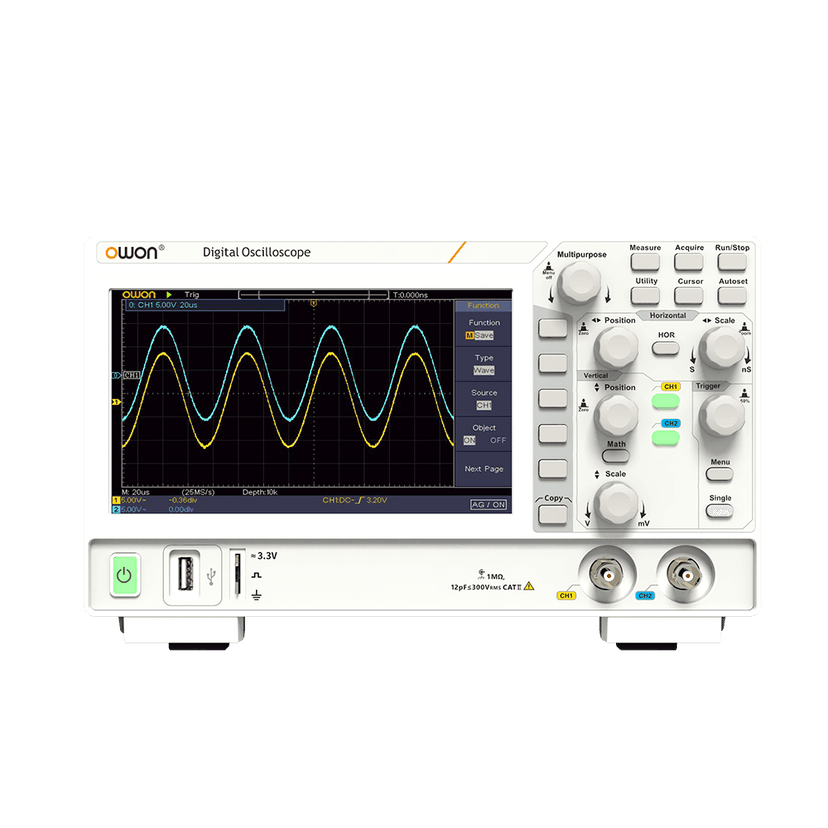

SDS3000 Series Digital Oscilloscope
Benchtop Oscilloscopes

SDS3000 Series Digital Oscilloscope

  • Dual-channel digital oscilloscope
  • 100 MHz, 150 MHz, and 200 MHz bandwidth options
  • 1 GSa/s real-time sampling rate
  • 20M maximum record length
  • Supports Sample, Peak, and Average acquisition modes
  • Multiple trigger modes including Edge, Video, Pulse Width, and Slope
  • 30 types of automatic measurements with customizable display
  • FFT spectrum analysis
  • 16 waveform storage locations
  • Cursor measurements including ΔV, ΔT, and ΔT&ΔV
  • Automatic cursor function
  • Lissajous display with full bandwidth support
  • Supports PC connectivity through USB
  • Supports standard SCPI remote control commands
  • USB Host and Device connectivity
  • Ultra-thin body design for convenient field use
  • USB Type-C power supply
  • 7-inch high-resolution TFT LCD display
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The Owon SDS3000 Series offers 100 MHz, 150 MHz, and 200 MHz bandwidth options with a 1 GSa/s real-time sampling rate and 20M maximum record length. The dual-channel oscilloscope supports Sample, Peak, and Average acquisition modes, along with Edge, Video, Pulse, and Slope triggering. Up to 30 automatic waveform measurements are available, including period, frequency, RMS, peak-to-peak, rise time, fall time, duty cycle, phase, pulse count, and area measurements. FFT waveform mathematics enables frequency-domain analysis, while cursor measurements and Lissajous display provide additional signal analysis capabilities. USB Host and Device connectivity enables PC communication and SCPI remote control. With USB Type-C power, a compact ultra-thin body, and a 7-inch TFT LCD display, the SDS3000 Series is suitable for both bench and portable measurement applications.

Specifications
ModelsAvailable ModelsSDS3102, SDS3152, SDS3202
PerformanceBandwidthSDS3102: 100 MHz; SDS3152: 150 MHz; SDS3202: 200 MHz
ChannelsChannels2
SamplingSample Rate1 GSa/s
AcquisitionAcquisition ModeSample, Peak, Average
InputInput CouplingDC, AC, Ground
Input Impedance1 MΩ ±2%, parallel with 12 pF ±5 pF
Maximum Input Voltage400 V (DC + AC, peak-to-peak)
ProbeProbe Attenuation Factor1X, 10X, 100X, 1000X
MemoryMaximum Record Length20M
Waveform Storage16 waveforms
TimebaseHorizontal Scale2 ns/div to 1000 s/div, in 1-2-5 steps
VerticalSensitivity2 mV/div to 10 V/div
Displacement±2 V (2 mV/div–200 mV/div); ±100 V (500 mV/div–10 V/div)
BandwidthBandwidth Limit20 MHz, full bandwidth
AccuracySampling Rate / Time Accuracy±100 ppm
WaveformWaveform InversionSupported
MeasurementAutomatic MeasurementsPeriod, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area
MathWaveform Math+, -, ×, ÷, FFT
TriggerTrigger TypeEdge, Video, Pulse, Slope
InterfaceCommunication PortUSB 2.0, USB Host and Device
CommunicationRemote ControlSupports standard SCPI remote control commands
CounterFrequency CounterSupported
CursorCursor MeasurementΔV, ΔT, ΔT & ΔV between cursors, and automatic cursor
DisplayLissajous FigureFull bandwidth; phase difference accuracy ±3 degrees
Display7-inch TFT LCD, 800 × 480 resolution
PowerPower SupplyUSB Type-C, DC 5 V / 3 A
PhysicalDimensions260 mm × 160 mm × 78 mm (W × D × H)
WeightApproximately 1.1 kg
