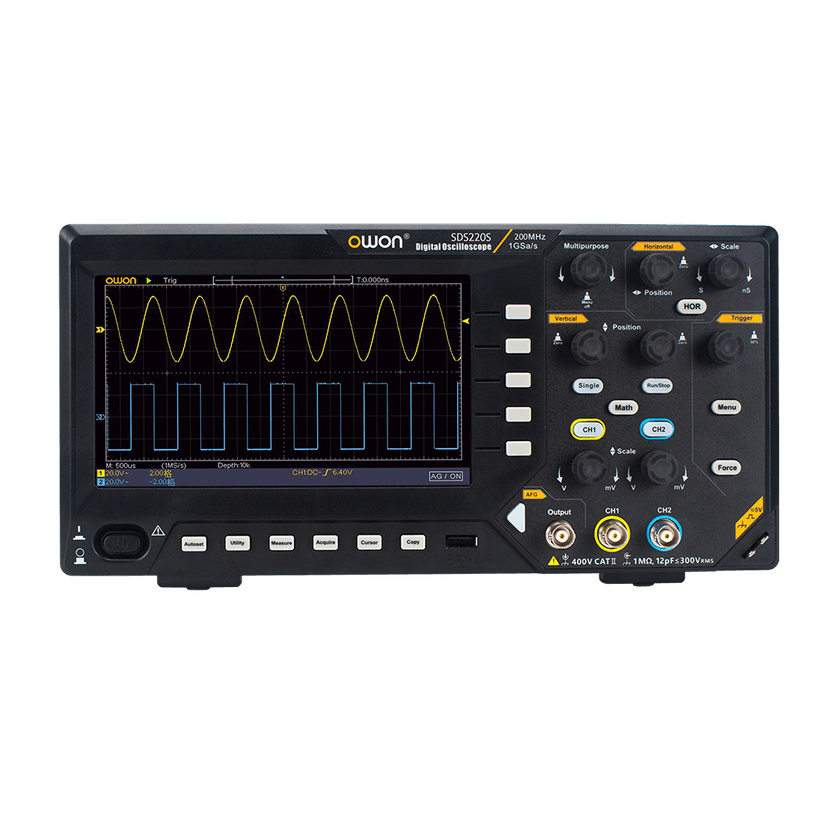

SDS200 Series Digital Oscilloscope
- Dual-channel digital oscilloscope
- Optional 25 MHz signal generator on SDS210S, SDS215S, and SDS220S models
- 100 MHz, 150 MHz, and 200 MHz bandwidth options
- Dual-channel independent 1 GS/s real-time sampling rate
- 20M memory depth for extended waveform recording
- Supports up to 30 automatic waveform measurements
- 6-digit high-precision frequency counter
- FFT spectrum analysis
- Supports Normal, Peak Detect, and Averaging acquisition modes
- Supports Edge and Video triggering
- USB Host and Device interfaces for PC communication
- Supports SCPI and LabVIEW functions
- Supports remote instrument control and secondary development
- Free PC software and programming development examples
- Stores up to 16 waveforms
- 7-inch TFT LCD display
- Compact and lightweight design
The Owon SDS200 Series provides 100 MHz, 150 MHz, and 200 MHz bandwidth options with a maximum 1 GS/s real-time sampling rate on both channels and 20M record length. The oscilloscope supports Normal, Peak Detect, and Averaging acquisition modes, along with Edge and Video triggering. Up to 30 automatic waveform measurements are available, including period, frequency, RMS, peak-to-peak, rise time, fall time, duty cycle, phase, pulse count, and area measurements. FFT spectrum analysis and waveform mathematics provide additional signal analysis capabilities. SDS210S, SDS215S, and SDS220S models include an integrated 25 MHz signal generator with standard and arbitrary waveform generation. USB Host and Device interfaces enable PC communication, SCPI and LabVIEW support, remote instrument control, and secondary development.
| Models | Available Models | SDS210, SDS215, SDS220, SDS210S, SDS215S, SDS220S |
| Performance | Bandwidth | SDS210/SDS210S: 100 MHz; SDS215/SDS215S: 150 MHz; SDS220/SDS220S: 200 MHz |
| Channels | Channels | Dual |
| Sampling | Maximum Sample Rate | 1 GS/s |
| Acquisition | Acquisition Mode | Normal, Peak Detect, Averaging |
| Input | Input Coupling | DC, AC, Ground |
| Input Impedance | 1 MΩ ±2%, parallel with 20 pF ±5 pF | |
| Probe | Probe Attenuation Factor | 1X, 10X, 100X, 1000X |
| Memory | Record Length | 20M |
| Waveform Storage | 16 waveforms | |
| Timebase | Horizontal Scale | 2 ns/div to 1000 s/div, in 1-2-5 steps |
| Vertical | Vertical Sensitivity | 2 mV/div to 10 V/div |
| Measurement | Automatic Measurements | Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area |
| Math | Waveform Math | +, -, ×, ÷, FFT |
| Trigger | Trigger Type | Edge, Video |
| Interface | Communication Interface | USB Host and USB Device |
| Communication | PC Communication | Supports SCPI and LabVIEW functions, remote instrument control, and secondary development |
| Frequency | Frequency Counter | Available; 6-digit high-precision frequency counter |
| Signal Generator | Signal Generator | Optional; available on SDS210S, SDS215S, and SDS220S models |
| Maximum Frequency Output | 25 MHz | |
| Standard Waveforms | Sine wave, square wave, ramp wave, pulse wave, arbitrary wave | |
| Arbitrary Waveforms | More than 160 built-in arbitrary waveforms including Sinc, exponential rise, and exponential decline | |
| Arbitrary Waveform Frequency | 0.1 Hz to 5 MHz | |
| Sample Rate | 125 MSa/s | |
| Amplitude | 0.005 Vpp to 3 Vpp at 50 Ω | |
| DC Offset Range | ±3 V at high resistance | |
| Channels | 1 | |
| Waveform Length | 8K points | |
| Vertical Resolution | 14 bits | |
| Load Impedance | 50 Ω | |
| Display | Display | 7-inch TFT LCD, 800 × 480 resolution |
| Physical | Dimensions | 301 mm × 152 mm × 70 mm |
| Weight | Approximately 1.1 kg |
