Benchtop Oscilloscopes

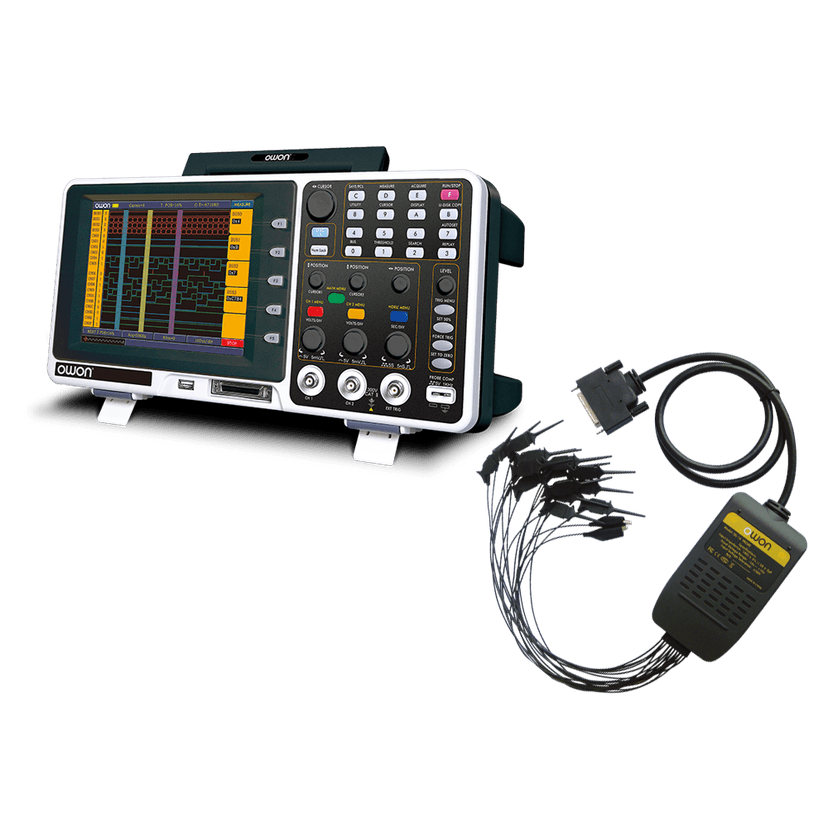

MSO Series LA with Digital Oscilloscope
- 2-in-1 digital storage oscilloscope and logic analyzer
- 16-channel logic analyzer for digital signal analysis
- 100 MHz and 200 MHz bandwidth options
- Up to 2 GS/s real-time sampling rate
- 20 S/s to 2 GS/s logic analyzer sample rate
- 8-inch color LCD display
- USB data transmission and PC connectivity
- 20 groups of automatic measurement options
- Auto-scale function for convenient waveform setup
- FFT spectrum analysis
- Multiple oscilloscope trigger modes including Edge, Video, Alternate, Pulse, and Slope
- Supports multiple logic analyzer trigger modes including bus, status, data alignment, data width, and distributed queue
- Normal, Peak Detect, and Average acquisition modes
- Up to 2M-point oscilloscope record length
- Up to 4M-point logic analyzer record length
- Waveform storage for up to 4 waveforms
- Waveform mathematics including addition, subtraction, multiplication, division, and FFT
- Dual oscilloscope channels with external trigger
- Compact bench-top design
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The Owon MSO Series provides an integrated digital storage oscilloscope and logic analyzer for analyzing both analog and digital signals. The oscilloscope section offers 100 MHz to 200 MHz bandwidth, up to 2 GS/s real-time sampling, auto-scale, FFT analysis, automatic measurements, and multiple trigger modes. The integrated logic analyzer provides 16 digital channels with sample rates from 20 S/s to 2 GS/s and up to 4M points of record length. Logic analyzer triggering supports bus, status, data alignment, data width, distributed queue, and other digital analysis functions. USB connectivity enables data transmission and PC-based operation, while the 8-inch color LCD provides a clear interface for waveform and measurement analysis.
Specifications
| Models | Oscilloscope Models | MSO7102T, MSO8102T, MSO8202T |
| Logic Analyzer Models | MSO7102TD, MSO8102T, MSO8202T | |
| Performance | Oscilloscope Bandwidth | 100 MHz and 200 MHz, depending on model |
| Logic Analyzer Bandwidth | 100 MHz and 200 MHz, depending on model | |
| Channels | Oscilloscope Channels | Dual + external trigger |
| Logic Analyzer Channels | 16 digital channels | |
| Sampling | Oscilloscope Sample Rate | Up to 2 GS/s real-time |
| Logic Analyzer Sample Rate | 20 S/s to 2 GS/s real-time | |
| Display | Display | 8-inch color LCD, 640 × 480 pixels |
| Timebase | Horizontal Scale | 2 ns/div to 100 s/div or 1 ns/div to 100 s/div, depending on model, in 1-2-5 steps |
| Vertical | Vertical Sensitivity | 2 mV/div to 10 V/div |
| Vertical Resolution | 8 bits, 2 channels simultaneously | |
| Trigger | Oscilloscope Trigger Mode | Edge, Video, Alternate, Pulse, and Slope |
| Logic Analyzer Trigger Mode | Bus, Status, Data Alignment, Data Width, Distributed Queue, and other digital trigger modes | |
| Acquisition | Acquisition Mode | Normal, Peak Detect, Average |
| Memory | Oscilloscope Record Length | 2M points |
| Logic Analyzer Record Length | 4M points | |
| Waveform Storage | 4 waveforms | |
| Measurement | Automatic Measurements | 20 groups of automatic measurement options |
| Math | Waveform Math | +, -, ×, ÷, FFT |
| Analysis | FFT | FFT spectrum analysis |
| Oscilloscope | Auto-Scale | Supported |
| Interface | Communication Interface | USB data transmission and PC connectivity |
| Logic Analyzer | Digital Channels | 16 channels |
| Physical | Dimensions | 370 mm × 180 mm × 120 mm |
| Weight | Approximately 2.20 kg, without packaging |
