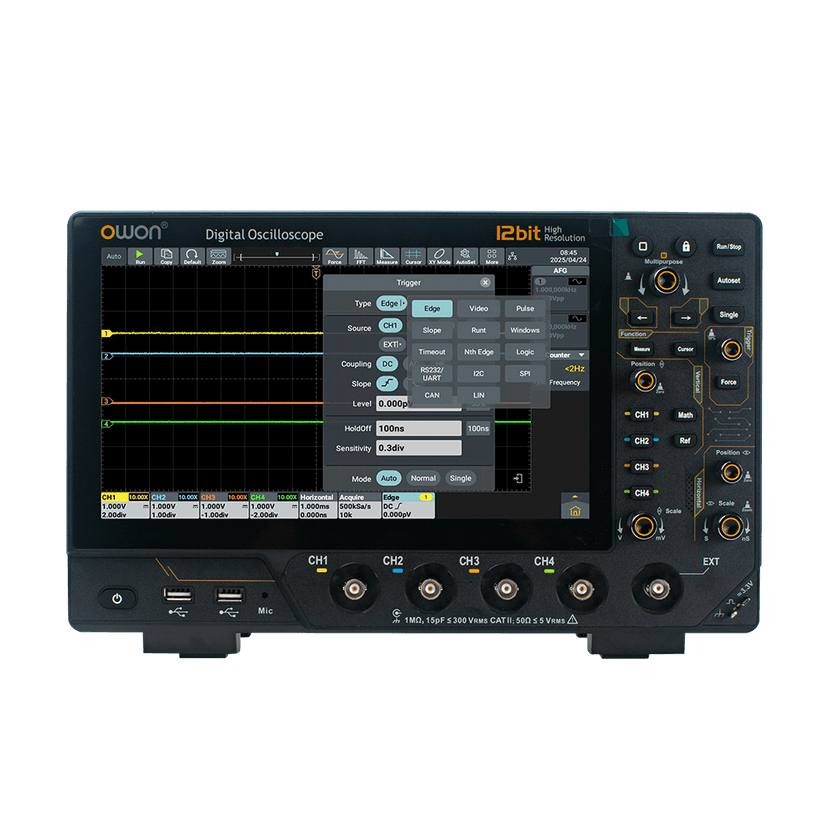

ADS4000A Series Multifunction Digital Oscilloscope
Benchtop Oscilloscopes

ADS4000A Series Multifunction Digital Oscilloscope

  • Integrates oscilloscope, optional dual-channel 50 MHz arbitrary waveform generator, frequency counter, voltmeter, FFT spectrum analyzer, and protocol analyzer
  • 125 MHz and 250 MHz bandwidth options
  • Up to 2.5 GSa/s real-time sampling rate
  • 100M record length for deep waveform storage
  • Waveform refresh rate up to 500,000 wfms/s
  • 12-bit hardware vertical resolution for high-precision measurements
  • Vertical sensitivity from 500 μV/div to 10 V/div
  • Time base range from 500 ps/div to 1000 s/div
  • Rich triggering including Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth, Logic, RS232/UART, I2C, SPI, CAN, and LIN
  • Two-channel hardware protocol decoding for RS232/UART, I2C, SPI, CAN, and LIN
  • Waveform cloning and Bode plot functions available on AFG models
  • Measurement parameter statistics with measurement indication, cursor gating, and measurement prompts
  • Supports automatic measurements, waveform mathematics, FFT analysis, and advanced signal analysis
  • Built-in microphone and speaker
  • Supports external mouse and keyboard
  • Enhanced file management for easier viewing, editing, and exporting
  • HDMI, USB Device x1, USB Host x3, Trig Out (P/F), Type-C, and LAN interfaces
  • Supports Web Control and SCPI command communication
  • Optional Wi-Fi/Bluetooth wireless module
  • Supports FTP, network printers, mobile hotspots, and other wireless functions
  • Supports Type-C power supply and floating ground measurement
  • 10.1-inch multi-touch display with customizable shortcut operations
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The Owon ADS4000A Series provides 125 MHz and 250 MHz bandwidth options with a maximum real-time sampling rate of 2.5 GSa/s and 100M record length. Its 12-bit hardware vertical resolution provides detailed waveform measurement, while a refresh rate of up to 500,000 wfms/s enables clear capture of rapidly changing signals. The oscilloscope supports comprehensive triggering and optional protocol decoding for RS232/UART, I2C, SPI, CAN, and LIN. Advanced analysis functions include automatic measurements, waveform mathematics, FFT, measurement statistics, waveform cloning, and Bode plots on models equipped with the optional dual-channel 50 MHz AFG. The instrument also features Web Control, SCPI communication, LAN, USB, HDMI, optional Wi-Fi/Bluetooth connectivity, Type-C power support, floating ground measurement, and a 10.1-inch multi-touch display for flexible laboratory, engineering, and field applications.

Specifications
Models2-Channel ModelsADS4122A, ADS4252A
4-Channel ModelsADS4124A, ADS4254A
PerformanceBandwidth125 MHz and 250 MHz (-3 dB), depending on model
Waveform Refresh RateMaximum 500,000 wfms/s
ChannelsChannels2 + EXT or 4 + EXT, depending on model
SamplingSample Rate - 2 Channel Models2.5 GSa/s single-channel; 1.25 GSa/s dual-channel
Sample Rate - 4 Channel Models2.5 GSa/s single-channel; 2.5 GSa/s dual-channel; 1.25 GSa/s full-channel
AcquisitionAcquisition ModeSample, Peak Detect, High Resolution, Average, Segmentation
VerticalVertical Resolution12 bits
Vertical Sensitivity500 μV/div to 10 V/div
AccuracyDC Gain Accuracy3% (≤1 mV); 2% (2 mV); 1.5% (≥5 mV)
MemoryRecord Length100M
TimebaseTime Base Range500 ps/div to 1000 s/div, in 1-2-5 steps
Time Accuracy±1 ppm typical
InputInput Impedance1 MΩ ±2%, parallel with 15 pF ±5 pF; 50 Ω ±2%
ProbeProbe Attenuation Coefficient1X to 1MX, in 1-2-5 steps, with custom values supported
TriggerTrigger TypeEdge, Video, Pulse, Slope, Runt, Window, Timeout, Nth, Logic, RS232/UART, I2C, SPI, CAN, LIN
DecodingBus DecodingOptional; RS232/UART, I2C, SPI, CAN, LIN
MeasurementAutomatic MeasurementsPeriod, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty, -Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Count, -Pulse Count, Rise Count, Fall Count, Area, Cycle Area, Delay, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Floating Ground MeasurementSupported
MathWaveform Math+, -, *, /, &&, ||, ^, !, Integrate, Differentiate, Square Root, Log, Ln, Exp, Abs, Sine, Cosine, Tangent, FFT, FFT RMS, User Defined, Low Pass, High Pass, Band Pass, Band Reject
AnalysisFFT AnalysisEnhanced FFT, FFT RMS, peak search, and waveform analysis functions
FrequencyFrequency Counter6-digit frequency counter; maximum frequency up to the oscilloscope's maximum analog bandwidth
VoltageVoltmeterSupports DC, AC+DC RMS, and AC RMS; 4-digit resolution for ACV/DCV
AFGArbitrary Waveform GeneratorOptional dual-channel 50 MHz output; 160 MSa/s sample rate
AFG Vertical Resolution14 bits
Standard WaveformsSine, Square, Ramp, Pulse, Noise
Arbitrary Waveform Frequency1 μHz to 10 MHz
Arbitrary Waveform Length2–16K points
Built-in Arbitrary Waveforms28 built-in waveforms including Exponential Rise/Fall, Sin(x)/x, Step Wave, and others
Amplitude2 mVpp to 10 Vpp at high impedance; 1 mVpp to 5 Vpp at 50 Ω
ModulationAM, FM, PM, FSK, Sweep, and Burst
Waveform CloningSupported on models equipped with AFG function
Bode PlotBode Plot FunctionAvailable on models equipped with AFG function
Start / End Frequency10 Hz to 25 MHz
Amplitude2 mV to 6 V
InterfaceCommunication InterfaceHDMI, USB Device x1, USB Host x3, Trig Out (P/F), Type-C power supply, LAN
CommunicationRemote ControlWeb Control and SCPI command sending/receiving
WirelessWireless ModuleOptional Wi-Fi/Bluetooth module supporting FTP, network printers, mobile hotspots, and more
DisplayDisplay10.1-inch LCD, 1024 × 600 resolution, multi-touch support
AudioAudioBuilt-in microphone and speaker
PowerPower Supply100 V–240 V AC RMS, 50/60 Hz, CAT II; supports Type-C power supply
PhysicalDimensions325 mm × 209 mm × 111.5 mm
Device WeightApproximately 3.2 kg
