Benchtop Oscilloscopes

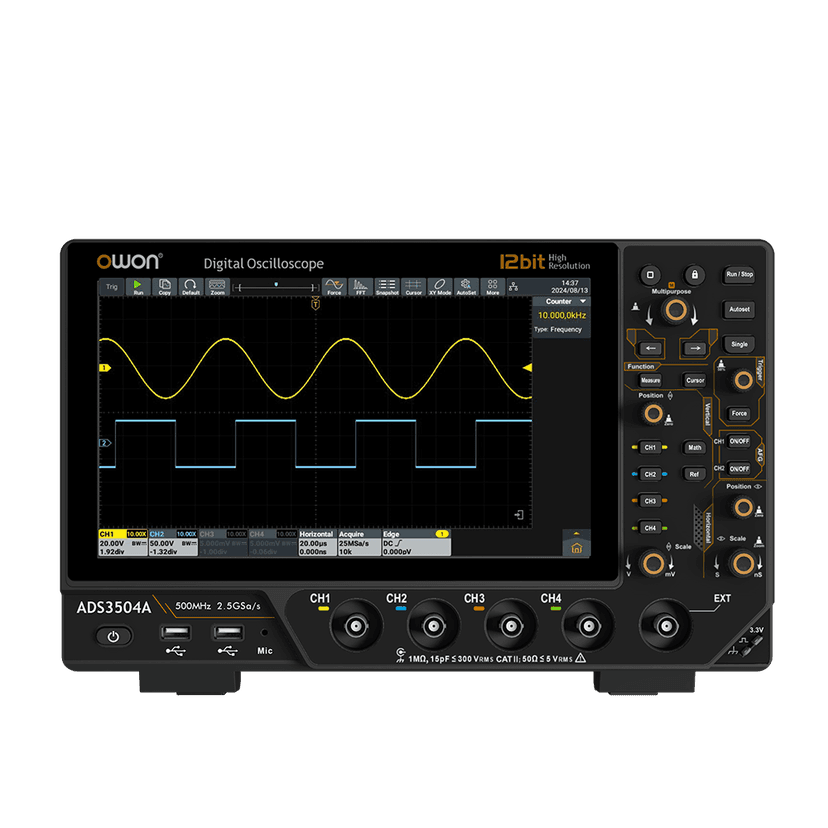

ADS3000A Series 12-Bit Multifunction Digital Oscilloscope
- Integrates oscilloscope, optional dual-channel 50 MHz AFG, frequency counter, voltmeter, FFT spectrum analyzer, and protocol analyzer
- 100 MHz to 500 MHz bandwidth options
- Up to 2.5 GSa/s real-time sampling rate
- 100M record length for extended waveform storage
- Waveform refresh rate up to 500,000 wfms/s
- 12-bit vertical resolution for high-precision signal measurement
- Time base range from 500 ps/div to 1000 s/div
- Advanced triggering including Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth, Logic, RS232/UART, I2C, SPI, CAN, and LIN
- Supports two-channel hardware decoding for RS232/UART, I2C, SPI, CAN, and LIN
- Up to 43 automatic measurements
- Enhanced FFT and ZOOM functions for clearer waveform and cursor information
- Supports waveform cloning and Bode plot functions on AFG models
- Built-in microphone and speaker
- Supports external mouse and keyboard
- Enhanced file management for easier viewing, editing, and exporting
- USB Device x1 and USB Host x3 interfaces
- Supports Trig Out (P/F), LAN, Web Control, and SCPI
- Optional Wi-Fi/Bluetooth wireless module
- Supports FTP, network printers, and mobile hotspots through optional wireless connectivity
- 10.1-inch touchscreen with multi-touch support
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The Owon ADS3000A Series combines a high-performance digital oscilloscope with frequency counter, voltmeter, FFT spectrum analyzer, and protocol analyzer functions. Available models provide 100 MHz, 200 MHz, 350 MHz, and 500 MHz bandwidth options with up to 2.5 GSa/s real-time sampling and 100M record length. Its 12-bit vertical resolution, waveform refresh rate of up to 500,000 wfms/s, enhanced FFT, peak search, ZOOM functions, and up to 43 automatic measurements enable detailed signal analysis. Advanced triggering and hardware decoding support RS232/UART, I2C, SPI, CAN, and LIN protocols. Models equipped with the optional dual-channel 50 MHz arbitrary waveform generator provide waveform generation, modulation, waveform cloning, and Bode plot capabilities. The 10.1-inch touchscreen, enhanced file management, external device support, LAN connectivity, Web Control, SCPI, and optional wireless module provide a flexible platform for professional measurement and system integration.
Specifications
| Models | 2-Channel Models | ADS3102A, ADS3202A, ADS3352A, ADS3502A |
| 4-Channel Models | ADS3104A, ADS3204A, ADS3354A, ADS3504A | |
| Performance | Bandwidth | 100 MHz, 200 MHz, 350 MHz, and 500 MHz (-3 dB), depending on model |
| Waveform Refresh Rate | Maximum 500,000 wfms/s | |
| Channels | Channels | 2 + EXT or 4 + EXT, depending on model |
| Sampling | Sample Rate - 2 Channel Models | 2.5 GSa/s single-channel; 1.25 GSa/s dual-channel |
| Sample Rate - 4 Channel Models | 2.5 GSa/s single-channel; 2.5 GSa/s dual-channel; 1.25 GSa/s full-channel | |
| Acquisition | Acquisition Mode | Sample, Peak Detect, High Resolution, Average, Segmented Memory |
| Memory | Record Length | 100M |
| Vertical | Vertical Resolution | 12 bits |
| Vertical Sensitivity | 500 μV/div to 10 V/div | |
| Timebase | Time Base Range | 500 ps/div to 1000 s/div |
| Time Accuracy | ±1 ppm typical | |
| Accuracy | DC Gain Accuracy | 3% (≤1 mV); 2% (2 mV); 1.5% (≥5 mV) |
| Input | Input Impedance | 1 MΩ ±2%, parallel with 15 pF ±5 pF; 50 Ω ±2% |
| Probe | Probe Attenuation | 1X to 1MX, in 1-2-5 steps, with custom values supported |
| Trigger | Trigger Type | Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth, Logic, RS232/UART, I2C, SPI, CAN, LIN |
| Decoding | Bus Decoding | RS232/UART, I2C, SPI, CAN, LIN |
| Measurement | Automatic Measurements | Up to 43 measurements including Period, Frequency, +Width, -Width, Rise Time, Fall Time, Duty Cycle, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, Pulse Count, Rise Count, Fall Count, Area, Cycle Area, Delay, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
| Math | Waveform Math | +, -, *, /, &&, ||, ^, !, Integrate, Differentiate, Square Root, Log, Ln, Exp, Abs, Sine, Cosine, Tangent, FFT, FFT RMS, User Defined, Low Pass, High Pass, Band Pass, Band Reject |
| Analysis | FFT Analysis | Enhanced FFT, FFT RMS, peak search, and ZOOM functions |
| Frequency | Frequency Counter | 6-digit frequency counter; maximum frequency up to the oscilloscope's maximum analog bandwidth |
| Voltage | Voltmeter | Supports DC, AC+DC RMS, and AC RMS; 4-digit resolution for ACV/DCV |
| AFG | Arbitrary Waveform Generator | Optional dual-channel 50 MHz output; 160 MSa/s sample rate |
| AFG Vertical Resolution | 14 bits | |
| Standard Waveforms | Sine, Square, Ramp, Pulse, Noise | |
| Arbitrary Waveform Frequency | 1 μHz to 10 MHz | |
| Arbitrary Waveform Length | 2–16K points | |
| Built-in Arbitrary Waveforms | 28 built-in waveforms including Exponential Rise/Fall, Sin(x)/x, Step Wave, and others | |
| Amplitude | 2 mVpp to 10 Vpp at high impedance; 1 mVpp to 5 Vpp at 50 Ω | |
| Modulation | AM, FM, PM, FSK, Sweep, and Burst | |
| Waveform Cloning | Supported on models equipped with AFG function | |
| Bode Plot | Bode Plot Function | Available on models equipped with AFG function |
| Start / End Frequency | 10 Hz to 25 MHz | |
| Amplitude | 2 mV to 6 V | |
| Interface | Communication Interface | HDMI, USB Device x1, USB Host x3, Trig Out (P/F), Type-C power supply, LAN |
| Communication | Remote Control | Web Control and SCPI support |
| Wireless | Wireless Module | Optional Wi-Fi/Bluetooth module supporting FTP, network printers, mobile hotspots, and more |
| Display | Display | 10.1-inch LCD, 1024 × 600 resolution, multi-touch touchscreen |
| Audio | Audio | Built-in microphone and speaker |
| Power | Power Supply | 100 V–240 V AC RMS, 50/60 Hz, CAT II |
| Physical | Dimensions | 325 mm × 209 mm × 111.5 mm |
| Weight | Approximately 3.2 kg, without packaging |
