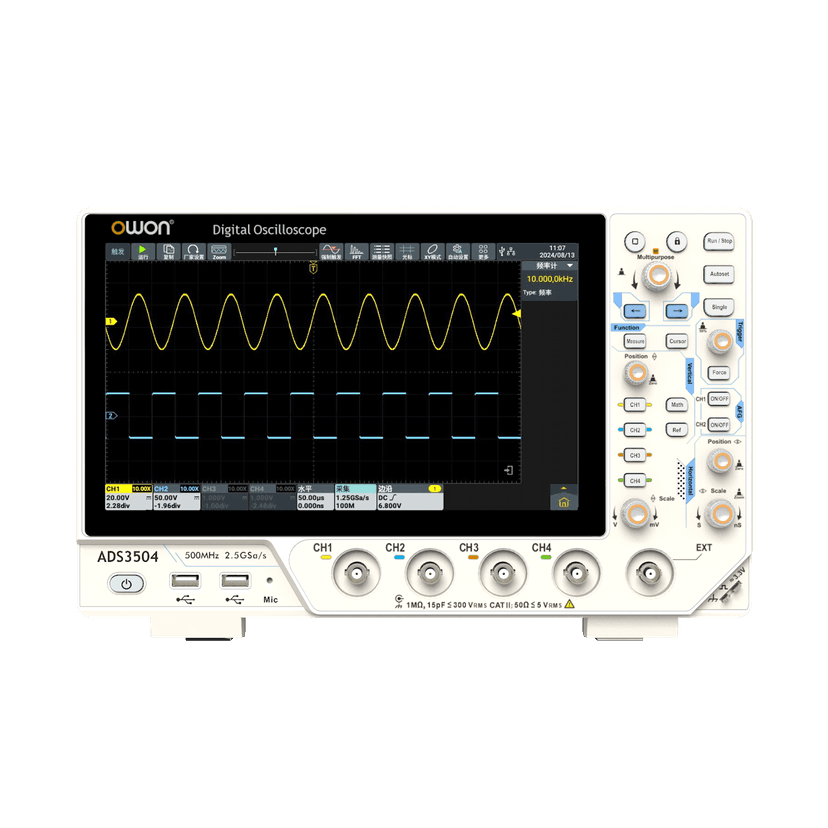

ADS3000 Series Fourth-Generation Multifunction Digital Oscilloscope
- Based on OWON X-Vision II advanced architecture for lower noise, higher storage capacity, and faster waveform refresh
- Integrates oscilloscope, optional dual-channel 50 MHz AFG, frequency counter, voltmeter, FFT spectrum analyzer, and protocol analyzer
- 100M storage depth for extended waveform recording
- Waveform refresh rate up to 500,000 wfms/s
- Up to 500 MHz bandwidth, depending on model
- Up to 2.5 GSa/s real-time sampling rate
- Vertical sensitivity from 500 μV/div to 10 V/div
- Time base range from 500 ps/div to 1000 s/div
- 1M-point FFT analysis for accurate frequency component display
- Enhanced FFT and ZOOM functions for clearer waveform and cursor information
- Rich triggering including Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth, Logic, RS232/UART, I2C, SPI, CAN, and LIN
- Optional protocol decoding for UART, I2C, SPI, CAN, and LIN
- Waveform cloning and Bode plot functions available on AFG models
- Convenient measurement statistics with measurement indicators and cursor gating
- Built-in microphone and speaker
- Supports external mouse and keyboard
- Enhanced file management for easier viewing, editing, and exporting
- Optional Wi-Fi/Bluetooth wireless module
- Supports FTP, network printers, mobile hotspots, and more
- Ultra-thin design at approximately 10 cm
- 10.1-inch multi-touch touchscreen
- Supports multi-touch gestures and customizable shortcuts
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The Owon ADS3000 Series Fourth-Generation Multifunction Digital Oscilloscope delivers advanced waveform capture and analysis with bandwidth options from 100 MHz to 500 MHz and a maximum real-time sampling rate of 2.5 GSa/s. With 100M storage depth and waveform refresh rates up to 500,000 wfms/s, it provides detailed capture of rapidly changing signals. The instrument features 8-bit vertical resolution, vertical sensitivity from 500 μV/div to 10 V/div, a time base range from 500 ps/div to 1000 s/div, and 1M-point FFT analysis with enhanced FFT and ZOOM functions. Advanced triggering supports Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth, Logic, RS232/UART, I2C, SPI, CAN, and LIN. Optional dual-channel 50 MHz AFG models add waveform generation, modulation, waveform cloning, and Bode plot functions. The Android-based platform also provides enhanced file management, external mouse and keyboard support, optional wireless connectivity, multi-touch gestures, and customizable shortcuts for efficient laboratory and engineering workflows.
Specifications
| Models | 2-Channel Models | ADS3102, ADS3202, ADS3352, ADS3502 |
| 4-Channel Models | ADS3104, ADS3204, ADS3354, ADS3504 | |
| Performance | Bandwidth | 100 MHz, 200 MHz, 350 MHz, and 500 MHz (-3 dB), depending on model |
| Waveform Refresh Rate | Maximum 500,000 wfms/s | |
| Channels | Channels | 2 + EXT or 4 + EXT, depending on model |
| Sampling | Sample Rate - 2 Channel Models | 2.5 GSa/s single-channel; 1.25 GSa/s dual-channel |
| Sample Rate - 4 Channel Models | 2.5 GSa/s single-channel; 1.25 GSa/s dual-channel; 1.25 GSa/s full-channel | |
| Sampling Rate Range | 0.05 S/s to 2.5 GS/s | |
| Acquisition | Acquisition Mode | Sample, Peak, High Resolution, Average |
| Memory | Record Length | 100M |
| Vertical | Vertical Resolution | 8 bits |
| Vertical Sensitivity | 500 μV/div to 10 V/div | |
| Accuracy | DC Gain Accuracy | 4% (≤1 mV); 3% (≥2 mV) |
| Timebase | Time Accuracy | ±1 ppm typical |
| Input | Input Impedance | 1 MΩ ±2%, parallel with 15 pF ±5 pF; 50 Ω ±2% |
| Probe | Probe Attenuation Coefficient | 1X to 1MX, in 1-2-5 steps, with custom values supported |
| Trigger | Trigger Type | Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth, Logic, RS232/UART, I2C, SPI, CAN, LIN |
| Decoding | Bus Decoding | Optional; UART, I2C, SPI, CAN, LIN |
| Measurement | Automatic Measurements | Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty, -Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Count, -Pulse Count, Rise Count, Fall Count, Area, Cycle Area, Delay, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
| Math | Waveform Math | +, -, *, /, Integrate, Differentiate, Square Root, Log, Ln, Exp, Abs, Sine, Cosine, Tangent, FFT, FFT RMS, User Defined, Low Pass, High Pass, Band Pass, Band Reject |
| Analysis | FFT Analysis | 1M-point FFT, enhanced FFT, FFT RMS, peak search, and ZOOM functions |
| Frequency | Frequency Counter | 6-digit frequency counter; maximum frequency up to the oscilloscope's maximum analog bandwidth |
| Voltage | Voltmeter | Supports DC, AC+DC RMS, and AC RMS; 4-digit resolution for ACV/DCV |
| AFG | Arbitrary Waveform Generator | Optional dual-channel 50 MHz output; 160 MSa/s sample rate |
| Vertical Resolution | 14 bits | |
| Standard Waveforms | Sine, Square, Ramp, Pulse, Noise | |
| Arbitrary Waveforms | 28 built-in waveforms including Exponential Rise/Fall, Sin(x)/x, Step Wave, and others | |
| Arbitrary Waveform Frequency | 1 μHz to 10 MHz | |
| Arbitrary Waveform Length | 2–16K points | |
| Amplitude | 2 mVpp to 10 Vpp at high impedance; 1 mVpp to 5 Vpp at 50 Ω | |
| Modulation | AM, FM, PM, FSK, Sweep, and Burst | |
| Bode Plot | Bode Plot | Available on models equipped with AFG function |
| Start / End Frequency | 10 Hz to 25 MHz | |
| Amplitude | 2 mV to 6 V | |
| Interface | Communication Interface | HDMI, USB Device x1, USB Host x3, Trig Out (P/F), Type-C power supply, LAN |
| Wireless | Wireless Module | Optional Wi-Fi/Bluetooth module supporting FTP, network printers, mobile hotspots, and more |
| Display | Display | 10.1-inch LCD, 1024 × 600 resolution, multi-touch touchscreen |
| Audio | Audio | Built-in microphone and speaker |
| Power | Power | 100 V–240 V AC RMS, 50/60 Hz, CAT II |
| Physical | Dimensions | 325 mm × 209 mm × 111.5 mm |
| Weight | Approximately 3.2 kg, without packaging |
