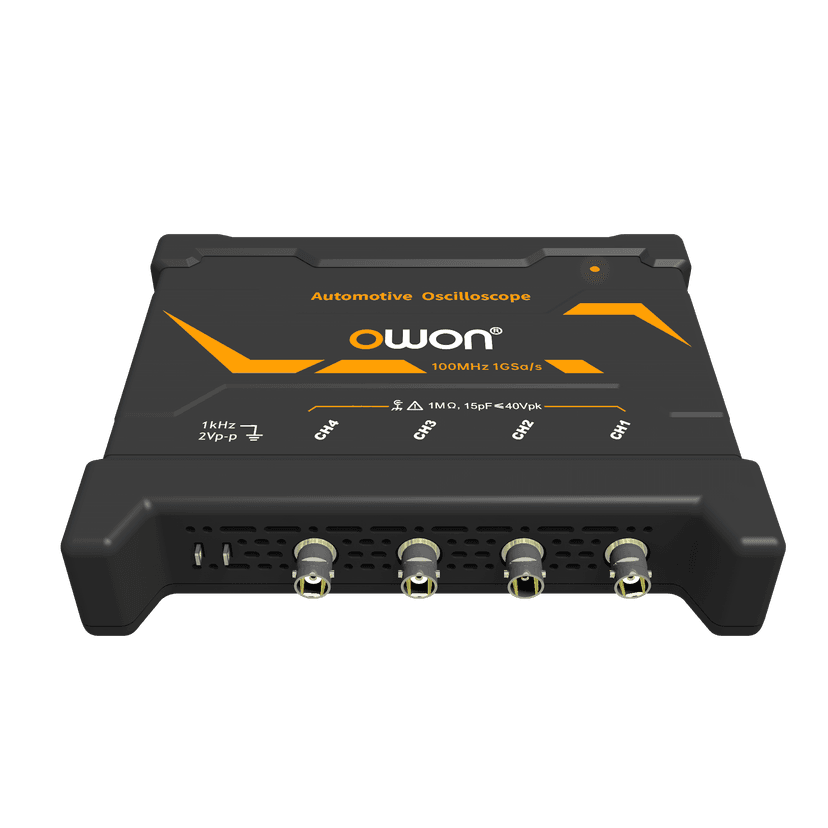

VDS8000 Series PC Automotive Oscilloscope
- 4-channel automotive digital oscilloscope
- 100 MHz bandwidth
- Up to 1 GSa/s real-time sampling rate
- Supports Android and Windows dual-platform operation
- Built-in 78 standard automotive reference waveforms
- Reference waveforms for speed, position, temperature, pressure, and other sensors
- CAN and LIN hardware decoding for automotive communication diagnostics
- Automotive-specific interface with direct waveform value readings
- One-click oscilloscope setup based on selected sensor type
- Waveform recording and playback for intermittent fault diagnosis
- Supports up to 1000-frame waveform loop recording
- 23 types of automatic measurements
- Supports Edge, Pulse, CAN, and LIN trigger modes
- Auto, Normal, and Single trigger modes
- Supports waveform and configuration storage and recall
- YT, Zoom, and Roll display modes
- Dual waveform display and FFT analysis
- USB Type-C power supply
- USB data transfer and programming support for secondary development
- Compact PC-based solution for professional automotive repair and diagnostics
The VDS8000 Series provides a dedicated oscilloscope platform for diagnosing automotive electrical and electronic systems. The VDS8104 features four channels, 100 MHz bandwidth, and up to 1 GSa/s sampling on a single channel. Its built-in library contains 78 standard automotive waveforms covering sensors such as speed, position, temperature, and pressure sensors. The automotive-specific interface allows technicians to select a sensor type and automatically configure the oscilloscope for rapid waveform acquisition without requiring manual calculations or zero-point calibration. CAN and LIN hardware decoding enables analysis of automotive communication systems, while Edge, Pulse, CAN, and LIN trigger modes provide flexible signal capture. For intermittent faults, the instrument supports waveform recording and playback with up to 1000-frame loop recording. The system supports both Windows and Android through dedicated software and provides USB data transfer, standard commands, and programming examples for secondary development and system integration.
| Model | Model | VDS8104 |
| Oscilloscope | Bandwidth | 100 MHz, 4 channels |
| Channels | 4 | |
| Sampling | Maximum Sample Rate | 1 GSa/s (single channel); 500 MSa/s (dual channel); 250 MSa/s (full channel) |
| Timebase | Scanning Speed | 1 ns/div to 1 ks/div, in 1-2-5 steps |
| Acquisition | Acquisition Mode | Sample |
| Accuracy | Time Base Accuracy | ±20 ppm typical |
| Memory | Record Length | Auto, 10K, 100K, 1M, or 10M points |
| Input | Input Coupling | DC, AC |
| Input Impedance | 1 MΩ ±1.5%, parallel with 15 pF ±5 pF | |
| Vertical | Vertical Resolution | 8 bits |
| DC Gain Accuracy | ±3% | |
| Sensitivity | 5 mV/div to 10 V/div, in 1-2-5 steps | |
| Bandwidth | Bandwidth Limit | 20 MHz or Full Bandwidth |
| Probe | Probe Attenuation | 1X, 10X, 20X, 50X, 100X, 200X, 500X, 1kX, 2kX, 5kX, 10kX |
| Isolation | Channel-to-Channel Isolation | 100:1 @ 50 Hz; 40:1 @ 10 MHz |
| Waveform | Interpolation | Sin(x)/x |
| Trigger | Trigger Type | Edge, Pulse, CAN, LIN |
| Trigger Mode | Auto, Normal, Single | |
| Measurement | Automatic Measurements | 23 types of measurements |
| Decode | Protocol Decoding | CAN, LIN |
| Automotive | Standard Waveform Library | 78 standard automotive reference waveforms |
| Waveform Categories | Speed sensors, position sensors, temperature sensors, pressure sensors, and other automotive signals | |
| One-Click Auto Setup | Automatically configures oscilloscope settings based on selected automotive sensor type | |
| Car Configuration | Start, Ignition, Sensors, Actuators, Comprehensive, and other automotive test categories | |
| Recording | Waveform Recording | Supports waveform recording and playback with up to 1000-frame loop recording |
| Storage | Storage | Waveform and configuration storage |
| Display | Display Modes | YT, Zoom, Roll |
| Analysis | Math | Dual waveform display and FFT |
| Cursor | Cursor Measurement | Horizontal cursor, vertical cursor, phase scale |
| Software | Platform Support | Windows and Android |
| Interface | Data Interface | USB Device |
| Power | Power Supply | USB Type-C, DC 5 V/2 A; USB Type-B ≥4.8 V/2 A |
| Power Consumption | ≤10 W | |
| Environment | Working Temperature | 0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
