HDS2102A Automotive Diagnostic Oscilloscope
Automotive Oscilloscope

HDS2102A Automotive Diagnostic Oscilloscope

  • 3-in-1 solution combining oscilloscope, multimeter, and automotive diagnostics
  • 100 MHz oscilloscope bandwidth
  • 2-channel oscilloscope with 500 MSa/s real-time sampling
  • 8k memory depth and up to 10,000 wfms/s waveform refresh rate
  • Built-in automotive waveform library for real-time waveform comparison
  • Comprehensive ignition system diagnostics
  • Accelerator pedal, crankshaft, camshaft, ABS, lambda, MAP, throttle position, knock, coolant temperature, and road speed sensor testing
  • Automotive bus diagnosis for FlexRay, K-Line, LIN, and CAN
  • Injector, glow plug, fuel pump, EGR, purge solenoid, cooling fan, and pressure control valve testing
  • Charging and starting system diagnostics
  • Alternator AC ripple and voltage/current testing
  • Parasitic drain current testing
  • Relative cylinder compression testing
  • 4½-digit multimeter with 20,000-count resolution
  • Supports voltage, current, resistance, capacitance, diode, and continuity testing
  • Rechargeable 18650 Li-ion battery with approximately 3–6 hours of continuous operation
  • USB Type-C interface supports charging and power bank operation
  • SCPI and PC software support
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

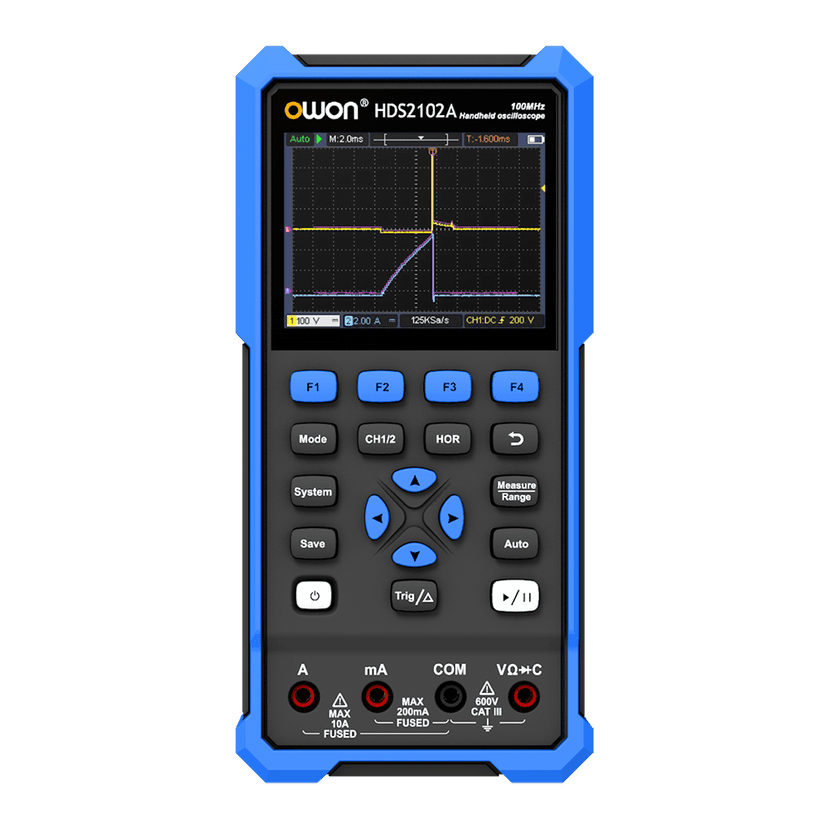

The HDS2102A provides comprehensive waveform-based automotive diagnostics in a portable handheld format. Its 2-channel oscilloscope offers 100 MHz bandwidth, 500 MSa/s sampling, 8k record length, and 8-bit vertical resolution for capturing automotive electrical signals. The integrated 20,000-count multimeter supports voltage, current, resistance, capacitance, diode, and continuity measurements. A built-in automotive waveform library enables technicians to compare measured signals with reference waveforms during troubleshooting. Vehicle diagnostic functions cover independent and distributorless ignition systems, accelerator pedal and engine sensors, ABS, crankshaft and camshaft sensors, lambda and MAP sensors, throttle position, knock and coolant temperature sensors, as well as FlexRay, K-Line, LIN, and CAN physical-layer testing. Additional functions support injector diagnosis, glow plug testing, fuel pump current, alternator ripple, charging circuits, parasitic drain current, and relative cylinder compression testing.

Specifications
OscilloscopeBandwidth100 MHz
Channels2 channels
Sample Rate500 MSa/s
Acquisition ModeNormal, Peak Detect
Record Length8k
Waveform Refresh Rate10,000 wfms/s
Vertical Resolution8 bits
Vertical Sensitivity10 mV/div to 10 V/div
Horizontal Scale5 ns/div to 1000 s/div, in 1-2-5 steps
Input CouplingDC, AC, Ground
Input Impedance1 MΩ ±2%, parallel with 16 pF ±10 pF
Maximum Input Voltage400 V (DC + AC, peak-to-peak) with 1 MΩ input impedance and 10:1 probe attenuation
Bandwidth Limit20 MHz typical
Probe Attenuation1X, 10X, 100X, 1000X, 10000X
TriggerTrigger TypeEdge
Trigger ModesAuto, Normal, Single
MeasurementAutomatic MeasurementsFrequency, Period, Amplitude, Max, Min, Mean, PK-PK
Cursor MeasurementΔV, ΔT, ΔT&ΔV between cursors
MultimeterResolution20,000 counts
Testing ModesVoltage, Current, Resistance, Capacitance, Diode, Continuity
Input Impedance10 MΩ
Maximum Input VoltageAC 750 V, DC 1000 V
Maximum Input CurrentAC 10 A, DC 10 A
Diode Test0–2 V
Automotive DiagnosticsIgnition SystemsIndependent ignition and distributorless ignition systems; primary/secondary voltage, current, trigger, and feedback testing
SensorsAccelerator pedal, crankshaft, camshaft, ABS, lambda, MAP, throttle position, knock, coolant temperature, and road speed sensors
Crankshaft SensorsInductive and Hall-effect types; floating and non-floating measurements during cranking and operation
ABS SensorsInductive, reluctance, and Hall-effect types
Lambda SensorsTitania and Zirconia sensor testing
MAP SensorsDigital fuel, simulated turbocharging, analog fuel, and pressure/temperature testing
Bus DiagnosisSupported Physical LayersFlexRay-P, FlexRay-N, K-Line, LIN, CAN
EngineInjector DiagnosisBosch Common Rail Piezo and solenoid injector current; petrol multi-point injection and gasoline direct injection
Glow PlugsIndividual voltage, voltage and current, and current testing
Fuel SystemFuel pump current, pressure control valve, and quantity control valve testing
Other ComponentsPurge solenoid, variable-speed cooling fan, and EGR solenoid testing
Charging & StartingCharging CircuitsAlternator AC ripple and alternator voltage/current testing for 12 V and 24 V systems
Parasitic DrainParasitic drain current testing
Starting CircuitsRelative cylinder compression pressure testing for diesel and gasoline engines
DisplayDisplay3.5-inch LCD
InterfaceCommunication InterfaceUSB Type-C
PowerBatteryRechargeable 18650 Li-ion battery, approximately 3–6 hours continuous operation
ChargingUSB Type-C; supports power bank charging
