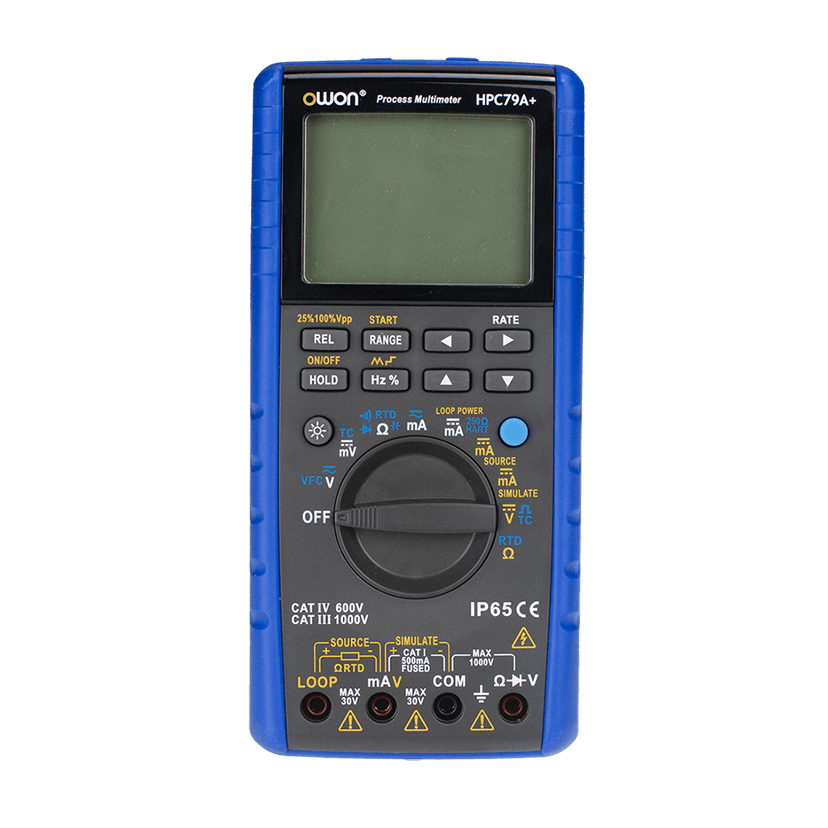

OWON HPC79A Process Signal Generator
- Multifunction process signal generator and measurement instrument
- 5-digit output display
- 55,000-count measurement display
- 0.05% basic output accuracy
- 0.05% basic measurement accuracy
- DC voltage output
- DC current output
- Resistance output
- Frequency output
- Thermocouple output
- RTD output
- SIMULATE function for transmitter simulation
- Dual display for DC current output with mA and percentage values
- Manual stepping at 25% and 100%
- Automatic stepping function
- Automatic ramp current output
- Built-in 24V loop power supply
- Simultaneously powers 24V loops and measures loop current
- Optional built-in 250Ω HART loop resistor
- AC and DC voltage measurement
- AC and DC current measurement
- Resistance and capacitance measurement
- Frequency measurement
- Thermocouple and RTD measurement
- Diode and continuity testing
- True RMS measurement
- Manual and automatic ranging
- Data hold function
- Relative measurement (REL%)
- VFC low-pass filtering for noisy environments
- Automatic cold-junction compensation
- Manual cold-junction compensation
- Temperature display in °C or °F
- IP65-rated dust and water resistance
- CAT IV 600V and CAT III 1000V safety rating
The HPC79A combines process signal generation and precision measurement in a single instrument. Its output functions include DC voltage, DC current, resistance, frequency, thermocouple, and RTD signals, with a SIMULATE function for emulating transmitters. The DC current output provides simultaneous mA and percentage readings and supports manual stepping, automatic stepping, and automatic ramp output. A built-in 24V loop power supply allows the instrument to power a loop while measuring its current, while an optional 250Ω HART loop resistor simplifies connection to HART communication devices. As a measurement instrument, the HPC79A supports AC/DC voltage and current, resistance, capacitance, frequency, thermocouple, RTD, diode, and continuity testing. It also provides True RMS measurement, VFC filtering, relative measurement, automatic cold-junction compensation, and fast or slow measurement modes. With IP65 protection and CAT IV 600V/CAT III 1000V safety ratings, it is suitable for industrial process calibration, field instrumentation, maintenance, and troubleshooting applications.
| Model | Available Model | HPC79A+ |
| Display | Measurement Display | 55,000 counts |
| Backlight | Supported | |
| DC Voltage Measurement | Range | 50.000 mV to 1000.0 V |
| Accuracy | ±(0.05% + 5) | |
| AC Voltage Measurement | Range | 5 V to 1000 V |
| Accuracy | ±(0.5% + 4) | |
| DC Current Measurement | Range | 50.000 mA / 500.00 mA |
| Accuracy | ±(0.1% + 5) | |
| AC Current Measurement | Range | 50.000 mA / 500.00 mA |
| Accuracy | ±(0.15% + 10) | |
| Resistance Measurement | Range | 500 Ω to 50 MΩ |
| Accuracy | ±(0.05% + 10) | |
| Capacitance Measurement | Range | 10 nF to 1000 μF |
| Accuracy | ±(0.5% + 5) | |
| Frequency Measurement | Range | 10.0000 Hz to 10.0000 kHz |
| Accuracy | ±(0.02% + 4) | |
| Thermocouple Measurement | Types | K, E, J, T, N, R, S, B |
| Accuracy | ±(0.1% + 1°C) | |
| RTD Measurement | Types | Cu50, Pt100, Pt1000 |
| Accuracy | ±(0.1% + 1°C) | |
| DC Voltage Output | Range | 100.00 mV / 1000.0 mV / 10.000 V |
| Accuracy | ±(0.05% + 3) | |
| DC Current Output | Range | 30.000 mA |
| Accuracy | ±(0.05% + 4) | |
| Resistance Output | Range | 400.0 Ω / 4.000 kΩ |
| Accuracy | ±(0.05% + 2) | |
| Frequency Output | Range | 100.0 Hz / 1.000 kHz / 5.00 kHz / 10.0 kHz |
| Accuracy | ±(0.05% + 2) | |
| Thermocouple Output | Types | R, S, K, E, J, T, B, N |
| Resolution | 0.1°C / 1°C | |
| Accuracy | ±(0.05% + 1°C) | |
| RTD Output | Types | Cu50, Pt100, Pt1000 |
| Resolution | 0.1°C | |
| Accuracy | ±(0.05% + 0.6°C) | |
| Measurement Speed | Refresh Rate | Slow: 5 readings/s; Fast: 20 readings/s |
| Measurement | True RMS | Supported |
| Bandwidth | 20 Hz to 1 kHz | |
| Duty Cycle | 10% to 90% | |
| Loop Power | 24V Loop Supply | Supported |
| HART | Loop Resistor | Optional built-in 250 Ω HART resistor |
| Temperature | Cold-Junction Compensation | Automatic and manual compensation supported |
| Temperature Display | °C / °F | |
| Filtering | VFC | Supported |
| Protection | Ingress Protection | IP65 |
| Safety | Safety Rating | CAT III 1000V; CAT IV 600V |
| Power | Power Supply | 4 × 1.5V AA batteries or optional AC adapter |
| Mechanical | Dimensions | 97 × 206 × 60 mm |
| Weight | Approximately 1.7 kg |
