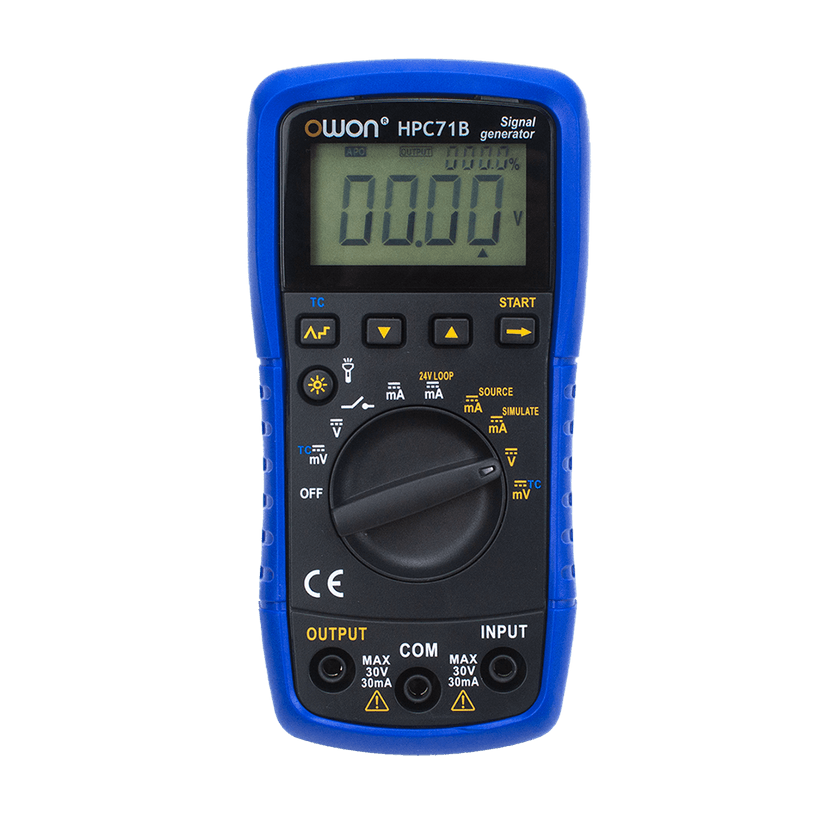

OWON HPC71 Series Process Signal Generator

  • Compact process signal generator for field testing and calibration
  • Available in HPC71A and HPC71B models
  • 0.2% basic accuracy for measurement and output functions
  • DC millivolt source and measurement
  • DC voltage source and measurement
  • DC current source and measurement
  • Sink current function
  • Thermocouple source and measurement supported on HPC71B
  • Supports 8 thermocouple types: R, S, K, E, J, T, B, N
  • 24V loop power supply for field transmitter debugging
  • Manual step output for voltage and current values
  • Automatic waveform output
  • Manual thermocouple cold-junction compensation
  • Automatic thermocouple cold-junction compensation
  • External power supply support from 5V to 28V
  • Compact design for one-handed operation
  • Built-in flashlight for low-light environments
  • LCD display
  • Powered by 3 AAA batteries
  • More than 4 hours of continuous operation
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The HPC71 Series includes the HPC71A and HPC71B process signal generator models. Both models provide 0.2% basic accuracy and support DC millivolt, DC voltage, DC current, and sink current sourcing and measurement. The HPC71B additionally supports eight thermocouple types including R, S, K, E, J, T, B, and N, with both sourcing and measurement capabilities. The instruments provide a 24V loop power supply for field transmitter debugging and support manual step output as well as automatic waveform output. Thermocouple applications can use either manual or automatic cold-junction compensation. With a compact one-handed design, LCD display, built-in flashlight, and more than four hours of operation from three AAA batteries, the HPC71 Series is suitable for process instrumentation maintenance, field service, transmitter testing, and industrial calibration applications.

Specifications
ModelsAvailable ModelsHPC71A, HPC71B
DC Millivolt SourceRange110 mV
Accuracy0.2% + 4
Resolution100 μV
DC Voltage SourceRange10 V
Accuracy0.2% + 4
Resolution10 mV
DC Current SourceRange0 to 22 mA
Accuracy0.2% + 4
Resolution0.01 mA
Sink CurrentRange0 to 22 mA
Accuracy0.2% + 4
Resolution0.01 mA
External Power SupplyInput Range5 to 28 V
Thermocouple SourceSupported ModelHPC71B
Thermocouple TypesR, S, K, E, J, T, B, N
Accuracy0.2% + 4
Resolution1°C
DC Millivolt MeasurementRange-10 to 110 mV
Accuracy0.2% + 4
Resolution100 μV
DC Voltage MeasurementRange-5 to 30 V
Accuracy0.2% + 4
Resolution10 mV
DC Current MeasurementRange0 to 22 mA
Accuracy0.2% + 4
Resolution0.01 mA
Loop PowerOutput24 V, 10% accuracy, 25 mA
Thermocouple MeasurementSupported ModelHPC71B
Thermocouple TypesR, S, K, E, J, T, B, N
Accuracy0.2% + 4
Resolution1°C
Output FunctionsManual Step OutputSupported
Automatic Waveform OutputSupported
CompensationCold-Junction CompensationManual and automatic compensation supported
PowerBattery3 × AAA batteries
Operating TimeMore than 4 hours of continuous operation
DisplayDisplayLCD
Additional FunctionsFlashlightBuilt-in
