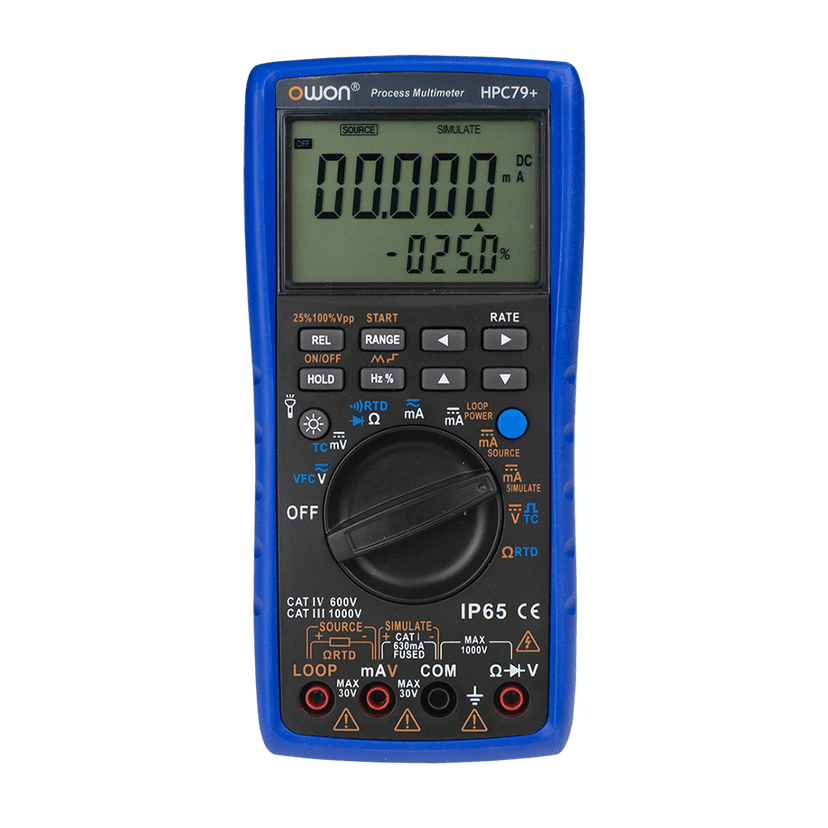

OWON HPC Series Process Multimeter
- Professional process multimeter with signal sourcing capabilities
- Available in HPC77+, HPC78+, and HPC79+ models
- DC voltage measurement
- AC voltage measurement on supported models
- DC current measurement
- AC current measurement on supported models
- Resistance measurement
- Frequency measurement on supported models
- Capacitance measurement on supported models
- Thermocouple measurement on supported models
- RTD measurement on supported models
- Diode and continuity testing
- DC voltage output
- DC current output
- Resistance output on HPC79+
- Frequency output on supported models
- Thermocouple output on supported models
- RTD output on HPC79+
- 24V loop power supply with loop current measurement
- Manual step current output
- 25% and 100% manual stepping
- Automatic step and automatic ramp current output
- Dual display for current output showing mA and percentage
- VFC voltage measurement for variable-frequency environments
- True RMS measurement on supported models
- Manual and automatic ranging on supported models
- Data Hold function
- Relative measurement
- Thermocouple cold-junction compensation
- Built-in backlight and flashlight
- IP65-rated protection on HPC78+ and HPC79+
- Auto power-off function
- Powered by 3 × AA batteries
The HPC Series includes the HPC77+, HPC78+, and HPC79+ process multimeter models. The instruments provide measurement functions including DC voltage, AC voltage, DC current, AC current, resistance, frequency, thermocouple, RTD, diode, continuity, and other process-related parameters depending on the model. Signal output capabilities include DC voltage and DC current, while the HPC79+ additionally supports resistance, frequency, thermocouple, and RTD output. The series supports manual stepping, automatic stepping, and automatic ramp current output, with dual display of current in mA and percentage values. A built-in 24V loop power supply allows engineers to power field transmitters while measuring loop current. Additional functions include VFC voltage measurement, true RMS measurement, data hold, relative measurement, cold-junction compensation, backlight, and flashlight. With battery-powered operation and rugged protection on applicable models, the HPC Series is suitable for industrial process calibration, transmitter troubleshooting, loop testing, and maintenance.
| Models | Available Models | HPC77+, HPC78+, HPC79+ |
| Display | Display Counts | 5000 counts (HPC77+); 6000 counts (HPC78+, HPC79+) |
| Backlight | Supported | |
| DC Voltage Measurement | HPC77+ Range | 50.00 V |
| HPC77+ Accuracy | ±(0.1% + 4) | |
| HPC78+/HPC79+ Range | 60 mV to 1000 V | |
| HPC78+/HPC79+ Accuracy | ±(0.2% + 4) | |
| AC Voltage Measurement | HPC77+ Range | 500.0 V |
| HPC77+ Accuracy | ±(1% + 10) | |
| HPC78+/HPC79+ Range | 6.000 V to 600.0 V | |
| HPC78+/HPC79+ Accuracy | ±(0.5% + 4) | |
| DC Current Measurement | HPC77+ Range | 50.00 mA |
| HPC78+/HPC79+ Range | 60.00 mA / 600.0 mA | |
| AC Current Measurement | HPC78+/HPC79+ Range | 60.00 mA / 600.0 mA |
| Resistance Measurement | HPC77+ Range | 500.0 Ω / 5.000 kΩ |
| HPC78+/HPC79+ Range | 600.0 Ω to 60.00 MΩ | |
| Frequency Measurement | HPC78+/HPC79+ Range | 10.0000 Hz to 10.0000 kHz |
| Accuracy | ±(0.02% + 4) | |
| Thermocouple Measurement | Supported Models | HPC78+, HPC79+ |
| Supported Types | K, E, J, T, N, R, S, B | |
| Accuracy | ±(0.5% + 2°C) | |
| RTD Measurement | Supported Models | HPC78+, HPC79+ |
| Supported Types | Cu50, Pt100, Pt1000 | |
| Accuracy | ±(0.5% + 3°C) | |
| DC Voltage Output | HPC77+ Range | 10.00 V |
| HPC78+/HPC79+ Range | 100.00 mV / 1000.0 mV / 10.000 V | |
| Accuracy | ±(0.2% + 4) | |
| DC Current Output | HPC77+ Range | 20.00 mA |
| HPC78+/HPC79+ Range | 30.000 mA | |
| Accuracy | ±(0.2% + 4) | |
| Resistance Output | Supported Model | HPC79+ |
| Range | 400.0 Ω | |
| Accuracy | ±(0.2% + 4) | |
| Frequency Output | Supported Models | HPC78+, HPC79+ |
| Range | 100.0 Hz / 1.000 kHz / 5.00 kHz / 10.0 kHz | |
| Accuracy | ±(0.2% + 2) | |
| Thermocouple Output | Supported Models | HPC78+, HPC79+ |
| Supported Types | R, S, K, E, J, T, B, N | |
| Resolution | 0.1°C / 1°C | |
| Accuracy | ±(0.2% + 2°C) | |
| RTD Output | Supported Model | HPC79+ |
| Supported Types | Cu50, Pt100 | |
| Accuracy | ±(0.5% + 0.6°C) | |
| Loop Power | 24V Loop Supply | 24V loop power supply with loop current measurement |
| Current Output | Output Control | Manual step, automatic step, and automatic ramp |
| Dual Display | Simultaneous mA and percentage display | |
| Measurement | Measurement Speed | 2.5 readings/second; fast mode up to 20 readings/second on supported models |
| True RMS | Supported on HPC78+ and HPC79+ | |
| Bandwidth | 20 Hz to 1 kHz on supported models | |
| VFC | Supported | |
| Temperature | Cold-Junction Compensation | Supported on thermocouple-capable models |
| Safety | HPC77+ Safety | CAT IV 600 V |
| HPC78+/HPC79+ Safety | CAT III 1000 V; CAT IV 600 V | |
| Protection | Ingress Protection | IP65 on HPC78+ and HPC79+ |
| Power | Battery | 3 × 1.5 V AA batteries |
| Additional Functions | Functions | Data Hold, Relative Measurement, Auto Power Off, Flashlight |
| EMC | Electromagnetic Compatibility | IEC 61326-1, Group 2, Class B |
| Mechanical | Dimensions | 90 × 189 × 55 mm |
| Weight | Approximately 0.9 kg |
