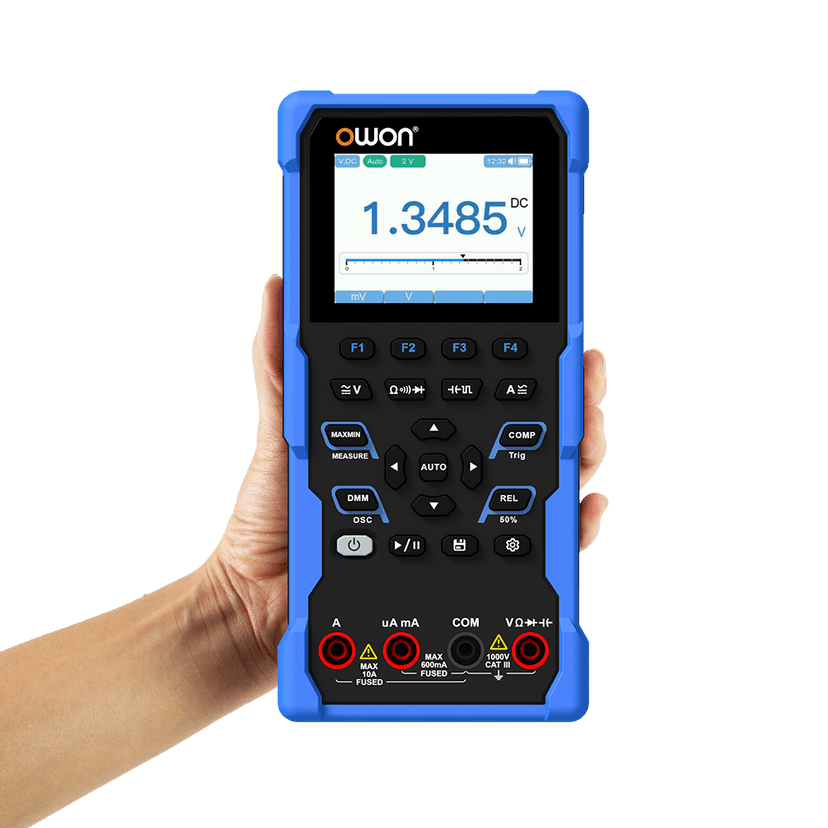

OWON HDS100 Series Oscilloscope Multimeter
Handheld Multimeters

OWON HDS100 Series Oscilloscope Multimeter

  • 2-in-1 instrument combining a digital multimeter and oscilloscope
  • 4½-digit multimeter
  • HDS160 provides up to 60,000-count display
  • HDS120 provides up to 20,000-count display
  • DC and AC voltage measurement
  • DC and AC current measurement
  • Resistance, capacitance, frequency, duty cycle, diode, and continuity testing
  • Automatic waveform measurements including Vmax, Vmin, Vp-p, Vavg, Vrms, and frequency
  • Intelligent probe detection
  • Auto-set function for time base, vertical amplitude, and trigger value
  • Single-channel oscilloscope
  • Maximum oscilloscope sampling rate of 5 MSa/s
  • 1 MHz analog bandwidth on ACV scale
  • Rechargeable 18650 lithium-ion battery
  • CAT III 1000 V safety compliance
  • High-voltage waveform measurement up to 1000 V DC + AC peak
  • 2.8-inch IPS LCD display
  • Dual-theme display for bright and dark environments
  • Full-key control design for simple operation
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The HDS100 Series includes the HDS160 and HDS120 models. Both models combine a digital multimeter with a single-channel oscilloscope and feature rechargeable 18650 lithium-ion battery operation. The multimeter functions include DC and AC voltage, DC and AC current, resistance, capacitance, frequency, duty cycle, diode, and continuity measurements. The HDS160 provides up to 60,000 counts, while the HDS120 provides up to 20,000 counts. The oscilloscope provides a maximum sampling rate of 5 MSa/s, 1 MHz analog bandwidth on the ACV scale, automatic waveform measurements, and auto-set functionality. Intelligent probe detection helps automatically select the appropriate measurement based on probe position. With CAT III 1000 V safety compliance and a maximum voltage limit of 1000 V DC + AC peak, the instrument is suitable for a wide range of electrical and field-service applications.

Specifications
ModelsAvailable ModelsHDS160, HDS120
MultimeterDisplay Counts60,000 counts (HDS160); 20,000 counts (HDS120)
DC VoltageHDS160 Range60 mV to 1000.0 V
HDS120 Range20 mV to 1000.0 V
AC VoltageHDS160 Range60 mV to 750.0 V
HDS120 Range20 mV to 750.0 V
DC CurrentHDS160 Range600 μA to 10 A
HDS120 Range200 μA to 10 A
AC CurrentMeasurementAC current measurement up to 10 A
ResistanceHDS160 Range600 Ω to 60 MΩ
HDS120 Range200 Ω to 100 MΩ
CapacitanceHDS160 Range6 nF to 60 mF
HDS120 Range2 nF to 20 mF
FrequencyHDS160 Range60 Hz to 60 MHz
HDS120 Range200 Hz to 20 MHz
Duty CycleMeasurement Range0.1% to 99.9%
DiodeDiode Test3.0000 V
ContinuityContinuity Test1000.0 Ω
OscilloscopeChannels1
Analog Bandwidth1 MHz, only on ACV scale
Maximum Sample Rate5.0 MSa/s
Time Base2.5 μs to 10 s/grid
Voltage Sensitivity30 mV to 500 V/grid
Current Sensitivity100 μA to 5 A/grid
Waveform MeasurementsVmax, Vmin, Vp-p, Vavg, Vrms, Frequency
Maximum Voltage1000 V DC + AC peak
Maximum Current15 A DC + AC peak
TriggerTrigger ModeAuto, Normal, Single
Trigger EdgeRising edge, Falling edge
PowerBattery18650 rechargeable lithium-ion battery
SafetySafety ComplianceCAT III 1000 V
DisplayDisplay2.8-inch LCD
ProtectionInput ProtectionSupported
MechanicalDimensions93 × 41.5 × 188 mm
WeightApproximately 0.35 kg
