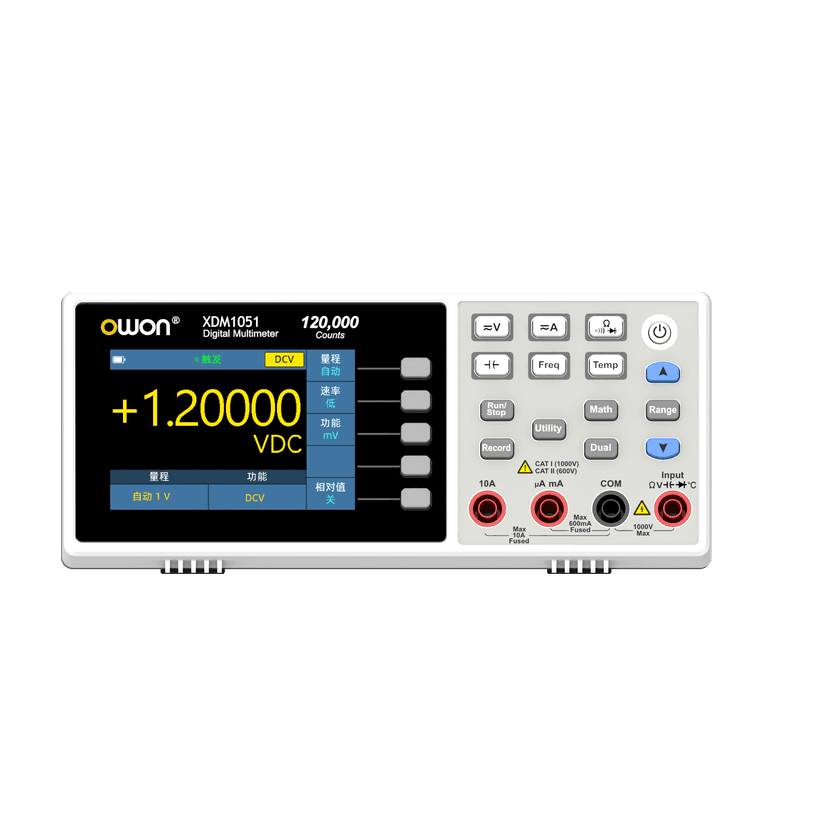

OWON 5½-Digit Bench-Type Digital Multimeter

  • 5½-digit resolution with up to 120,000 counts
  • Basic DC voltage accuracy as low as 0.05%
  • Measurement speed up to 85 readings/s
  • DC and True RMS AC voltage measurement
  • DC and True RMS AC current measurement
  • Resistance measurement up to 100 MΩ
  • Capacitance, frequency, diode, and continuity testing
  • Temperature measurement using K-type thermocouple and PT100
  • AC + Frequency (AC+Hz) measurement
  • Min, Max, Average, dB, dBm, and Relative math functions
  • Dual-display function for viewing two measurement results simultaneously
  • Built-in data logger supporting up to 1,000 records
  • USB Device or RS232 communication interface
  • SCPI support for automated test systems
  • 3.5-inch IPS color display with 480 × 320 resolution
  • XDM1051 supports AC power supply
  • XDM1251 features a built-in lithium battery
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The XDM1051 Series includes the XDM1051 and XDM1251 models. The instruments provide 5½-digit resolution with a maximum reading of 120,000 counts and basic DC voltage accuracy down to 0.05%. They support DC voltage, True RMS AC voltage, DC and True RMS AC current, resistance, capacitance, frequency, diode, continuity, and temperature measurements. Temperature measurements support K-type thermocouples and PT100 sensors. Additional functions include AC+Hz, Min, Max, Average, dB, dBm, and Relative measurements. The multimeter provides dual-display functionality, allowing two measurement results to be viewed simultaneously. A built-in data logger can store up to 1,000 measurement records, while USB Device or RS232 interfaces and SCPI commands enable PC communication and automated test-system integration.

Specifications
ModelsAvailable ModelsXDM1051, XDM1251
DisplayResolution5½ digits
Maximum Reading120,000 counts
Display3.5-inch IPS color display, 480 × 320
Dual DisplaySupported
DC VoltageMeasurement Range100.000 mV to 1000.00 V
Basic AccuracyAs low as 0.05% + 5 counts
AC VoltageTrue RMS AC Voltage500 mV to 750 V
Frequency Range20 Hz to 1 kHz
DC CurrentMeasurement Range100 μA to 10 A
AC CurrentTrue RMS AC Current500 μA to 10 A
ResistanceMeasurement Range100 Ω to 100 MΩ
DiodeDiode TestUp to 3.0000 V
ContinuityContinuity Test1000 Ω range with adjustable threshold
FrequencyFrequency Range10 Hz to 60 MHz
CapacitanceMeasurement Range50 nF to 50 mF
TemperatureK-Type Thermocouple-200°C to 1300°C
PT100-200°C to 800°C
MeasurementMeasurement SpeedUp to 85 readings/s
Math FunctionsMin, Max, Average, dB, dBm, Relative
Data LoggingRecord LengthUp to 1,000 points
ConnectivityCommunication InterfaceRS232 or USB Device
ControlRemote ControlSCPI supported
PowerPower SupplyAC power supply (XDM1051); built-in lithium battery (XDM1251)
MechanicalDimensions200 × 86.5 × 64 mm (W × H × D)
