DC Power Supply

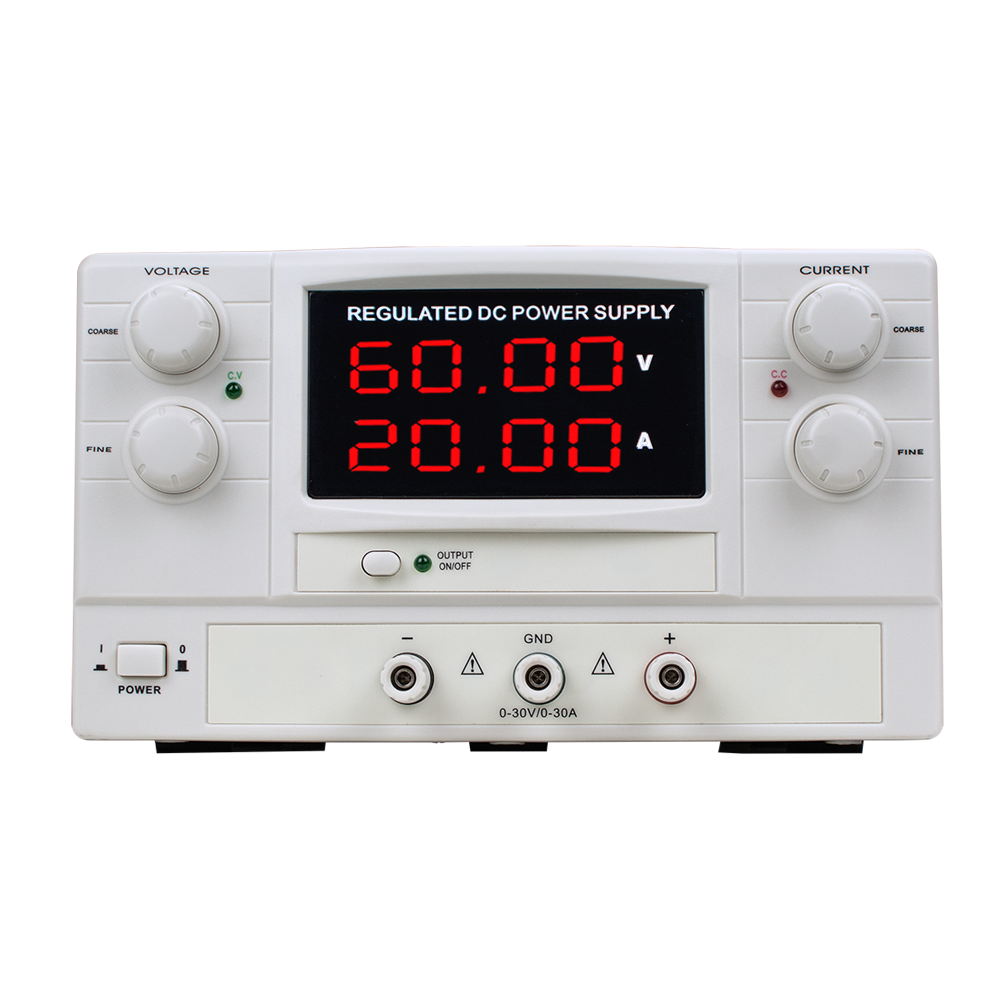

P50000 Series Single-Channel High-Power Linear DC Regulated Power Supply
- Maximum rated power of 1200W with continuous full-power stable operation
- Wide adjustable output range: 0-200V voltage and 0-30A current
- 4-digit LED display for real-time voltage and current monitoring
- Constant voltage and constant current functionality with automatic CC / CV switching
- Voltage and current preset function
- Independent output switch control for enhanced testing safety and equipment protection
- Ultra-clean power output with ripple and noise as low as 1.5mV
- Load regulation: ≤0.05% + 2mV
- Line regulation: ≤0.05% + 2mV
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The P50000 Series provides a maximum rated power of 1200W and supports continuous full-power stable operation. With a wide adjustable output range of 0-200V and 0-30A, it is suitable for demanding electronic testing, R&D, production, and equipment validation. The power supply features constant voltage and constant current modes with automatic CC / CV switching, voltage/current preset, independent output control, and a 4-digit LED display for real-time monitoring. Its ultra-clean linear output delivers ripple and noise as low as 1.5mV, making it ideal for applications that require stable and precise DC power.
Specifications
| Power | Maximum Rated Power | 1200W |
| Output | Voltage Range | 0-200V |
| Current Range | 0-30A | |
| Display | Display Type | 4-digit LED display |
| Operation | Working Modes | Constant Voltage / Constant Current with automatic CC / CV switching |
| Regulation | Load Regulation | ≤0.05% + 2mV |
| Line Regulation | ≤0.05% + 2mV | |
| Noise | Ripple and Noise | ≤1.5mV |
| Accuracy | Display Accuracy | ≤ ±(0.1% + 5d) |
| Resolution | Voltage Display Resolution | 10mV |
| Current Display Resolution | 1mA | |
| Response | Recovery Time | ≤100μs |
| Input | Power Supply Voltage | AC 110V / 220V ±10%, 50Hz / 60Hz |
| Environment | Working Conditions | 0-40℃, ≤85%RH |
| Storage Conditions | -10℃-80℃, ≤80%RH | |
| Dimensions | Size | 205 × 155 × 305mm for ≤600W models, 255 × 155 × 465mm for >600W models |
