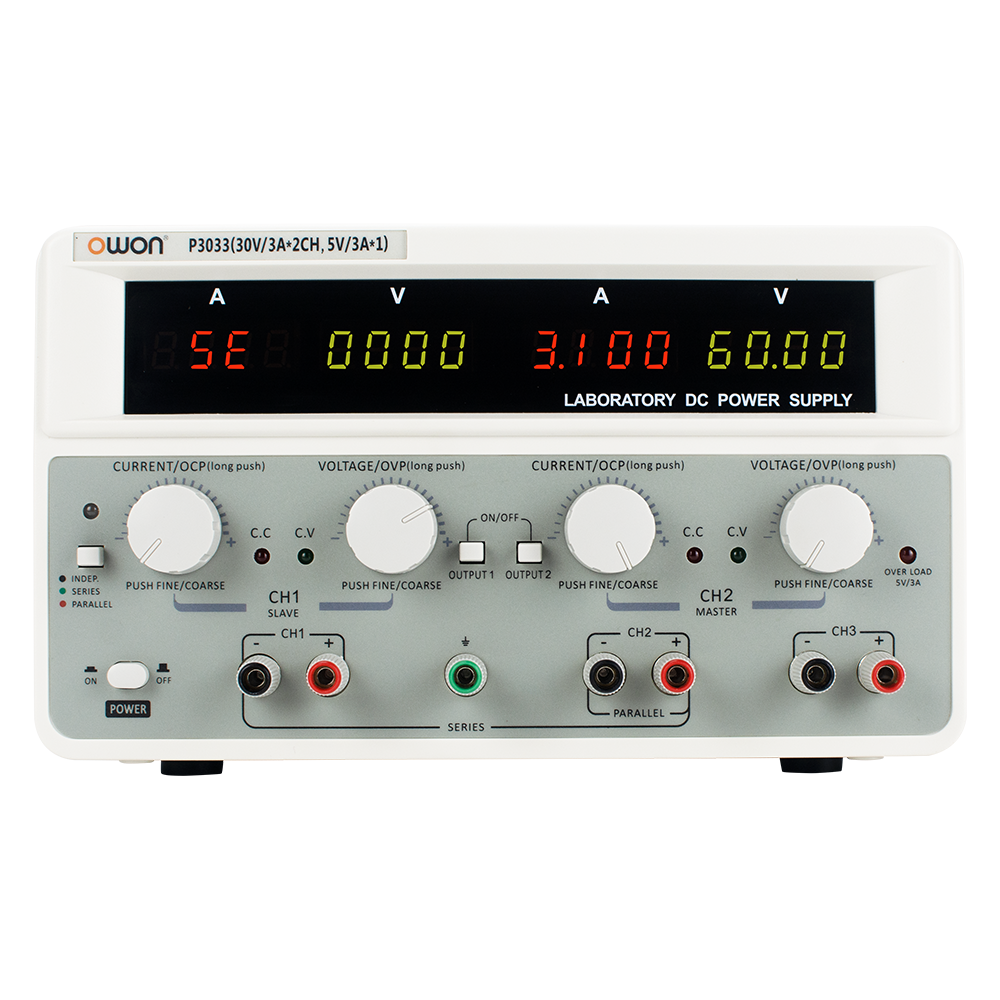

P3000 Series 3CH DC Power Supply
- Dual-channel independent adjustable output
- 10mV / 1mA maximum output resolution
- Configurable OVP/OCP protection thresholds for over-voltage and over-current protection
- Soft-start circuit design with low inrush current for enhanced reliability
- Series and parallel configuration support with direct display of combined output voltage and current
- Buzzer on/off function
- Adjustable voltage and current range limits to prevent misuse
- One-touch restoration to default settings
- Fixed CH3 output: 5V / 3A
- Low ripple and noise: ≤2mVrms voltage ripple and ≤5mArms current ripple
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The P3000 Series 3CH DC Power Supply provides two independently adjustable output channels and one fixed 5V / 3A output channel. It supports precise voltage and current adjustment with up to 10mV / 1mA resolution, making it suitable for circuit testing, electronic development, maintenance, and production environments. The series includes configurable OVP/OCP protection, soft-start circuitry for low inrush current, adjustable voltage/current range limits, buzzer control, and one-touch restoration to default settings. With series and parallel configuration support, users can combine outputs and directly view the combined voltage and current, improving flexibility for different testing requirements.
Specifications
| Model | Available Models | P3033, P3053 |
| Channels | Output Channels | 3 channels: CH1, CH2, CH3 |
| Rated Output | P3033 CH1 / CH2 Voltage | 0-30V |
| P3033 CH1 / CH2 Current | 0-3A | |
| P3033 CH3 Output | 5V / 3A | |
| P3053 CH1 / CH2 Voltage | 0-30V | |
| P3053 CH1 / CH2 Current | 0-5A | |
| P3053 CH3 Output | 5V / 3A | |
| Load Regulation | Voltage Regulation | ≤0.01% + 5mV, CH3 ≤15mV |
| Current Regulation | ≤0.1% + 5mA | |
| Power Regulation | Voltage Regulation | ≤0.01% + 5mV |
| Current Regulation | ≤0.1% + 5mA | |
| Resolution | Setting Resolution | Voltage: 10mV, Current: 1mA |
| Readback Resolution | Voltage: 10mV, Current: 1mA | |
| Accuracy | Setting Accuracy | Voltage: ≤0.03% + 10mV, Current: ≤0.1% + 5mA |
| Readback Accuracy | Voltage: ≤0.03% + 10mV, Current: ≤0.1% + 5mA | |
| Parallel Mode | Power Efficiency | ≤0.01% + 5mV |
| Load Efficiency | P3033: ≤0.01% + 5mV, P3053: ≤0.02% + 5mV | |
| Series Mode | Power Efficiency | ≤0.01% + 5mV |
| Load Efficiency | P3033: ≤0.01% + 5mV, P3053: ≤0.02% + 5mV | |
| Noise | Voltage Ripple / Noise | ≤2mVrms |
| Current Ripple / Noise | ≤5mArms | |
| Protection | Protection Functions | OVP / OCP configurable protection |
| Operation | Series / Parallel Support | Supports series and parallel configuration with direct display of combined output voltage and current |
| Soft Start | Soft-start circuit with low inrush current | |
| Buzzer Control | Buzzer on/off function | |
| Default Restore | One-touch restoration to default settings | |
| Environment | Working Temperature | 0-40℃, ≤80%RH |
| Dimensions | Size | 250 × 150 × 330mm |
| Weight | P3033 Device Weight | ≈8kg |
| P3053 Device Weight | ≈9kg | |
| Warm-up | Specification Condition | Instrument must operate continuously for more than 30 minutes at the specified operating temperature to achieve listed specifications |
