High Power Programmable DC Series

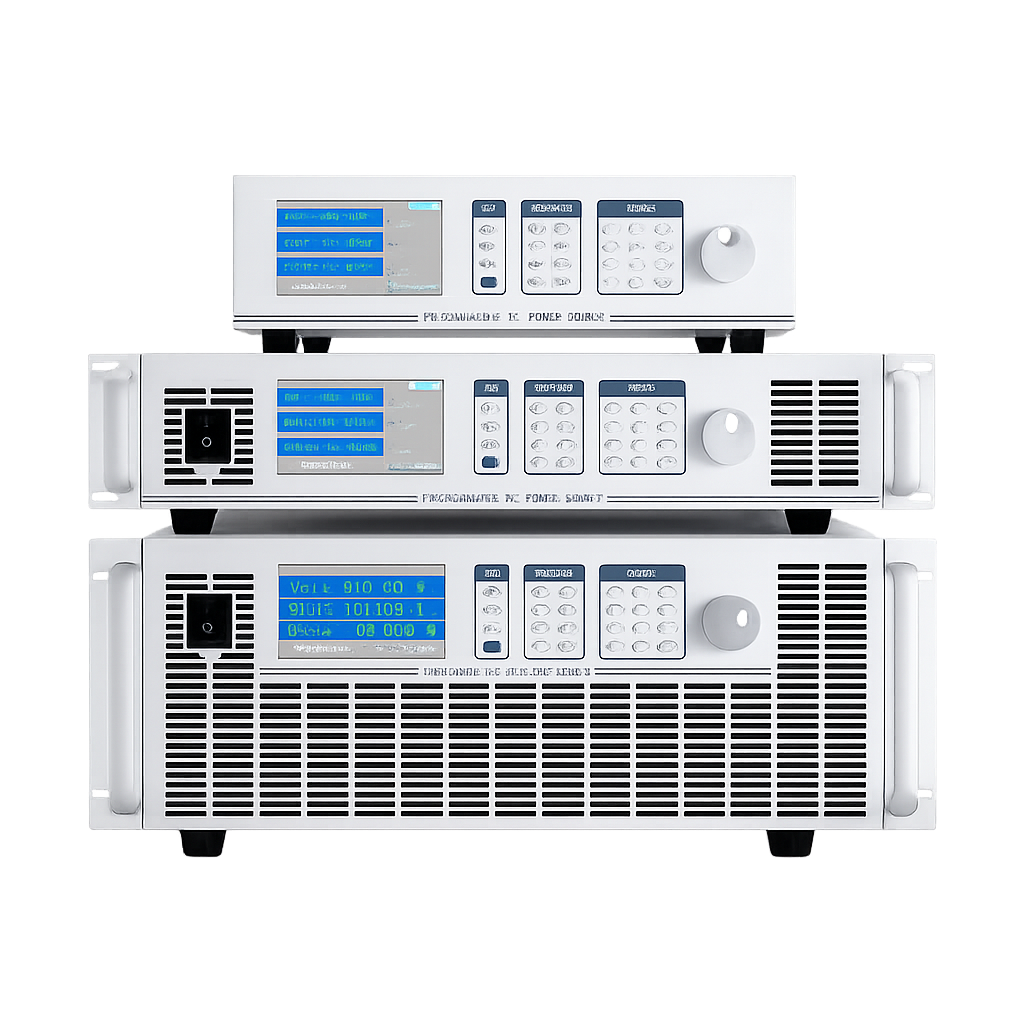

OWP-H Series High Power DC Power Supply
- 2U/3U standard embedded height
- High output resolution: 1mV / 0.1mA
- Constant power output for wider voltage and current range
- SCOPE display mode for direct curve reading
- CV / CC priority with adjustable rise/fall time
- List edit function for 50 group timed output
- Function generating for dynamic waveforms
- Remote voltage compensation
- Parallel capability up to 128KW
- 4.3" TFT LCD display
- Standard RS485 and optional dry node/analog interfaces
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
This series offers a wide range of power levels from 1KW to 8KW in a compact 2U/3U rack-mount chassis. It features a unique constant power output architecture, allowing for a broader range of voltage and current combinations at the rated power. The SCOPE mode provides visual feedback of power trends, while the parallel operation allows for massive power scaling up to 128KW for heavy-duty applications.
Specifications
| Power | Output Range | 1KW - 8KW (Expandable to 128KW) |
| Accuracy | Voltage Accuracy | ＜0.1% of rated value |
| Resolution | Setting Resolution | 1mV / 0.1mA |
| Interface | Communication | RS485 (Standard), CAN, RS232 |
| Protection | Safety | OVP, OCP, OLP, OTP |
