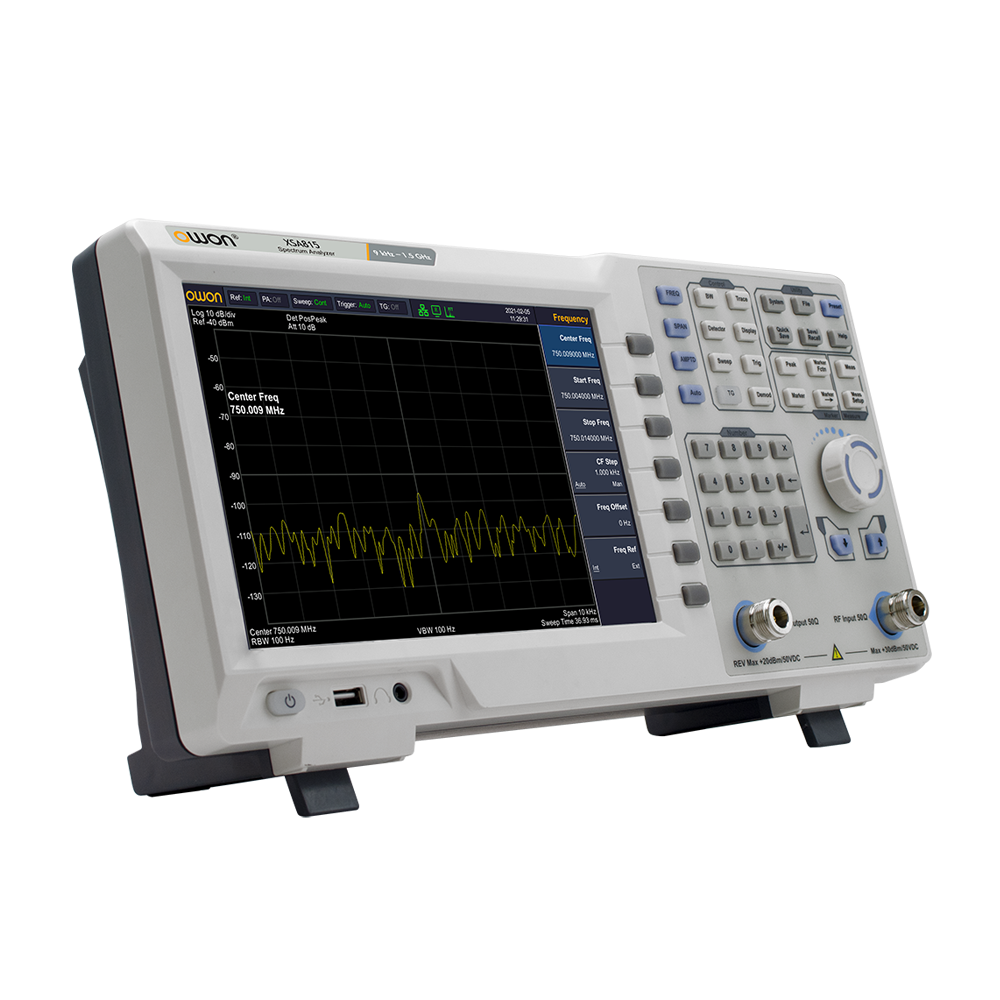

OWON XSA800 Series Spectrum Analyzer
- Frequency range 9 kHz - 1.5 GHz
- -160 dBm displayed average noise level (preamp on)
- Phase noise < -80 dBc/Hz @ 10 kHz offset
- Total amplitude accuracy < 0.7 dB
- 1 Hz minimum resolution bandwidth
- EMI pre-compliance testing and optional EMC software
- Optional tracking generator
- 9-inch TFT LCD display with 1280 x 800 resolution
- Multiple interfaces: USB Host, USB Device, LAN, earphone, HDMI
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The XSA800 Series is engineered for bench-level RF signal analysis with models covering 9 kHz to 500 MHz, 1 GHz, and 1.5 GHz. It offers high sensitivity, accurate amplitude measurement, and advanced trace functions, making it suitable for spectrum monitoring, pre-compliance EMI work, and general laboratory measurement tasks.
Specifications
| Frequency | Model Range | XSA805 9 kHz-500 MHz; XSA810 9 kHz-1 GHz; XSA815 9 kHz-1.5 GHz |
| Resolution | Frequency Resolution | 1 Hz |
| Bandwidth | RBW | 1 Hz to 1 MHz (1-3-5-10 sequence) |
| Amplitude | Display Range | DANL to +20 dBm |
| DANL Preamp Off | -95 dBm to -140 dBm | |
| DANL Preamp On | -135 dBm to -160 dBm | |
| Phase Noise | 10 kHz Offset | < -80 dBc/Hz |
| Tracking Generator | Optional Range | 100 kHz to 1.5 GHz |
| Display | Screen | 9 inch TFT LCD 1280 x 800 |
| Interface | Ports | USB Host, USB Device, LAN, earphone, HDMI |
| Physical | Dimensions | 375 × 185 × 120 mm |
| Weight | Approx. 3.7 kg |
